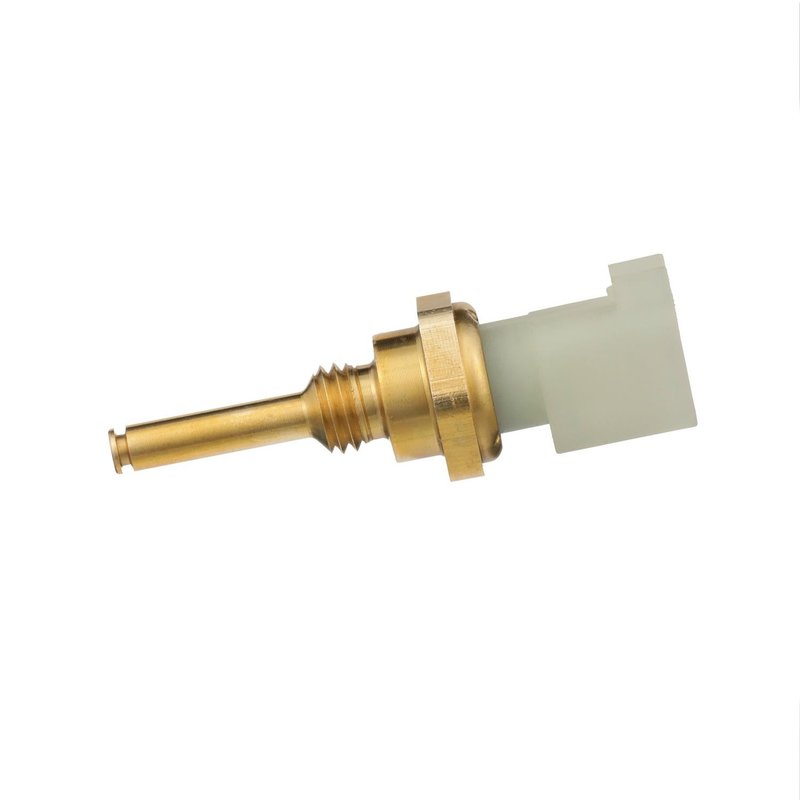

Standard Ignition TS-653 Engine Cylinder Head Temperature Sensor

Overview of Standard Ignition Engine Cylinder Head Temperature Sensor

The Standard Ignition TS-653 Engine Cylinder Head Temperature Sensor is designed for precise temperature monitoring in select Ford and Lincoln vehicles. This screw-in sensor features a female square plug-in connector and is engineered to deliver reliable performance in emission control systems.

• Screw-in attachment method for secure installation
• Female connector with one square-shaped plug-in interface
• Two male blade terminals for stable electrical connection
• Operates on 12-volt electrical systems
• Compatible with multiple Ford and Lincoln models including F-150, Explorer, Mustang, and Navigator

Detailed Product Description

The TS-653 Engine Cylinder Head Temperature Sensor by Standard Ignition is a critical component in the emission control system, providing accurate temperature readings of the engine cylinder head. Its screw-in design ensures a tight fit, reducing the risk of leaks or sensor displacement. The sensor’s female connector with a single square plug-in shape allows for straightforward electrical connection, while the two male blade terminals provide a reliable interface for the vehicle’s wiring harness. Operating at 12 volts, this sensor is compatible with a wide range of Ford and Lincoln vehicles, including popular models such as the Ford Edge, Escape, F-250 Super Duty, Lincoln MKX, and Taurus X.

Applications and Problem Resolution

This sensor is used to monitor engine cylinder head temperature, which is essential for optimal engine management and emission control. It helps address issues such as:

• Inaccurate engine temperature readings causing poor fuel efficiency
• Engine overheating due to faulty temperature monitoring
• Emission control system malfunctions triggered by sensor failure
• Check engine light activation related to temperature sensor faults
• Engine performance irregularities linked to temperature sensor issues

Installation Notes and Tips

Installation of the Standard Ignition TS-653 sensor requires a screw-in method, ensuring a secure and leak-free fit. When replacing the sensor, verify the connector type matches the female square plug-in design with two male blade terminals. It is recommended to disconnect the battery before installation to prevent electrical shorts. Use appropriate torque specifications to avoid damage to the sensor or cylinder head threads. Ensure the wiring harness is properly connected to the sensor’s terminals for accurate signal transmission.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and durability. The TS-653 sensor undergoes rigorous testing to verify electrical and mechanical integrity. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship, providing confidence in the sensor’s reliability for Ford and Lincoln vehicle applications.
