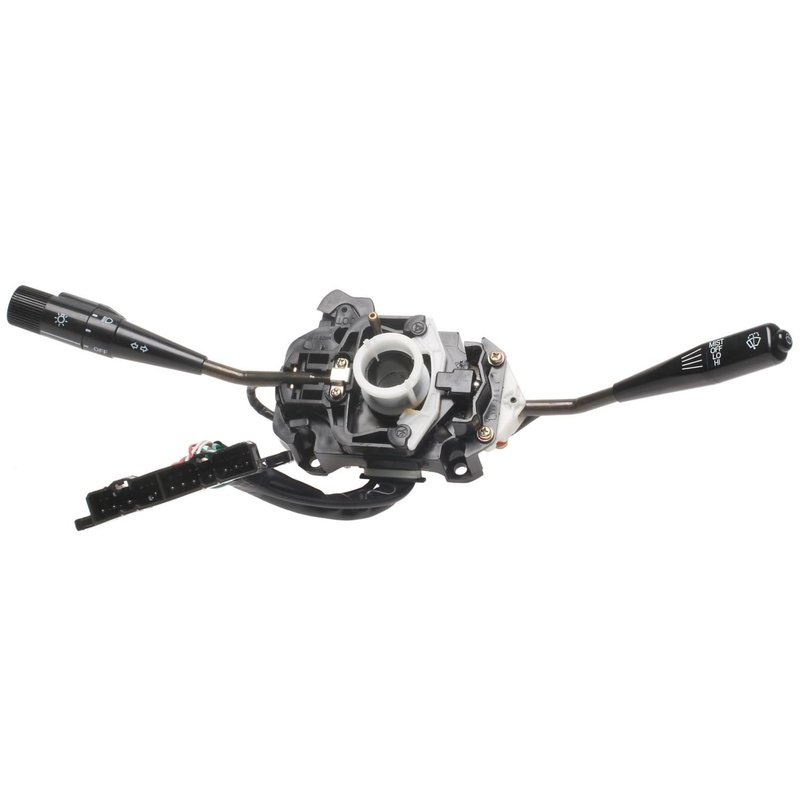

Standard Ignition TW-35 Headlight Dimmer Switch
| Brand | Standard Ignition TW-35 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Number Of Wiper Speed Settings | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Toyota · 10 vehicles |
Bolt-on installation. Female rectangular connector for a straightforward electrical connection.
Combination switch. Controls headlights, turn signals, and windshield wiper functions in one unit.
New part. Built with 20 pin terminals for a clean, reliable connection.
Cross-references Standard Ignition TW-35, Total Stopping Solutions S705 and 88923870 for the same application. See all 6.
Headlight Dimmer Switch for Toyota Multifunction Control
Standard Ignition TW-35 is a new headlight dimmer switch and combination switch assembly for select Toyota applications. It combines lighting, turn signal, windshield washer, and wiper control functions in one bolt-on unit with a female rectangular connector and 12-volt electrical design.
Compatible With 1980-1983 Toyota Corolla and 1982-1983 Toyota Pickup applications listed below, including dual lever multifunction switch assemblies and models without a tilt wheel where noted.
Key Features
- Part number TW-35 from Standard Ignition
- Bolt-on attachment method for direct replacement use
- Combination switch function with headlight dimmer control
- Main light operator, latching high beam operator, and momentary high beam flasher included
- Turn signal control and directional indicator function included
- Windshield washer spray and windshield wiper speed control included
- Female rectangular connector with 2 cavities, 20 terminals, and pin terminals
- 12-volt electrical design
- New replacement part
Detailed Description
Standard Ignition TW-35 is built as a multifunction steering column switch for Toyota vehicles that use a dual lever combination switch assembly. It supports headlight dimming, turn signal operation, main lighting control, windshield washer spray, and windshield wiper speed selection in one integrated unit. The switch uses a single female rectangular connector and bolt-on mounting for service replacement.
This part cross-references Total Stopping Solutions S705 for the same application. Standard Ignition TW-35 is listed for Fits 1980-1982 Toyota Corolla, N/A and Fits 1982-1983 Toyota Pickup, N/A, with notes for dual lever multifunction switch assembly and no tilt wheel where specified. It is also listed for Fits 1982-1983 Toyota Corolla, N/A.
Common Problems It Can Address
- Headlights that do not switch between low and high beam
- Turn signals that fail to operate from the column switch
- Windshield wiper speed control that is intermittent or inoperative
- Washer spray control that does not activate from the switch
- Worn or damaged multifunction switch contacts
Installation Notes and Tips
Verify connector style, terminal count, and vehicle configuration before installation. This TW-35 switch is specified for Toyota Corolla and Toyota Pickup applications with the listed steering column and trim notes, including no tilt wheel on certain Pickup models and the dual lever multifunction switch assembly design. Confirm the original switch layout and function set match the replacement before service.
Quality Assurance
Standard Ignition supplies this as a new electrical replacement part for service use. Confirm fitment against the vehicle listing and original switch configuration before installation.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1983 | Toyota | Corolla | Sedan | N/A | Dual Lever Multifunction Switch Assembly |
| 1983 | Toyota | Corolla | Wagon | N/A | Dual Lever Multifunction Switch Assembly |
| 1983 | Toyota | Pickup | — | N/A | w/o Tilt Wheel; Dual Lever Multifunction Switch Assembly |
| 1982 | Toyota | Corolla | Sedan | N/A | Dual Lever Multifunction Switch Assembly |
| 1982 | Toyota | Corolla | Wagon | N/A | Dual Lever Multifunction Switch Assembly |
| 1982 | Toyota | Corolla | — | N/A | Intermittent wipers feature not included |
| 1982 | Toyota | Pickup | — | N/A | w/o Tilt Wheel; From 8/81; Dual Lever Multifunction Switch Assembly |
| 1982 | Toyota | Pickup | — | N/A | w/o Tilt Wheel; Dual Lever Multifunction Switch Assembly |
| 1981 | Toyota | Corolla | — | N/A | Intermittent wipers feature not included |
| 1980 | Toyota | Corolla | — | N/A | Intermittent wipers feature not included |
