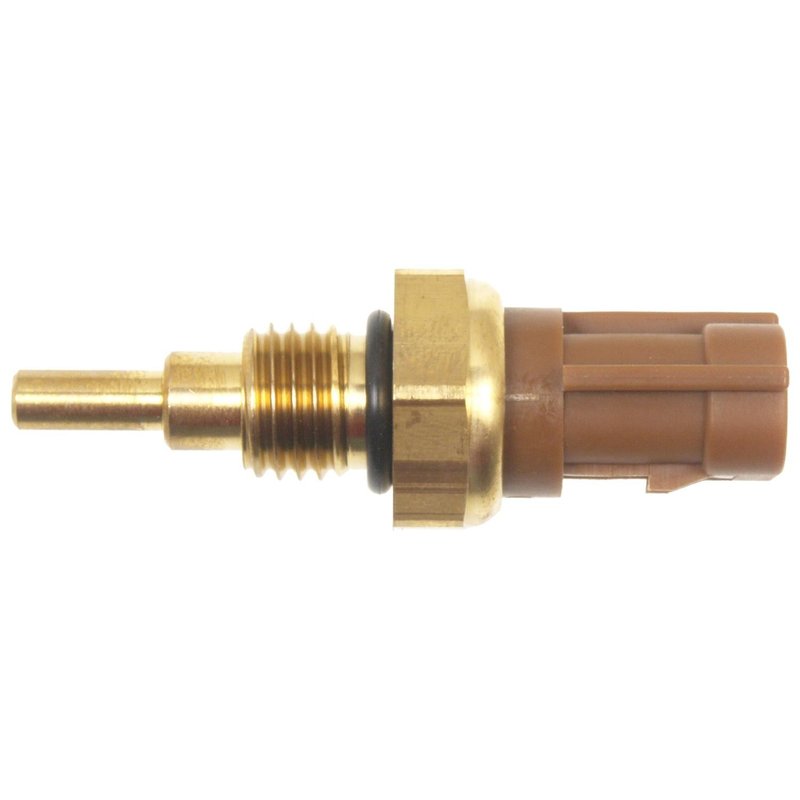

Standard Ignition TX144 Engine Coolant Temperature Sensor
| Brand | Standard Ignition TX144 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Connector Type | Plug In |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Suzuki · 20 vehicles |
Bolt-on installation. Plug-in coolant temperature sensor with a single connector.
Compact sensor design. Rectangular connector and two blade terminals for a secure connection.
Durable construction. Metal and plastic finish in white and bronze.
Cross-references Focus Auto Parts 93003, Standard Ignition TX144 and 1365073H00 for the same application. See all 6.
Engine Coolant Temperature Sensor for Suzuki Applications
Standard Ignition TX144 is an engine coolant temperature sensor built for direct replacement in select Suzuki vehicles. It uses a bolt-on attachment, a rectangular plug-in connector, and a 2-blade terminal layout to match the original-style electrical connection.
Key Features
- Engine coolant temperature sensor for cooling system and engine management input
- Bolt-on attachment method for secure mounting
- Female rectangular connector with 1 connector and 1 port
- 2 male blade terminals for the specified vehicle connection
- Metal and plastic construction with white and bronze finish
- Standard Ignition TX144 replacement part number for catalog matching
Detailed Description
This Standard Ignition TX144 coolant temperature sensor is used to report engine coolant temperature to the vehicle control system. Accurate coolant temperature data supports proper fuel delivery, idle strategy, and temperature-related engine operation. It is listed for 2006-2013 Suzuki Grand Vitara, 2007-2013 Suzuki SX4, 2012 Suzuki SX4 Crossover, and 2008-2011 Suzuki Swift. This part cross-references Focus Auto Parts 93003 for the same application.
What This Sensor Helps Address
- Incorrect coolant temperature readings
- Temperature-related warning lights or diagnostic trouble codes
- Rough idle or drivability issues tied to coolant sensor input
- Hard starting when the engine management system receives inaccurate temperature data
- Cooling system control concerns caused by a faulty sensor signal
Installation Notes and Tips
Verify connector shape, terminal style, and mounting style before installation. Confirm the vehicle application by year and model, including 2006-2013 Suzuki Grand Vitara and 2007-2013 Suzuki SX4, before replacing the sensor. Inspect the connector and wiring for corrosion or damage so the new sensor can communicate properly with the engine control system.
Quality Assurance
Standard Ignition is a recognized aftermarket brand for electrical and engine management components. TX144 is built to match the listed connector and mounting specifications for the confirmed Suzuki applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2013 | Suzuki | SX4 | — | — | N/A | — |
| 2012 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2012 | Suzuki | SX4 | — | — | N/A | — |
| 2012 | Suzuki | SX4 Crossover | — | — | N/A | — |
| 2011 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2011 | Suzuki | Swift | — | — | N/A | — |
| 2011 | Suzuki | SX4 | — | — | N/A | — |
| 2010 | Suzuki | Grand Vitara | 2.4L | L4 | N/A | — |
| 2010 | Suzuki | Swift | — | — | N/A | — |
| 2010 | Suzuki | SX4 | — | — | N/A | — |
| 2009 | Suzuki | Grand Vitara | 2.4L | L4 | N/A | — |
| 2009 | Suzuki | Swift | — | — | N/A | — |
| 2009 | Suzuki | SX4 | — | — | N/A | — |
| 2008 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2008 | Suzuki | Swift | — | — | N/A | — |
| 2008 | Suzuki | SX4 | — | — | N/A | — |
| 2007 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2007 | Suzuki | SX4 | — | — | N/A | — |
| 2006 | Suzuki | Grand Vitara | — | — | N/A | — |
