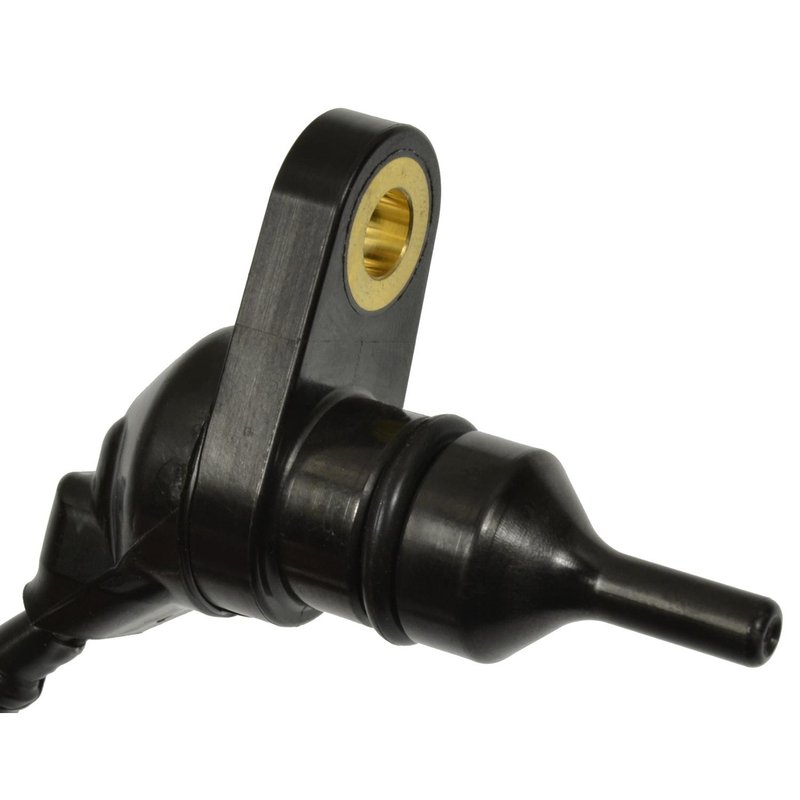

Standard Ignition TX252 Automatic Transmission Fluid Temperature Sensor

Brand Standard Ignition TX252
Attachment Method Plug-in
Bend Angle (Deg.) 45
Color/Finish Black
Connector Gender Female
Connector Quantity 1
Connector Shape Rectangular
Connector Type Plug in
Contact Terminal Material Plastic
Contents Sensor
Dust Shield Included No
Length - Inches 2.18
Material Plastic
Number Of Splice Connectors Includ 0
Number of wires 2
Splice Connectors Included No
Terminal Gender Female
Terminal Quantity 2
Terminal Type Blade
Voltage 12
Water Resistant No
Weatherproof Sealed No
Wire Gauge (ga) 20
Wiring Harness Included Yes
Wiring Harness Length (in) 7.5
Wiring Harness Length (mm) 190.5
Fits Acura · 24 vehicles

Plug-in design. Makes installation straightforward with a simple connector connection.

Wiring harness included. Comes ready for a cleaner, faster sensor replacement.

Plastic construction. Lightweight sensor body with a black finish.

Cross-references Four Seasons 76145, Standard Ignition TX252 and 5S9603 for the same application. See all 9.

$127.75Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $127.75
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Automatic Transmission Fluid Temperature Sensor Overview

Standard Ignition TX252 is an automatic transmission fluid temperature sensor built with a plug-in attachment method, a rectangular female connector, and a 2-wire blade terminal design. It uses a 45-degree bend angle, a black plastic housing, and includes a wiring harness for a direct electrical connection.

Compatible With Acura MDX, TL, ZDX, and RDX applications listed below, TX252 supports accurate transmission fluid temperature monitoring for vehicles that rely on precise sensor input. The Standard Ignition TX252 is a practical replacement choice when servicing transmission sensor faults on Acura rear differential applications.

Key Features

  • Automatic transmission fluid temperature sensor for transmission electronics service
  • Plug-in attachment method with 1 rectangular female connector
  • 2-wire, 2-terminal blade configuration for straightforward connection
  • Black plastic construction with a 45-degree bend angle
  • Includes wiring harness with 7.5-inch lead length
  • 12-volt electrical specification
  • Standard Ignition TX252 cross-references Four Seasons 76145 for the same application

Detailed Description

Standard Ignition TX252 is engineered as an automatic transmission fluid temperature sensor with a compact 2.18-inch body and plug-in connector style. The sensor uses a female rectangular connector, plastic contact terminal material, and a 20-gauge two-wire harness to support a secure electrical interface. This part number, TX252, is listed for Acura MDX, TL, ZDX, and RDX rear differential applications across the model years shown below.

Fits 2007-2015 Acura MDX, N/A, At Rear Differential. Fits 2009 and 2011-2014 Acura TL, N/A, At Rear Differential. Fits 2010-2013 Acura ZDX, N/A, At Rear Differential. Fits 2007-2012 Acura RDX, N/A, At Rear Differential. If you are searching for TX252 for Acura MDX or TX252 for Acura TL rear differential service, this listing matches the confirmed vehicle coverage.

Common Issues This Sensor Can Address

  • Transmission temperature signal faults
  • Illumination of transmission-related warning indicators
  • Erratic or inaccurate fluid temperature readings
  • Electrical connection problems at the sensor harness
  • Service replacement for a damaged or worn temperature sensor

Installation Notes and Tips

Verify the connector shape, terminal count, and harness style before installation. Confirm the rear differential application and match the vehicle year and model exactly to the fitment list. Inspect the mating connector for corrosion, bent terminals, or damaged locking tabs before plugging in the new sensor.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and engine management components. TX252 is built to match the listed connector and harness specifications for the confirmed Acura applications.

This part fits 24 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelNotes
2015AcuraMDXAt Rear Differential
2014AcuraMDXAt Rear Differential
2014AcuraTLAt Rear Differential
2013AcuraMDXAt Rear Differential
2013AcuraTLAt Rear Differential
2013AcuraZDXAt Rear Differential
2012AcuraMDXAt Rear Differential
2012AcuraRDXAt Rear Differential
2012AcuraTLAt Rear Differential
2012AcuraZDXAt Rear Differential
2011AcuraMDXAt Rear Differential
2011AcuraRDXAt Rear Differential
2011AcuraTLAt Rear Differential
2011AcuraZDXAt Rear Differential
2010AcuraMDXAt Rear Differential
2010AcuraRDXAt Rear Differential
2010AcuraZDXAt Rear Differential
2009AcuraMDXAt Rear Differential
2009AcuraRDXAt Rear Differential
2009AcuraTLAt Rear Differential
2008AcuraMDXAt Rear Differential
2008AcuraRDXAt Rear Differential
2007AcuraMDXAt Rear Differential
2007AcuraRDXAt Rear Differential
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 76145Standard Ignition — TX2525S960372-274248160RWG003SU11065TS5862WT5262WTA1557
