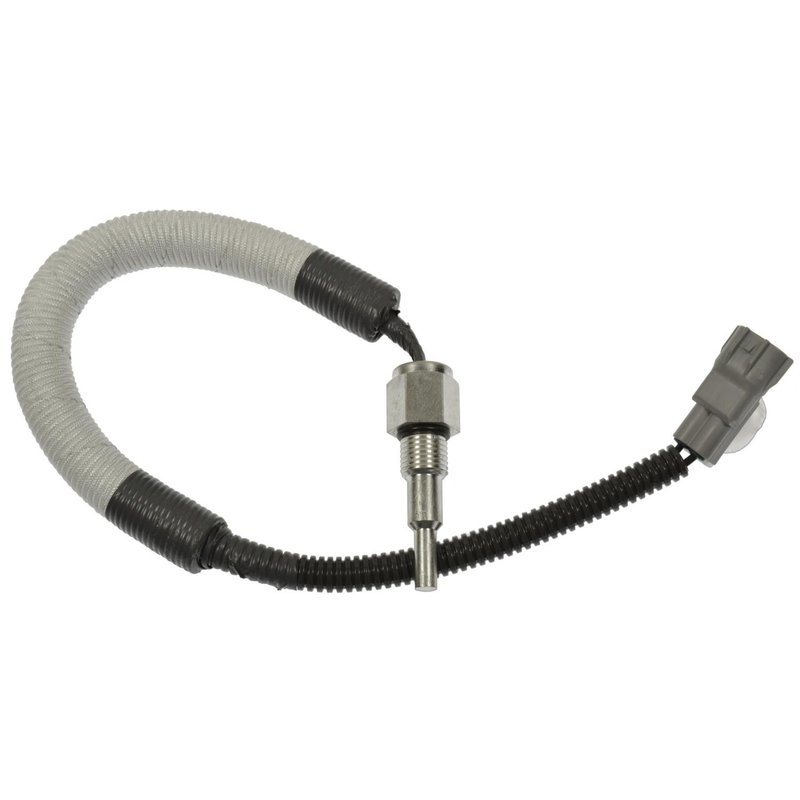

Standard Ignition TX255 Automatic Transmission Fluid Temperature Sensor

Overview of Standard Ignition TX255 Transmission Sensor

The Standard Ignition TX255 Automatic Transmission Fluid Temperature Sensor is designed for precise monitoring of transmission fluid temperature in Toyota 4Runner and Tacoma models. This plug-in sensor ensures accurate temperature readings to help maintain optimal transmission performance.

• Compatible with Toyota 4Runner and Tacoma vehicles

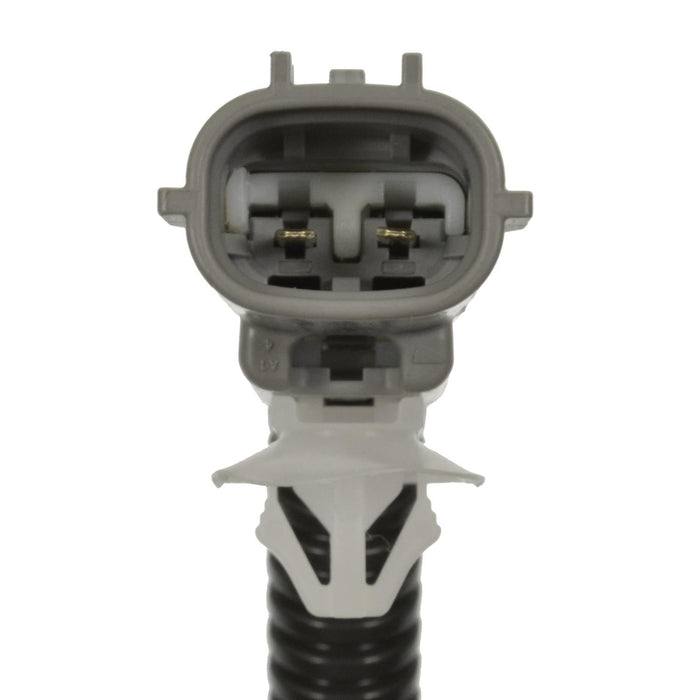

• Plug-in attachment method with a rectangular female connector
• Straight bend angle for easy installation
• Durable plastic construction with metal contact terminals
• Includes a 16-inch wiring harness with 18-gauge wires
• Operates on 12 volts with two blade-type male terminals

Detailed Product Description

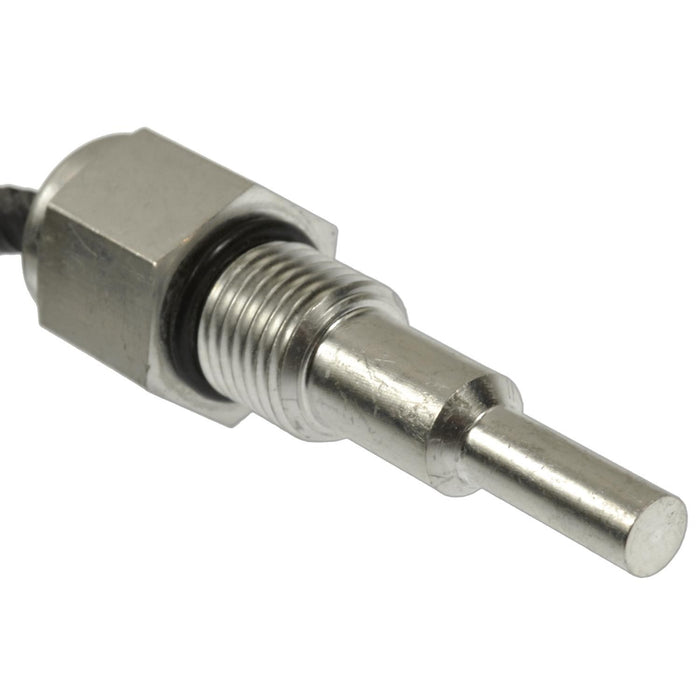

The TX255 sensor from Standard Ignition is engineered to provide reliable transmission fluid temperature data for Toyota 4Runner and Tacoma models. Featuring a plug-in attachment method, the sensor connects via a single rectangular female connector, ensuring a secure and straightforward installation. The sensor body is made of durable plastic, measuring 2.61 inches in length, and incorporates metal contact terminals for consistent electrical conductivity. The wiring harness included is 16 inches (406.4 mm) long and uses 18-gauge wire, supporting a 12-volt electrical system. The sensor has two blade-type male terminals, designed to fit precisely with the connector for optimal signal transmission.

Common Applications and Issues Addressed

• Monitors automatic transmission fluid temperature to prevent overheating
• Helps diagnose transmission shifting problems related to temperature fluctuations
• Supports transmission control module in maintaining proper fluid viscosity
• Prevents potential transmission damage caused by inaccurate temperature readings
• Assists in maintaining fuel efficiency by ensuring transmission operates within ideal temperature range

Installation Notes and Tips

Installation of the Standard Ignition TX255 sensor is straightforward due to its plug-in design and straight bend angle. Ensure the vehicle is turned off and cooled down before beginning installation. Disconnect the battery to avoid electrical shorts. Carefully unplug the old sensor connector and remove the sensor. Connect the new sensor using the included wiring harness, making sure the rectangular female connector is securely attached to the male terminals. Verify the wiring harness length is sufficient for your vehicle’s setup. After installation, clear any transmission-related error codes and test drive the vehicle to confirm proper sensor operation.

Quality Assurance and Warranty

Standard Ignition manufactures the TX255 sensor to meet or exceed OEM specifications for Toyota 4Runner and Tacoma models. The sensor undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
