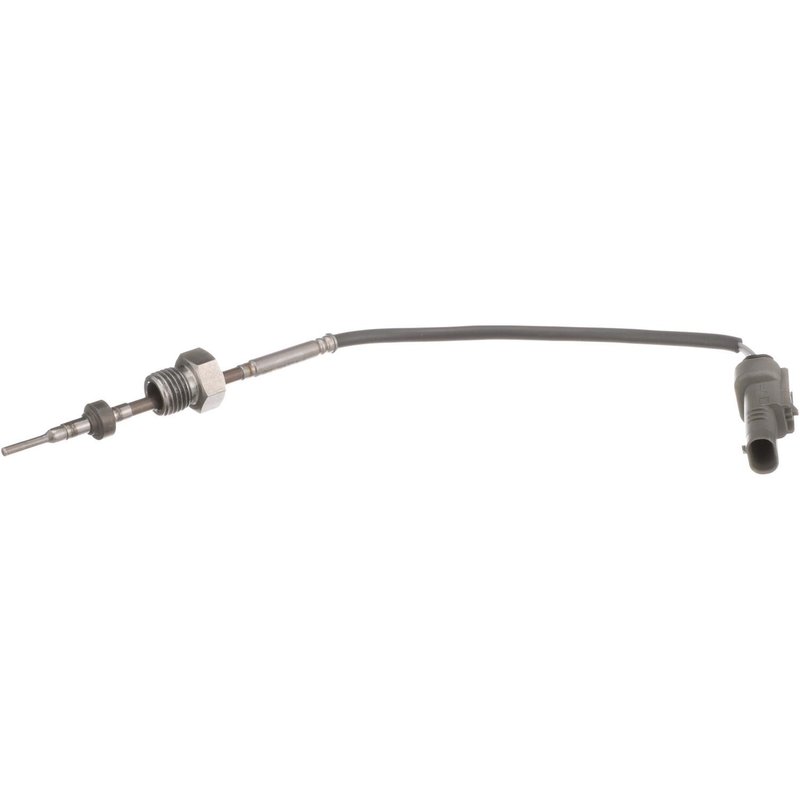

Standard Ignition TX351 Exhaust Gas Recirculation (EGR) Valve Temperature Sensor

Exhaust Gas Recirculation Temperature Sensor

Standard Ignition TX351 is an exhaust gas recirculation (EGR) valve temperature sensor built for direct replacement service on select GM heavy-duty trucks. It uses a plug-in attachment method with a rectangular female connector and two male blade terminals for straightforward electrical connection.

Compatible With 2017-2023 Chevrolet Silverado 2500 HD, 2017-2023 Chevrolet Silverado 3500 HD, 2017-2023 GMC Sierra 2500 HD, and 2017-2023 GMC Sierra 3500 HD.

• Part number: TX351
• Exhaust gas recirculation (EGR) valve temperature sensor
• Plug-in connector design
• 1 rectangular female connector
• 2 male blade terminals
• Sensor only; mounting bracket(s) not included
• Direct-fit service part for select Chevrolet Silverado 2500 HD and GMC Sierra 3500 HD applications

Detailed Product Overview

TX351 monitors EGR valve temperature as part of the emissions control system, helping the engine control module track exhaust gas recirculation operation. Standard Ignition TX351 is specified with a plug-in connector type, one connector, and a female rectangular housing, making it a practical replacement when the original sensor connection is damaged or the sensor has failed. This part cross-references CTSB10007 and TS7336 for the same application.

Common Issues This Sensor Can Address

• Check engine light related to EGR temperature sensor faults
• Incorrect EGR temperature readings reported to the engine control system
• Emissions system diagnostic trouble codes tied to EGR monitoring
• Rough running or drivability concerns caused by faulty EGR feedback
• Failed sensor connection at the plug-in terminal interface

Installation Notes and Tips

Verify connector shape, terminal count, and vehicle application before installation. TX351 uses a plug-in attachment method with two male blade terminals, so the harness connector should match the rectangular female sensor interface. Confirm the original sensor location and inspect the connector for corrosion, heat damage, or bent terminals before installing the replacement.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and emissions-related replacement parts. TX351 is built to match the listed OE-style application requirements for select Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, and GMC Sierra 3500 HD models from 2017-2023.
