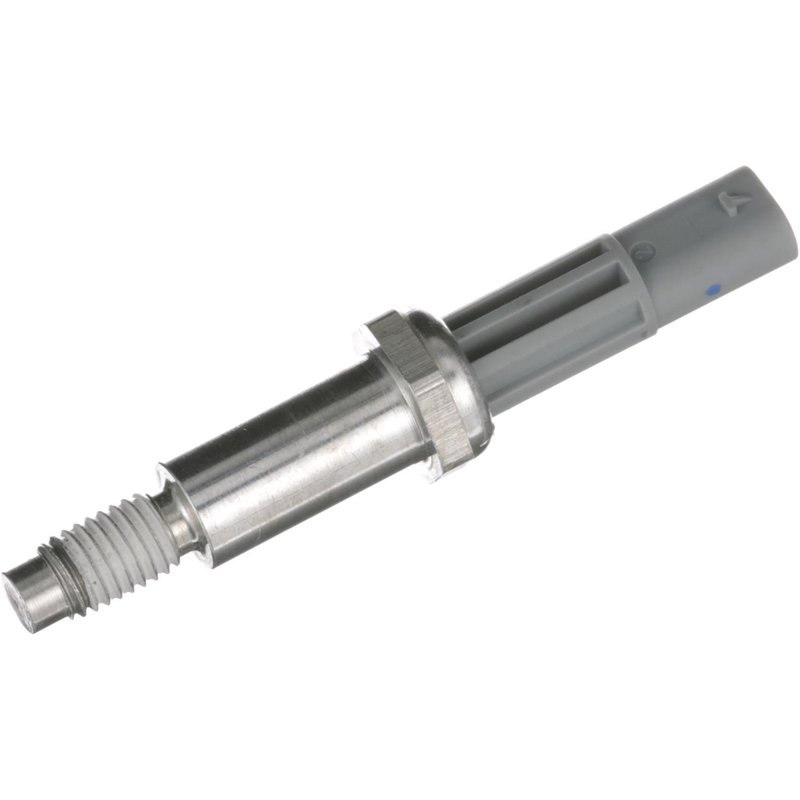

Standard Ignition TX543 Engine Cylinder Head Temperature Sensor

Engine Cylinder Head Temperature Sensor for Ford and Lincoln

Standard Ignition TX543 is an engine cylinder head temperature sensor built for direct replacement in select Ford and Lincoln applications. It uses a screw-in attachment method and a plug-in rectangular connector to match the original sensor interface on supported vehicles.

Key Features

• Engine cylinder head temperature sensor for emission control system monitoring
• Screw-in mounting style for secure installation
• Female rectangular connector with plug-in connection
• Male mini-blade terminals with 2-terminal design
• Sensor only configuration
• Fits 2020-2023 Ford Escape, N/A
• Fits 2019-2023 Ford Transit Connect, N/A
• Fits 2021-2023 Lincoln Corsair, N/A

Detailed Description

Standard Ignition TX543 is an OE-style engine cylinder head temperature sensor used to report cylinder head temperature data to the vehicle control system. Accurate temperature input supports proper engine management and emission control operation in applications such as the Ford Escape, Ford Transit Connect, and Lincoln Corsair. This part cross-references Ford (e.g., JX6Z6G004A) for the same application.

Common Issues This Sensor Can Address

• Fault codes related to cylinder head temperature sensor performance
• Incorrect temperature readings reported to the engine control module
• Driveability concerns tied to inaccurate thermal input
• Emission control faults triggered by sensor signal problems
• Hard starting or abnormal engine behavior linked to temperature data errors

Installation Notes and Tips

TX543 installs with a screw-in attachment method and a single rectangular plug-in connector. Confirm connector shape, terminal style, and sensor location before installation, and verify the replacement matches the original sensor-only configuration on the vehicle. Use the vehicle service procedure for torque and connector handling.

Quality Assurance

Standard Ignition supplies replacement electrical and engine management components for service applications. TX543 is built to match the listed fitment and connector configuration for direct replacement use on supported Ford and Lincoln models.
