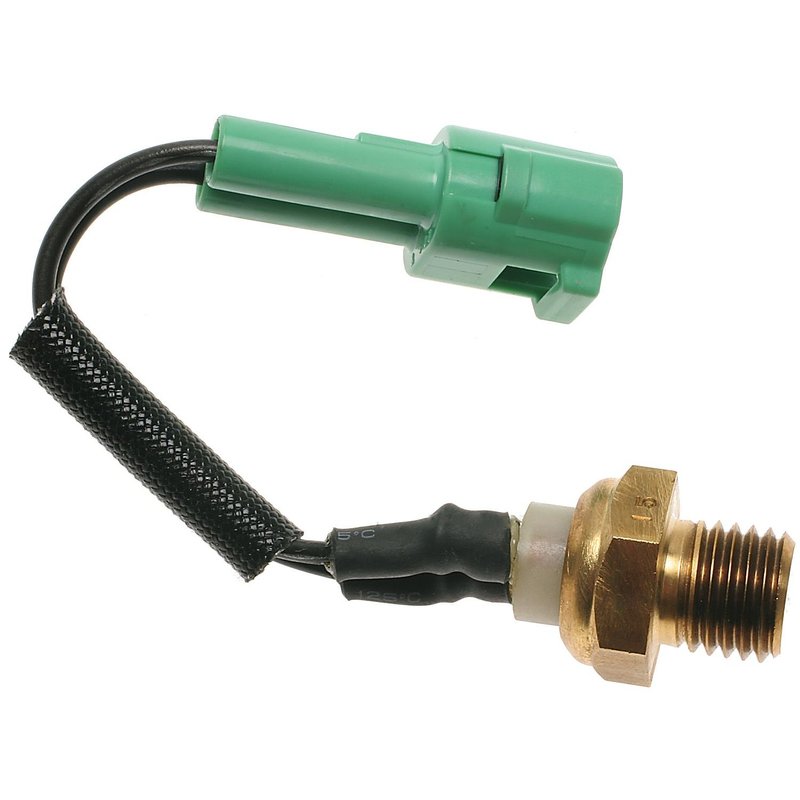

Standard Ignition TX96 Engine Coolant Temperature Sensor

Engine Coolant Temperature Sensor for OE-Style Replacement

Standard Ignition TX96 is an engine coolant temperature sensor built for accurate coolant temperature reporting to the engine control system. It uses a bolt-on attachment method with a round, plug-in female connector and a 2-pin male terminal layout for a direct-fit style installation on supported applications.

For drivers searching for an engine coolant temperature sensor for Subaru applications, TX96 provides the connector and terminal configuration commonly used in OE-style cooling system repairs. This Standard Ignition TX96 part number is also referenced in cross-application listings for 22630AA030 and SU4295.

Key Features

• Engine coolant temperature sensor for cooling system and engine management service
• Bolt-on attachment method for secure mounting
• Round female connector with plug-in design
• 2-pin male terminal configuration
• Standard Ignition TX96 replacement part number
• Cross-reference part numbers include 22630AA030 and SU4295

Product Details

The TX96 coolant temperature sensor monitors engine coolant temperature and sends that information to the vehicle control system so the engine can manage fueling, idle strategy, and temperature-related operation. This sensor is built with one connector, a round plug-in interface, and pin terminals that match the electrical connection style used on specific OE applications. If you are replacing a faulty coolant temp sensor on a Subaru model, Standard Ignition TX96 is a direct part number to verify against the original component.

Common Issues This Part Can Address

• Incorrect coolant temperature readings on the dash or scan tool
• Hard starting when the engine is cold
• Rough idle after startup
• Fuel mixture or drivability faults tied to temperature input
• Cooling fan or engine management behavior affected by sensor signal errors

Installation Notes and Tips

Confirm connector shape, terminal count, and mounting style before installation. Match the original sensor location and inspect the harness connector for corrosion, bent pins, or damaged locking tabs. Because coolant temperature sensors interact with the cooling system, verify coolant level and check for leaks after service. Use the vehicle service procedure for torque and sealing requirements.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and engine management components. TX96 is built to match the listed connector and terminal configuration for the intended application, and it cross-references 22630AA030 and SU4295 for the same use case.
