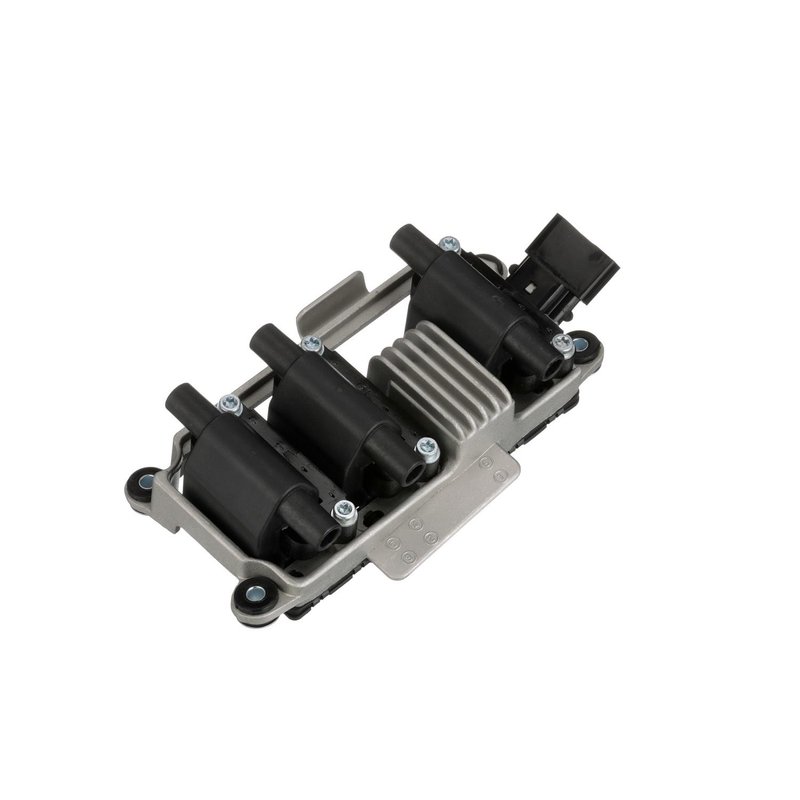

Standard Ignition UF-256 Ignition Control Module

Ignition Control Module for Audi and Volkswagen

Standard Ignition UF-256 is a distributorless ignition control module with an integrated ignition coil for select Audi and Volkswagen applications. It uses a 12-volt electrical system, a black housing, a rectangular female connector, and a bolt-on mount for engine housing cover installation.

Key Features

• Distributorless ignition type for modern coil-on-module systems
• 12-volt operation with 5 male blade terminals
• Rectangular 1-connector design with female connector gender
• Bolt-on mount with included mounting bracket
• Ignition coil included in the assembly
• Mounting location: engine housing cover
• Standard Ignition UF-256 replacement part number

Detailed Description

The Standard Ignition UF-256 ignition control module is built for distributorless ignition systems used on select Audi A4, Audi A4 Quattro, Audi A6, Audi A6 Quattro, and Volkswagen Passat models. This module combines ignition control with an included coil, helping restore spark delivery in vehicles that rely on an engine-mounted ignition module package. This part cross-references Delphi GN10409 and NGK 48963 for the same application.

Compatible With 1998-2005 Volkswagen Passat, N/A. Compatible With 1998-2001 Audi A4, N/A. Compatible With 1998-2001 Audi A4, N/A, Coil and Module Package. Compatible With 1998-2001 Audi A4 Quattro, N/A. Compatible With 1998-2001 Audi A6, N/A. Compatible With 1998-2001 Audi A6 Quattro, N/A. Compatible With 1998 Audi A6, N/A, Coil and Module Package.

What It Helps Resolve

• Engine misfire caused by a failing ignition control module
• No-start condition related to weak or inconsistent spark output
• Rough idle from unstable distributorless ignition performance
• Intermittent stalling tied to ignition control failure
• Loss of ignition coil function in module-and-coil package systems

Installation Notes and Tips

Verify connector shape, terminal count, and mounting location before installation. The UF-256 mounts to the engine housing cover and uses a single rectangular female connector with blade terminals, so matching the original configuration is important for proper fitment. Confirm vehicle application by year, make, and model before replacing the original module.

Quality Assurance

Standard Ignition supplies OE-style ignition components for service replacement use. The UF-256 is built to match the specified distributorless ignition configuration for the listed Audi and Volkswagen applications.
