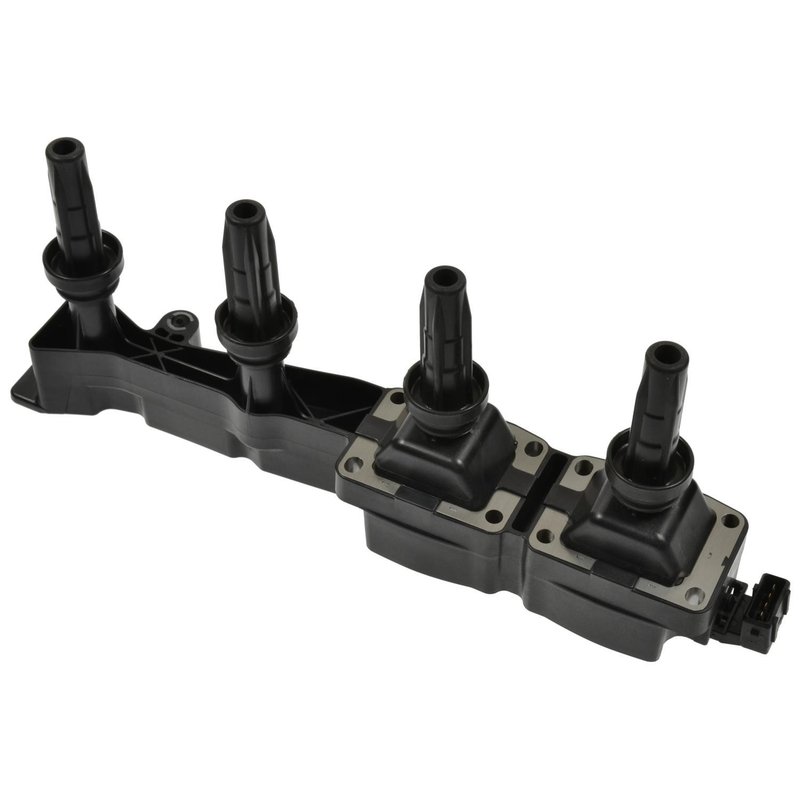

Standard Ignition UF-701 Ignition Coil

Overview of Standard Ignition UF-701 Ignition Coil

The Standard Ignition UF-701 ignition coil is designed for reliable performance in distributorless ignition systems. This 12-volt electronic ignition coil features a bolt-on mount type and is engineered to fit securely in the engine bay of compatible vehicles.

• 12-volt electronic ignition coil for distributorless ignition systems
• Black color with a rectangular female connector
• Bolt-on mounting with included mounting bracket
• Four male blade terminals with one connector
• Includes control module for integrated operation
• OEM replacement part ensuring compatibility and quality

Detailed Product Features and Specifications

The Standard Ignition UF-701 ignition coil operates at 12 volts and is designed specifically for distributorless ignition systems, commonly found in many modern vehicles such as Ford F-150 and Chevrolet Silverado models. Its electronic coil type provides consistent spark energy without the need for traditional distributors. The coil is mounted in the engine bay using a bolt-on method, and it comes with a mounting bracket for secure installation. The connector is rectangular and female, designed to mate with the vehicle’s wiring harness, while the coil terminals are male blade types, totaling four terminals. This ignition coil does not contain oil filling, which reduces maintenance concerns. Additionally, the included control module helps regulate ignition timing and coil function, ensuring smooth engine operation. The UF-701 is an OEM replacement part, making it suitable for direct fitment in vehicles requiring this specification.

Common Applications and Problem Resolution

This ignition coil is used to replace faulty or worn ignition coils in distributorless ignition systems. It is compatible with various makes and models that require a 12-volt electronic coil with blade terminals and a rectangular connector. Typical issues addressed by installing the UF-701 ignition coil include:

• Engine misfires or rough idling due to weak or inconsistent spark
• Difficulty starting the engine or no-start conditions
• Check engine light triggered by ignition coil faults
• Reduced fuel efficiency caused by incomplete combustion
• Intermittent power loss or hesitation during acceleration

Installation Notes and Tips

When installing the Standard Ignition UF-701 ignition coil, ensure the engine is cool and the battery is disconnected to prevent electrical shock. The bolt-on mounting bracket should be securely fastened to avoid vibration-related issues. Connect the rectangular female connector firmly to the vehicle’s wiring harness and verify that the four male blade terminals are properly aligned. Since mounting hardware is included, use the supplied components for a proper fit. After installation, clear any diagnostic trouble codes and perform a test start to confirm proper operation.

Quality Assurance and Warranty Information

Standard Ignition parts, including the UF-701 ignition coil, meet OEM specifications for fit, form, and function. This ignition coil is manufactured to provide consistent performance and durability under normal operating conditions. The product includes a control module to enhance ignition system reliability. Standard Ignition typically offers a limited warranty on ignition components; please refer to the product documentation for specific warranty terms related to the UF-701 part number.
