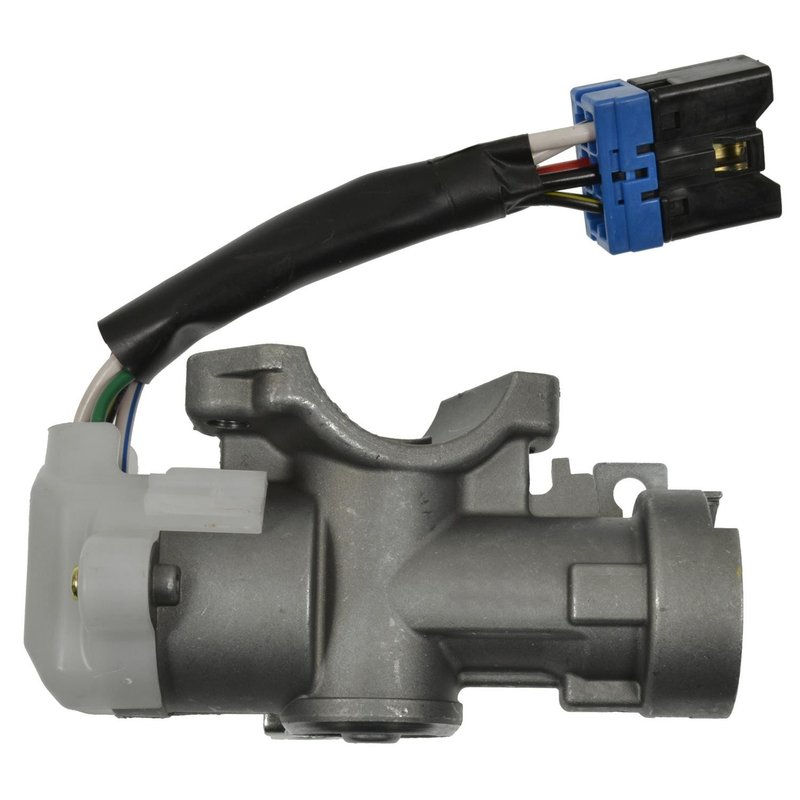

Standard Ignition US-1110 Ignition Switch

Ignition Switch for Hyundai Elantra

Standard Ignition US-1110 is a direct-mount ignition switch for column installation on select Hyundai Elantra models. It uses a rectangular female connector with 6 male blade terminals and a black, gray, and white finish for a service-style replacement that matches the original electrical layout.

Compatible With 2007-2009 Hyundai Elantra and 2010 Hyundai Elantra with ignition lock housing. This Standard Ignition US-1110 ignition switch is built for direct attachment and column mounting, making it a practical choice when the original switch shows electrical or starting-related wear.

Key Features

• Direct-mount ignition switch for column applications
• Rectangular 1-connector design with female connector gender
• 6 male blade terminals for the specified electrical interface
• Black, gray, and white finish with cast iron and plastic construction
• Fits 2007-2009 Hyundai Elantra and 2010 Hyundai Elantra with ignition lock housing
• Standard Ignition US-1110 part number for catalog matching and service lookup

Detailed Description

Standard Ignition US-1110 is an ignition switch replacement for Hyundai Elantra models that use a column-mounted, direct-attachment design. The switch features a rectangular connector layout, female connector gender, and 6 blade terminals to match the vehicle’s original electrical connection style. For parts lookup and interchange reference, US-1110 cross-references 819102H000 and CS1473 for the same application.

Use this ignition switch when servicing a 2007-2009 Hyundai Elantra or a 2010 Hyundai Elantra with ignition lock housing. The part number US-1110 is also useful when verifying the correct replacement during diagnosis or ordering.

Common Issues This Part May Address

• Intermittent no-start condition caused by worn ignition switch contacts
• Accessory or ignition circuits that do not power on consistently
• Key-turn operation that does not send a reliable electrical signal
• Electrical failure at the column-mounted switch assembly
• Starting problems traced to the ignition switch rather than the lock cylinder

Installation Notes and Tips

Confirm the vehicle’s connector shape, terminal count, and column-mount configuration before installation. This part is specified for direct attachment and should be matched to the original switch layout on the vehicle. On 2010 Hyundai Elantra applications, verify the presence of ignition lock housing before ordering. Always compare the existing part number, connector style, and terminal arrangement to US-1110 before service.

Quality Assurance

Standard Ignition supplies service replacement ignition components for cataloged vehicle applications. This part is identified by Standard Ignition US-1110 and supported by listed interchange references for application matching.
