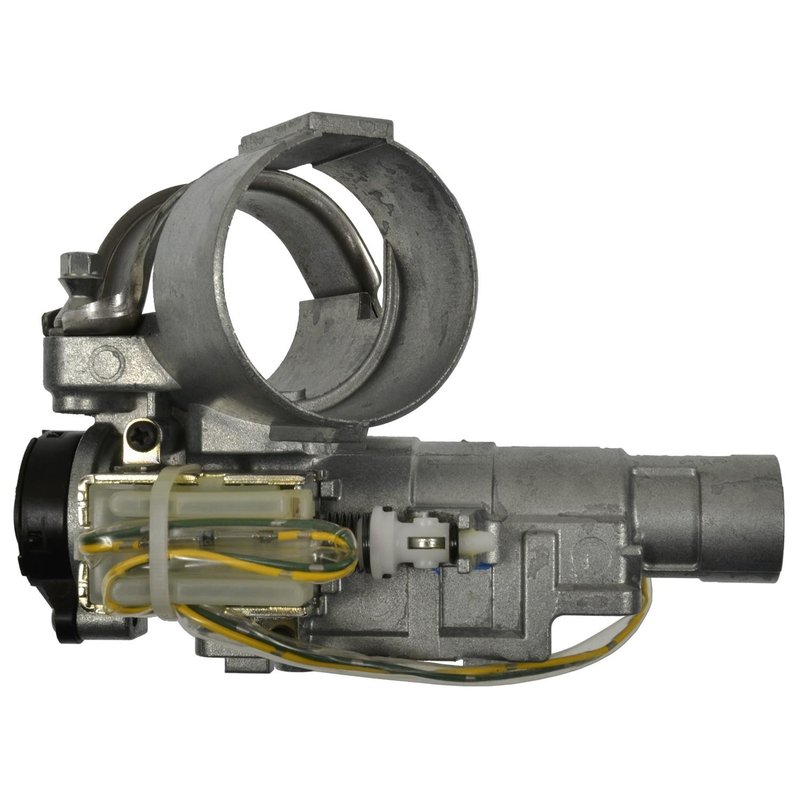

Standard Ignition US-1184 Ignition Switch

Brand Standard Ignition US-1184
Attachment Method Screw-On
Color Black, Gray
Connector Gender Female
Connector Shape Rectangular
Finish Cast Iron, Plastic
Mounting Location Column
Mounting Type Screw-in
Terminal Gender Male
Terminal Type Pin
Fits Suzuki · 3 vehicles

Screw-in design. Installs securely with a simple screw-on attachment method.

Rectangular connector. Single female connector with five male pin terminals.

Cast iron and plastic. Durable construction in black and gray finish.

Cross-references 3710078J01 for the same application. See all 1.

$590.06Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $590.06
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Ignition Switch for Suzuki XL-7

Standard Ignition US-1184 is a column-mounted ignition switch built for direct replacement service on select Suzuki XL-7 models. It uses a single rectangular female connector with five male pin terminals and a screw-in mounting style for a secure electrical and mechanical connection.

Key Features

  • Fits 2007-2009 Suzuki XL-7, w/ Ignition Lock Housing
  • Column-mounted ignition switch for vehicle starting and accessory circuit control
  • Screw-in mounting type with screw-on attachment method
  • 1 rectangular female connector
  • 5 male pin terminals
  • Black and gray finish with cast iron and plastic construction
  • Standard Ignition US-1184 replacement part

Detailed Description

Standard Ignition US-1184 is an ignition switch for 2007-2009 Suzuki XL-7 applications equipped with ignition lock housing. It is built with a rectangular female connector, five male pin terminals, and a column mounting location to match the original switch layout. The black and gray housing combines cast iron and plastic materials for a service replacement that follows the OE-style electrical interface. This part cross-references 3710078J01 for the same application.

Common Issues This Part Can Address

  • No-start condition caused by a worn ignition switch
  • Intermittent accessory or ignition power loss
  • Key position response problems at the column
  • Electrical contact wear inside the switch assembly
  • Starting circuit faults related to the ignition switch

Installation Notes and Tips

Verify that the vehicle is a 2007-2009 Suzuki XL-7 with ignition lock housing before installation. Match the connector shape, terminal count, and column mounting style to the original part. Inspect the surrounding lock housing and wiring connector for wear, corrosion, or damage before completing the repair. Standard Ignition US-1184 should be installed in the same location and orientation as the original switch to maintain proper key and circuit operation.

Quality Assurance

Standard Ignition supplies ignition and electrical service parts for replacement applications, and US-1184 is built to match the specified connector, terminal, and mounting configuration for the listed Suzuki XL-7 fitment.

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2009SuzukiXL-7N/Aw/ Ignition Lock Housing
2008SuzukiXL-7N/Aw/ Ignition Lock Housing
2007SuzukiXL-7N/Aw/ Ignition Lock Housing
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
3710078J01
