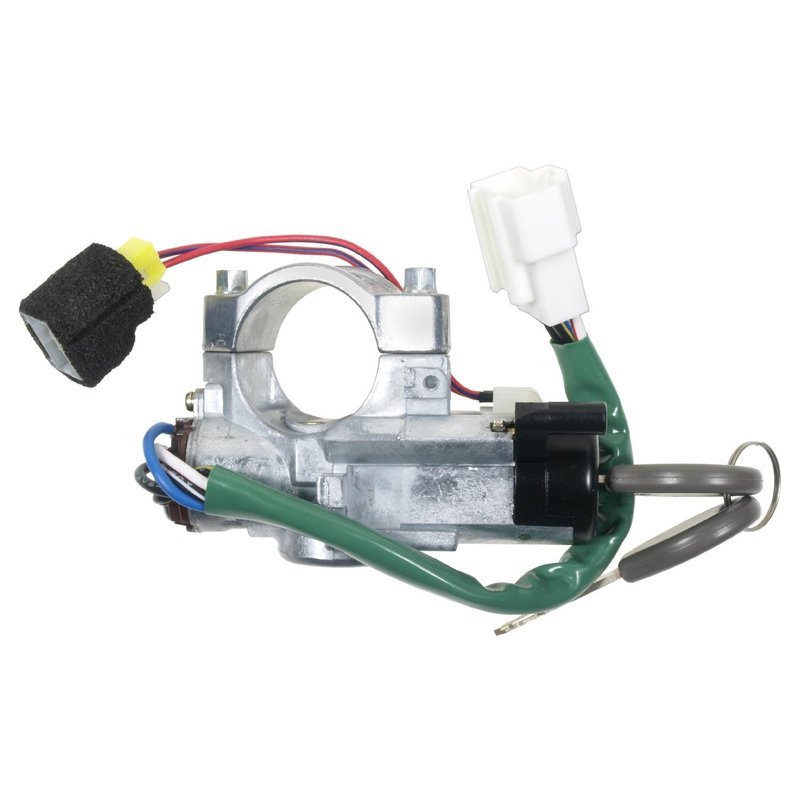

Standard Ignition US-232 Ignition Switch
| Brand | Standard Ignition US-232 |
|---|---|
| Coding | Coded |
| Connector Gender | Female |
| Contents | Ignition Switch & Lock Assembly w/ Keys |
| Hardware Included | No |
| Instructions Included | No |
| Keys Included | Yes |
| Mounting Bracket(s) Included | Yes |
| Mounting Location | Column |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Nissan · 14 vehicles |
Complete lock assembly. Includes the ignition switch, keys, and mounting bracket.
Coded switch. Provides secure, keyed operation with a matching lock assembly.
Blade terminals. Features 7 male blade terminals and 2 female connectors.
Cross-references Standard Ignition US-232, 4870061A25 and CS917 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Ignition Switch and Lock Assembly for Nissan
Standard Ignition US-232 is a coded ignition switch and lock assembly with keys for select Nissan vehicles. It is built for column mounting and uses a 7-blade terminal layout with two female connectors for direct replacement service.
Key Features
- Ignition switch and lock assembly with keys
- Coded design for keyed ignition service
- Column-mounted application
- 2 female connectors
- 7 male blade terminals
- Mounting bracket(s) included
- Fits Nissan Sentra, 200SX, and Maxima applications listed below
Detailed Description
Standard Ignition US-232 is a replacement ignition switch assembly for select 1986-1989 Nissan models. It includes the ignition switch, lock assembly, and keys, making it a practical service part when the original switch or lock cylinder has worn, become inconsistent, or no longer turns smoothly. This part number is commonly searched as US-232 for Nissan Sentra, Nissan 200SX, and Nissan Maxima ignition switch replacement needs.
Compatible vehicle coverage includes Fits 1987-1989 Nissan Sentra, N/A; Fits 1987-1988 Nissan 200SX, N/A; Fits 1987-1988 Nissan Maxima, N/A; Fits 1986 Nissan Maxima, N/A, From 1/86; and Fits 1986 Nissan Sentra, N/A, From 1/86. This part cross-references CS917 and KS6917 for the same application.
Common Replacement Reasons
- Key will not turn or turns inconsistently in the ignition
- Electrical ignition switch failure causing no-start or intermittent start conditions
- Worn lock assembly that no longer matches the key properly
- Damaged connector or terminal interface at the column
- Restoration or repair of a Nissan Sentra, 200SX, or Maxima ignition system
Installation Notes and Tips
Verify the column-mounted connector style, terminal count, and coded lock configuration before installation. Compare the existing switch and lock assembly to the replacement part number US-232, and confirm the vehicle build date for 1986 applications noted as From 1/86. Instructions are not included, so factory service information should be used for removal and installation procedures.
Quality Assurance
Standard Ignition is a recognized aftermarket source for electrical and ignition service parts. US-232 is built to match the listed Nissan applications and connector/terminal configuration for direct replacement use.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1989 | Nissan | Sentra | Manual | — | — | N/A | — |
| 1988 | Nissan | 200SX | — | — | — | N/A | — |
| 1988 | Nissan | 200SX | — | 2.0L | L4 | N/A | — |
| 1988 | Nissan | 200SX | — | 3.0L | V6 | N/A | — |
| 1988 | Nissan | Maxima | — | — | — | N/A | — |
| 1988 | Nissan | Sentra | — | — | — | N/A | — |
| 1987 | Nissan | 200SX | — | — | — | N/A | — |
| 1987 | Nissan | 200SX | — | 1.8L | L4 | N/A | — |
| 1987 | Nissan | 200SX | — | 2.0L | L4 | N/A | — |
| 1987 | Nissan | 200SX | — | 3.0L | V6 | N/A | — |
| 1987 | Nissan | Maxima | — | — | — | N/A | — |
| 1987 | Nissan | Sentra | — | — | — | N/A | — |
| 1986 | Nissan | Maxima | — | — | — | N/A | From 1/86 |
| 1986 | Nissan | Sentra | — | — | — | N/A | From 1/86 |
