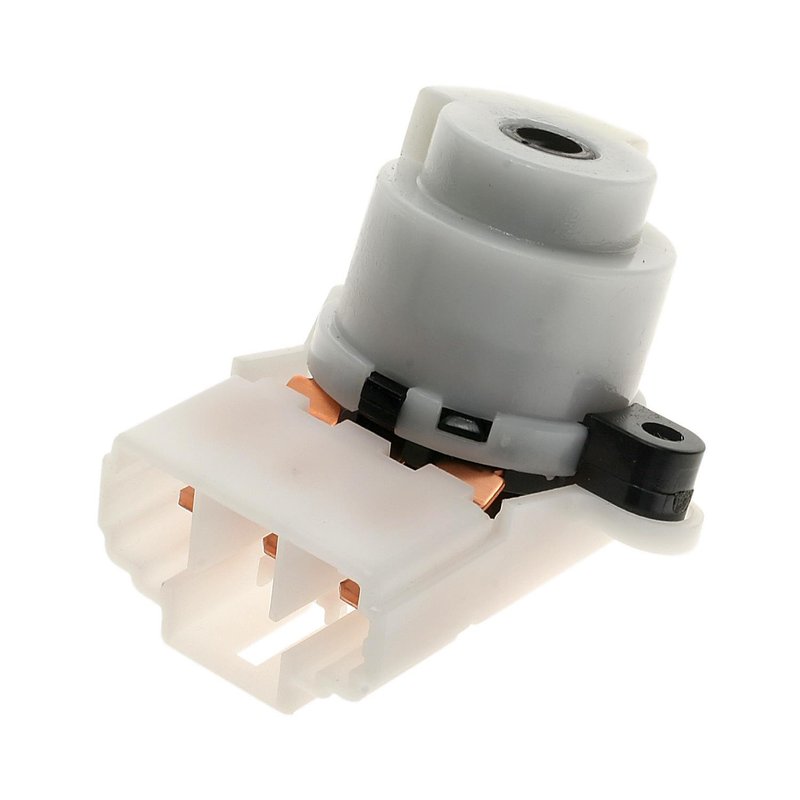

Standard Ignition US-524 Ignition Switch

Reliable Ignition Switch for Mazda MX-3 and RX-7

The Standard Ignition US-524 ignition switch is designed specifically for Mazda MX-3 and RX-7 models. This bolt-on ignition switch ensures secure mounting on the steering column, providing consistent electrical connection and reliable vehicle start-up performance.

• Bolt-on attachment method for secure installation
• Female rectangular connector with one connector for easy wiring
• Six male blade terminals for reliable electrical contact
• Designed for column mounting to fit Mazda MX-3 and RX-7
• Standard Ignition quality and durability

Detailed Product Features and Specifications

The Standard Ignition US-524 ignition switch features a bolt-on attachment method, allowing for straightforward replacement on the steering column of compatible Mazda vehicles. It includes a single female rectangular connector designed to interface with the vehicle’s wiring harness. The switch is equipped with six male blade terminals, which provide secure and stable electrical connections necessary for ignition and accessory circuits. This ignition switch is engineered to meet the electrical and mechanical requirements of Mazda MX-3 and RX-7 models, ensuring proper fitment and function.

Compatible Vehicles and Applications

This ignition switch is compatible with the following Mazda vehicles:

• Mazda MX-3
• Mazda RX-7

It is intended for use as a direct replacement part to restore ignition system functionality, particularly in cases of switch failure or electrical issues related to ignition control.

Common Issues Addressed by This Ignition Switch

• Intermittent or no start conditions due to faulty ignition switch
• Electrical connection problems causing accessory power loss
• Ignition key not turning or sticking in the column
• Failure of ignition switch terminals leading to inconsistent power delivery
• Wear and tear from prolonged use affecting ignition reliability

Installation Notes and Tips

• Ensure the vehicle battery is disconnected before installation to prevent electrical shorts
• Verify the connector orientation matches the female rectangular connector on the switch
• Use appropriate tools to remove the steering column cover for access
• Confirm all six blade terminals are properly seated and secure
• Test ignition switch operation before reassembling the steering column

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The US-524 ignition switch undergoes rigorous quality control to ensure durability and reliable performance in Mazda MX-3 and RX-7 vehicles. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in material and workmanship under normal use.
