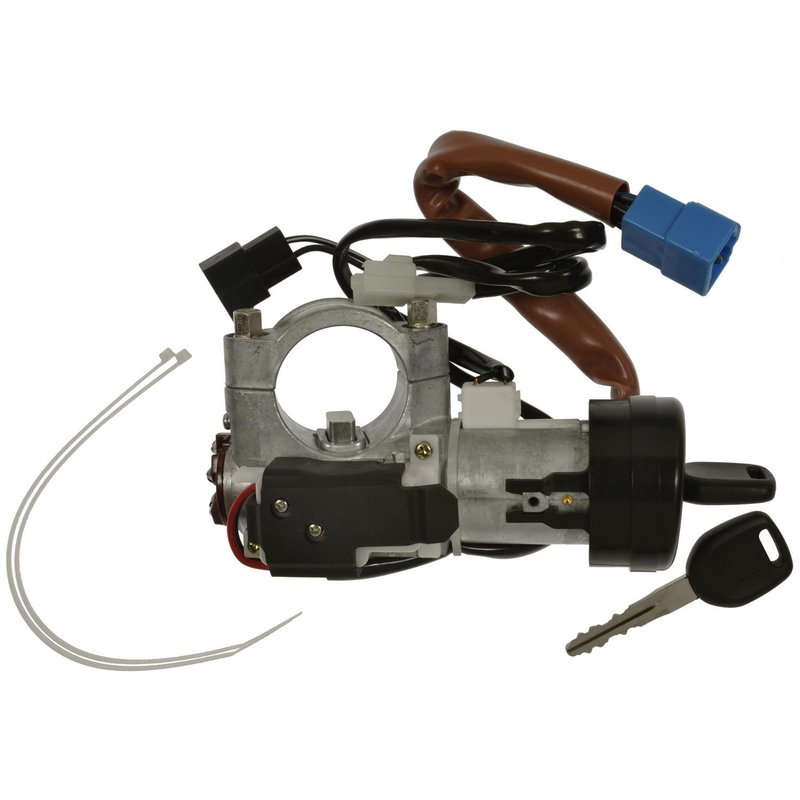

Standard Ignition US-633 Ignition Lock Cylinder and Switch
| Brand | Standard Ignition US-633 |
|---|---|
| Coding | Coded |
| Connector Gender | Female |
| Contents | Ignition Switch & Lock Assembly w/ Keys |
| Hardware Included | No |
| Instructions Included | No |
| Keys Included | Yes |
| Mounting Bracket(s) Included | Yes |
| Mounting Location | Column |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Subaru · 5 vehicles |
Complete lock assembly. Includes the ignition switch, lock assembly, and keys.
Coded for security. Helps maintain proper key matching and operation.
Blade terminals. Uses a 7-terminal, 3-connector electrical design.
Cross-references Standard Ignition US-633, 83121FC070 and CS992 for the same application. See all 5.
Ignition Lock Cylinder and Switch for Subaru Forester
Standard Ignition US-633 is a coded ignition lock cylinder and switch assembly for select Subaru Forester models. It includes the ignition switch and lock assembly with keys, along with a mounting bracket for column installation.
Key Features
- Fits 1998-2002 Subaru Forester, column
- Coded ignition lock cylinder and switch assembly
- Includes ignition switch and lock assembly with keys
- Female connector design with 3 connectors
- 7 blade terminals with male terminal ends
- Mounting bracket included for column mounting
- Standard Ignition US-633 replacement part
Detailed Product Overview
Standard Ignition US-633 is built for Subaru Forester ignition service where the lock cylinder and switch assembly must be replaced as a matched, coded unit. The assembly uses a female connector layout with 3 connectors and 7 male blade terminals for the electrical interface. This part cross-references Subaru OE-style numbers such as 83121FC070 and CS992 for the same application. If you are searching for a Subaru Forester ignition lock cylinder and switch, US-633 provides a direct-fit service part for 1998-2002 vehicles.
Common Issues This Part Can Address
- Key will not turn smoothly in the ignition
- Ignition switch electrical contact wear
- Intermittent no-start condition at the column switch
- Worn or damaged lock cylinder components
- Need for a coded replacement ignition assembly with keys
Installation Notes and Tips
US-633 mounts at the steering column and is supplied as an ignition switch and lock assembly with keys. Verify connector style, terminal count, and column mounting location before installation. Because instructions are not included, compare the existing assembly and keying requirements to confirm proper replacement on your Subaru Forester.
Quality Assurance
Standard Ignition supplies replacement ignition components for service applications that require correct fitment, coded operation, and OE-style electrical connection points. For 1998-2002 Subaru Forester ignition repair, US-633 is a cataloged replacement built around the listed vehicle application and connector specifications.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Subaru | Forester | Automatic | N/A | — |
| 2001 | Subaru | Forester | Automatic | N/A | — |
| 2000 | Subaru | Forester | Automatic | N/A | — |
| 1999 | Subaru | Forester | Automatic | N/A | — |
| 1998 | Subaru | Forester | Automatic | N/A | — |
