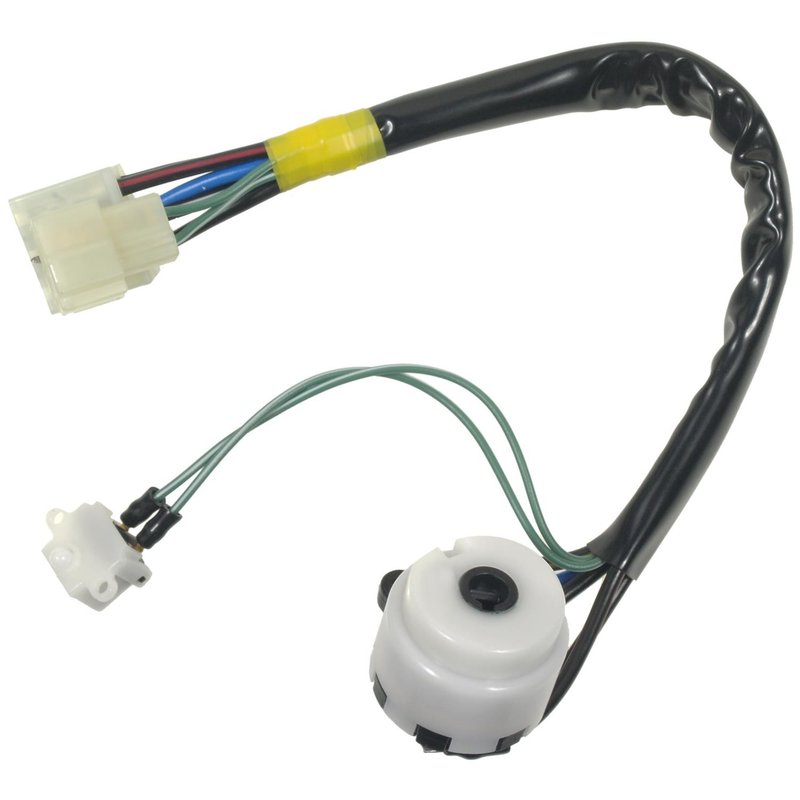

Standard Ignition US-771 Ignition Switch

Overview of Standard Ignition US-771 Ignition Switch

The Standard Ignition US-771 ignition switch is designed specifically for Isuzu Amigo and Pickup models. This bolt-on ignition switch features dual rectangular connectors and blade terminals, ensuring reliable electrical connections in your vehicle's steering column.

• Bolt-on attachment method for secure mounting
• Two rectangular connectors with both female and male genders
• Seven blade-type terminals with female and male configurations
• Designed for column mounting location
• Compatible with Isuzu Amigo and Pickup models

Detailed Product Description

The US-771 ignition switch by Standard Ignition is engineered to meet the specific electrical and mechanical requirements of Isuzu Amigo and Pickup vehicles. Its bolt-on design allows for straightforward installation directly onto the steering column. The switch includes two rectangular connectors, each with both female and male genders, facilitating proper integration with the vehicle’s wiring harness. Additionally, the seven blade terminals provide secure and durable electrical contacts, supporting consistent ignition performance. This ignition switch is built to maintain reliable operation under typical driving conditions, ensuring proper vehicle start-up and electrical system control.

Common Applications and Problem Resolution

This ignition switch is used primarily to control the electrical power to the ignition system and other vehicle accessories. It addresses several common issues, including:

• Intermittent or no start conditions due to faulty ignition switch contacts
• Electrical connection failures caused by worn or damaged terminals
• Loose or unstable mounting leading to ignition switch malfunction
• Connector compatibility problems with the vehicle’s wiring harness
• Wear and tear from regular use affecting ignition switch reliability

Installation Notes and Tips

Installation of the Standard Ignition US-771 ignition switch requires removal of the steering column cover to access the mounting location. The bolt-on attachment method simplifies securing the switch in place. Ensure that the rectangular connectors are properly aligned and fully engaged to avoid electrical issues. Verify that all seven blade terminals are correctly connected according to the vehicle’s wiring diagram. It is recommended to disconnect the vehicle battery before installation to prevent electrical shorts or damage.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The US-771 ignition switch undergoes rigorous quality control testing to ensure durability and reliable performance in Isuzu Amigo and Pickup vehicles. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Refer to the product documentation for exact warranty terms.
