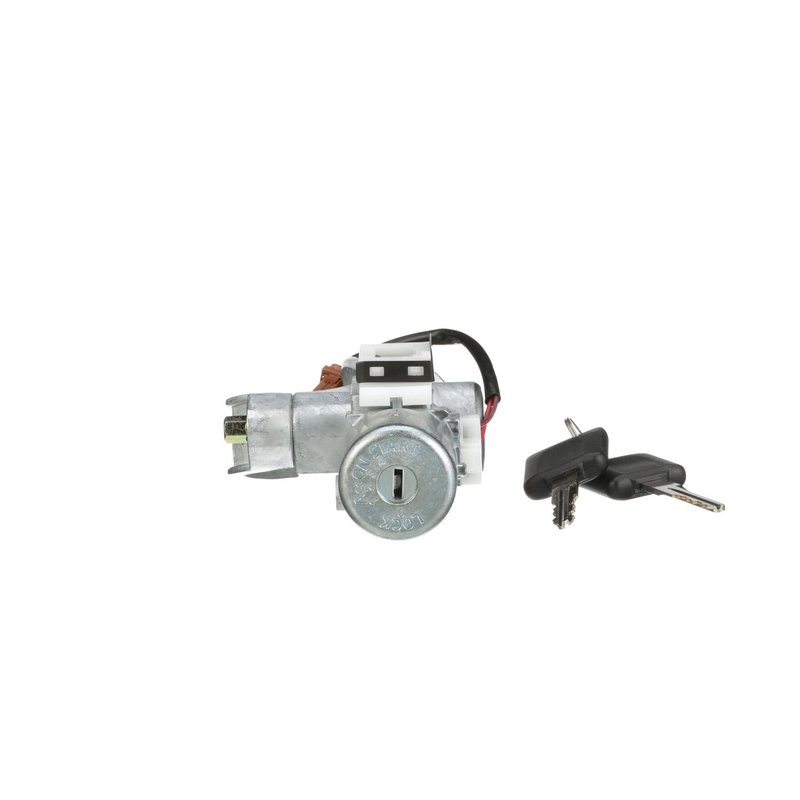

Standard Ignition US-804 Ignition Lock Cylinder and Switch

Ignition Lock Cylinder and Switch for Nissan

Standard Ignition US-804 is a coded ignition lock cylinder and switch assembly with keys for select Nissan applications. It combines the ignition switch and lock assembly in a column-mounted design, making it a direct replacement option for vehicles that use keyless entry and immobilizer or anti-theft security access procedures.

Key Features

• Ignition switch and lock assembly with keys
• Coded design for security-system matching
• Column mounting location
• 2 connectors with male and female terminals
• 8 blade terminals for the electrical interface
• Mounting bracket(s) included
• Instructions included for installation reference
• Standard Ignition US-804 replacement part

Product Details

Standard Ignition US-804 is built for Nissan ignition lock cylinder and switch replacement where the original assembly is worn, damaged, or no longer operating correctly. This assembly is listed for 2000-2002 Nissan Maxima, 2002-2006 Nissan Sentra, and select Sentra models with keyless entry and immobilizer equipment. For 2001 and 2002 Nissan Maxima applications, service manual or scan-tool access may be required for anti-theft system repair and installation procedures. The US-804 part number is also referenced under cross numbers such as CS1164 and KS7164 for the same application.

Common Issues This Part Can Address

• Key will not turn or the ignition cylinder binds
• Ignition switch electrical contacts are intermittent or failed
• Vehicle starts inconsistently due to worn lock and switch components
• Security-system related replacement is needed after lock assembly wear or damage
• Original ignition assembly no longer matches the vehicle’s coded setup

Installation Notes

Verify the vehicle’s anti-theft and immobilizer requirements before installation. Some 2001-2002 Nissan Maxima applications require scan-tool security access, and certain Maxima repairs call for service manual procedures. This assembly mounts on the column and uses male and female connectors with blade terminals, so connector style and terminal count should be matched to the original unit before installation. Standard Ignition US-804 includes instructions and keys, along with the mounting bracket(s) needed for the assembly.

Quality Assurance

Standard Ignition supplies replacement ignition components for service applications that require correct electrical and mechanical fitment. US-804 is a coded ignition lock cylinder and switch assembly built to match the listed Nissan applications and security-system requirements.
