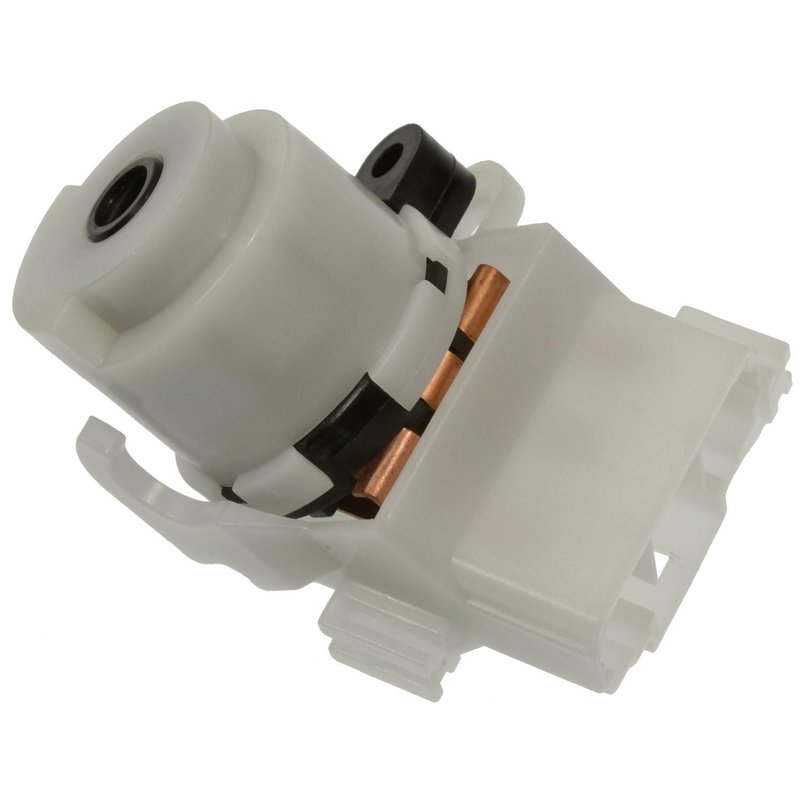

Standard Ignition US-820 Ignition Switch
| Brand | Standard Ignition US-820 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Mounting Location | Column |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Mazda · 7 vehicles |
Bolt-on installation. Simplifies replacement with a secure, straightforward fit.
Rectangular connector. Single female plug with six blade terminals for a clean connection.
Ignition switch. Controls electrical power through the ignition system.
Cross-references Standard Ignition US-820, CS1180 and KS7180 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Ignition Switch for Mazda Miata
Standard Ignition US-820 is a column-mounted ignition switch for select Mazda Miata models from 1999-2005. It is built with a bolt-on attachment method, a rectangular female connector, and blade-style male terminals for a direct electrical interface.
Key Features
- Fits 1999-2005 Mazda Miata, column
- Bolt-on mounting for secure installation at the steering column
- Rectangular 1-connector design with female connector gender
- 6 male blade terminals for the vehicle’s ignition circuit
- Standard Ignition US-820 replacement ignition switch
Product Details
This ignition switch is designed for Mazda Miata ignition system service where the column switch assembly needs replacement. Standard Ignition US-820 uses a single rectangular connector and blade terminals to match the vehicle’s electrical layout, helping restore proper key-to-electrical switching function. This part cross-references CS1180 and KS7180 for the same application.
Common Issues It May Address
- Intermittent no-start condition caused by worn ignition switch contacts
- Accessory or ignition power loss when turning the key
- Electrical faults at the steering column switch connection
- Key position response problems during start, run, or accessory operation
- Replacement need after switch wear in a high-use Mazda Miata ignition system
Installation Notes and Tips
Verify connector shape, terminal count, and column mounting before installation. Match the existing switch layout to the vehicle harness and inspect the steering column area for wear, heat damage, or loose terminals. Confirm fitment for your specific 1999-2005 Mazda Miata before service, and follow the vehicle service procedure for ignition switch replacement.
Quality Assurance
Standard Ignition supplies electrical and ignition components for service replacement applications. US-820 is built to match the listed fitment and connection style for Mazda Miata ignition switch service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Mazda | Miata | N/A | — |
| 2004 | Mazda | Miata | N/A | — |
| 2003 | Mazda | Miata | N/A | — |
| 2002 | Mazda | Miata | N/A | — |
| 2001 | Mazda | Miata | N/A | — |
| 2000 | Mazda | Miata | N/A | — |
| 1999 | Mazda | Miata | N/A | — |
