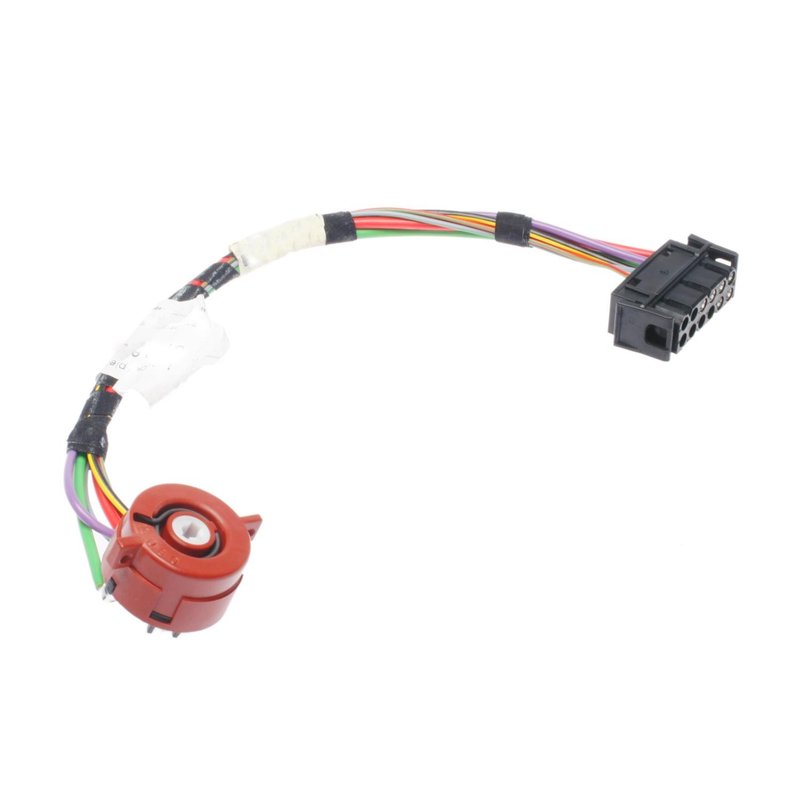

Standard Ignition US-947 Ignition Switch
| Brand | Standard Ignition US-947 |
|---|---|
| Attachment Method | Snap Fit |
| Color | Orange |
| Connector Gender | Male |
| Connector Shape | Square |
| Finish | Plastic |
| Mounting Location | Column |
| Terminal Gender | Female |
| Terminal Type | Cylindrical tube |
| Fits | BMW · 5 vehicles |
Snap-fit design. Installs securely without extra hardware.
Single square connector. Simplifies electrical connection and replacement.
Six cylindrical terminals. Provides a direct, organized switch interface.
Cross-references Standard Ignition US-947, 61328360922 and CS1307 for the same application. See all 6.
Ignition Switch for BMW Z3
Standard Ignition US-947 is an ignition switch for select BMW Z3 models with column mounting and a snap-fit attachment method. It uses a square male connector with six female cylindrical tube terminals and an orange plastic finish for a direct-fit electrical connection.
Key Features
- Ignition switch for BMW Z3 applications
- Column-mounted design with snap-fit attachment
- Square male connector with one connector interface
- Six female cylindrical tube terminals
- Orange plastic finish
- Standard Ignition US-947 replacement part
Detailed Description
Standard Ignition US-947 is built for ignition switch replacement on 1996-1998 BMW Z3 and 2001-2002 BMW Z3 models. This part number is also referenced as US-947 and cross-references Monroe Shocks & Struts (e.g., 172286) for the same application. The column-mounted layout and snap-fit attachment support a straightforward electrical and mechanical interface where the original switch has worn, failed, or become intermittent.
With a square connector shape, male connector gender, and six female cylindrical tube terminals, this ignition switch is specified to match the vehicle-side connection used in the listed BMW Z3 fitments. The plastic housing and orange finish identify the unit while supporting a clean replacement for the original switch assembly.
Used For These Issues
- No crank condition caused by a failed ignition switch
- Intermittent start or accessory power loss
- Key position response problems at the column switch
- Electrical contact wear inside the ignition switch
- Replacement after switch housing or terminal damage
Installation Notes and Tips
Fits 1996-1998 BMW Z3, N/A. Fits 2001-2002 BMW Z3, N/A. Verify the connector shape, terminal count, and column-mounted configuration against the original part before installation. Match the existing switch location and electrical interface to confirm proper fitment for your BMW Z3.
Quality Assurance
Standard Ignition supplies replacement electrical components for automotive service applications. US-947 is built to match the listed fitment and connector specifications for direct replacement use on the confirmed BMW Z3 applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | BMW | Z3 | N/A | — |
| 2001 | BMW | Z3 | N/A | — |
| 1998 | BMW | Z3 | N/A | — |
| 1997 | BMW | Z3 | N/A | — |
| 1996 | BMW | Z3 | N/A | — |
