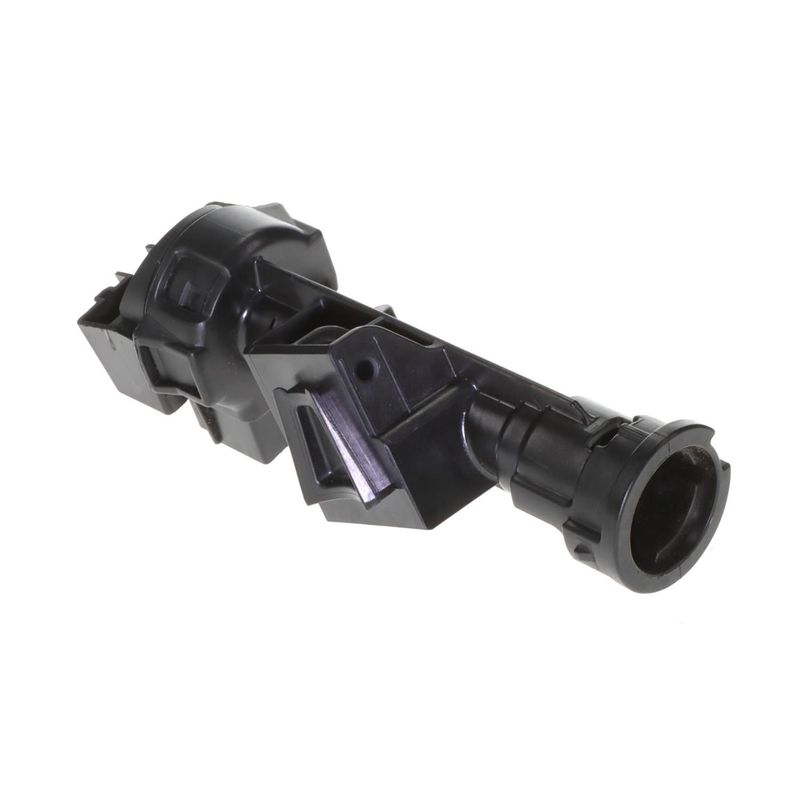

Standard Ignition US805L Steering Column Housing Repair Kit
| Brand | Standard Ignition US805L |
|---|---|
| Attachment Method | Bolt on |
| Coding | Un-coded |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Contents | 1 ignition lock cylinder |
| Finish | Metal, plastic |
| Instructions Included | No |
| Key Programmable | No |
| Key Quantity | 0 |
| Keys Included | No |
| Lock Material | Die cast case spun over for tight seal |
| Mounting Hardware Included | No |
| Mounting Location | Column |
| Number of Positions | 1 |
| O.E.M. Replacement | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Blade and bullet |
| Fits | Ford · 8 vehicles |
OE replacement. Bolt-on steering column housing repair kit for straightforward installation.
Die-cast lock case. Spun-over construction creates a tight seal for added durability.
Un-coded design. Includes one ignition lock cylinder with no keys or programming required.
Cross-references CS1805L, DG9Z3511A and KS2811L for the same application. See all 4.
Steering Column Housing Repair Kit for Ford Fusion
Restore proper steering column function with the Standard Ignition US805L steering column housing repair kit. This OE replacement ignition lock cylinder assembly is built for 2013-2020 Ford Fusion models and is designed for a bolt-on column mount with a rectangular female connector.
- OE replacement steering column housing repair kit for Ford Fusion
- Fits 2013-2020 Ford Fusion, column
- Includes an ignition lock cylinder
- Un-coded design; not key programmable
- Metal and plastic finish with die cast case spun over for a tight seal
- Rectangular female connector with 7 blade and bullet terminals
- Standard Ignition US805L application
Detailed Product Overview
The Standard Ignition US805L is a steering column housing repair kit intended for column-mounted ignition lock service on Ford Fusion vehicles. It uses a bolt-on attachment method and an OE replacement design to match the original application requirements. For buyers searching for a Ford Fusion steering column housing repair kit, ignition lock cylinder replacement, or Standard Ignition US805L, this part provides a direct-fit service solution for 2013-2020 Ford Fusion models.
This part cross-references Ford OE number DG9Z3511A for the same application.
Common Problems This Part Can Address
- Worn or damaged ignition lock cylinder operation
- Loose or failing steering column lock housing components
- Key-turn resistance caused by internal cylinder wear
- Electrical connection issues at the column lock assembly
- Need for an OE-style steering column repair on a Ford Fusion
Installation Notes and Tips
Fits 2013-2020 Ford Fusion, column. Verify connector style, terminal count, and mounting location before installation. This unit is un-coded and not key programmable, so key and cylinder matching requirements should be confirmed against the vehicle’s existing setup. No instructions are included, so factory service information should be used during replacement.
Quality Assurance
Standard Ignition supplies OE replacement components for steering and ignition service applications. The US805L is built with a die cast case spun over for a tight seal and is intended to meet the original equipment fit and function requirements for the listed Ford Fusion applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2020 | Ford | Fusion | — |
| 2019 | Ford | Fusion | — |
| 2018 | Ford | Fusion | — |
| 2017 | Ford | Fusion | — |
| 2016 | Ford | Fusion | — |
| 2015 | Ford | Fusion | — |
| 2014 | Ford | Fusion | — |
| 2013 | Ford | Fusion | — |
