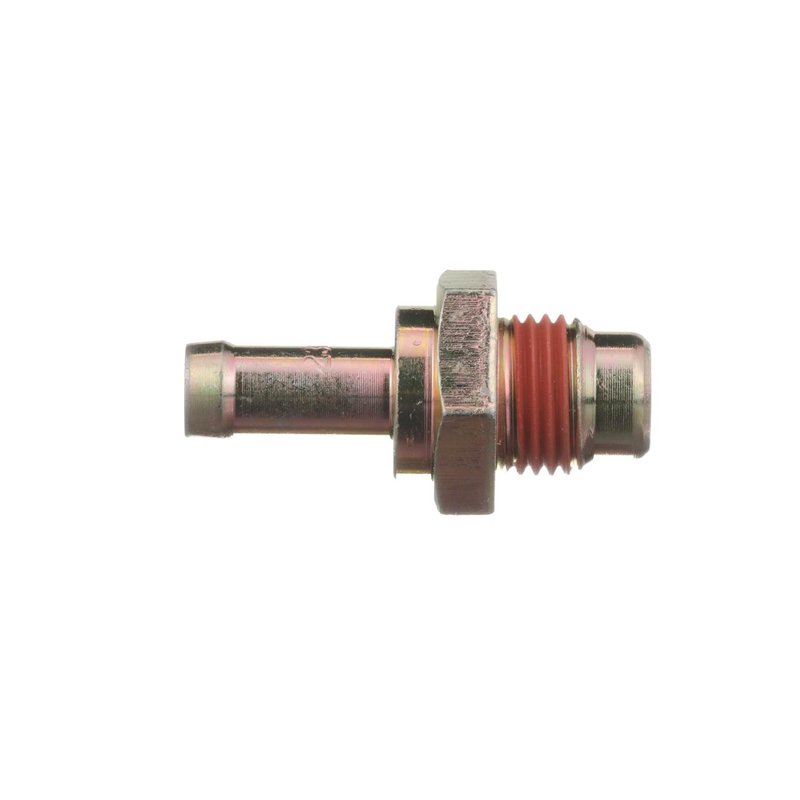

Standard Ignition V385 PCV Valve

Standard Ignition V385 PCV Valve Overview

Standard Ignition V385 is a screw-in PCV valve built as a complete metal assembly for crankcase ventilation service. It uses a straight nipple, 3/8 in. hose connection, and M16x2.0 thread size for direct replacement applications on select Toyota and Scion vehicles.

Compatible with 2001-2007 Toyota Highlander, 2002-2006 Toyota Camry, 2002-2005 Toyota Solara, 2001-2005 Toyota RAV4, 2005 Scion tC, and 2006 Scion tC built to 5/06, this Standard Ignition V385 PCV valve supports proper crankcase ventilation in the listed applications.

Key Features

• Screw-in PCV valve design for direct mounting
• Metal construction with gold finish
• Straight nipple orientation
• One 3/8 in. hose connector
• M16x2.0 thread size
• Complete assembly with valve included
• No cap, gasket, or mounting bracket included

Product Details

The PCV valve regulates crankcase vapors and routes them back into the intake system as part of the emission control and crankcase ventilation system. Standard Ignition V385 is specified with a 0.21 in. inlet diameter, 0.16 in. outlet diameter, and no connector gender, making it a straightforward replacement for the listed Toyota and Scion fitments. This part cross-references 2-9524 and PCV524 for the same application.

What This Part Helps Address

• Rough idle caused by a restricted or sticking PCV valve
• Excess crankcase pressure from poor ventilation flow
• Oil vapor buildup in the crankcase ventilation system
• Emission control issues related to worn PCV components
• Vacuum irregularities tied to a failing valve assembly

Installation Notes and Tips

Verify thread size, hose size, and nipple orientation before installation. The screw-in design and 3/8 in. hose connection should match the original service part on the vehicle. Inspect the hose and surrounding ventilation components for wear, cracking, or blockage before installing the new valve. For fitment-specific service, confirm the application against the vehicle year and model listed above, including the 2006 Scion tC to 5/06 and 2006 Toyota Solara to 5/06 applications.

Quality Assurance

Standard Ignition supplies this V385 PCV valve as a replacement emission control component for the listed Toyota Highlander, Camry, Solara, RAV4, and Scion tC applications. The part is built as a metal complete assembly to match the specified service requirements.
