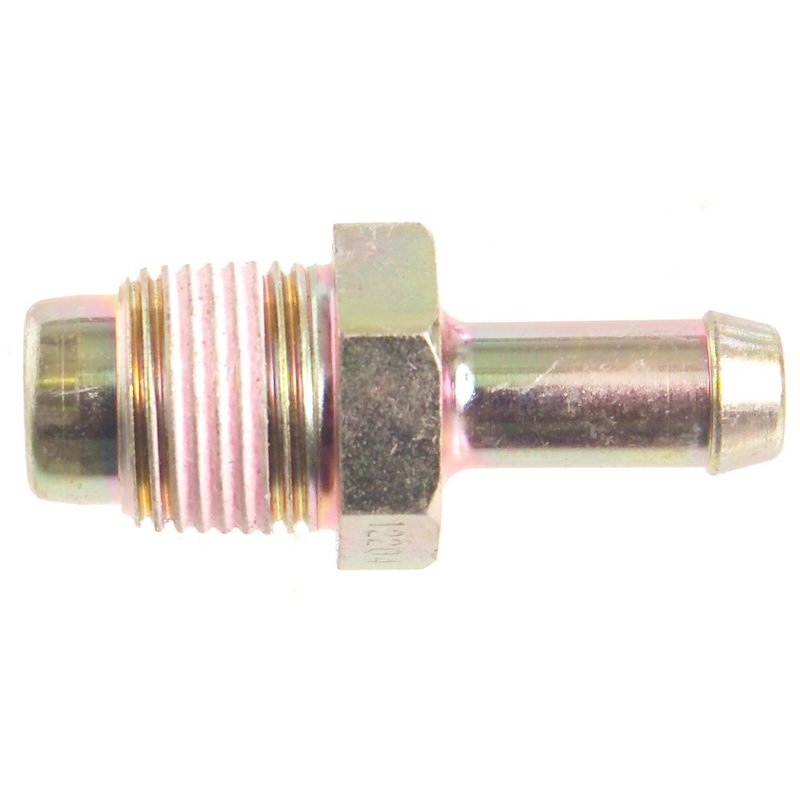

Standard Ignition V386 PCV Valve
| Brand | Standard Ignition V386 |
|---|---|
| Attachment Method | Screw-in |
| Connector Gender | No Connector |
| Contents | Valve |
| Hose Size - Inches | 3/8" |
| Hose Size - mm | 10 mm |
| Nipple Orientation | Straight |
| Notes | Complete Assembly |
| Fits | Toyota and Lexus · 30 vehicles |
Screw-in design. Installs as a complete valve assembly with a straight nipple.
Metal construction. Built for durable crankcase ventilation performance.
3/8 NPT thread. Provides a secure threaded connection with one hose outlet.
Cross-references Standard Ignition V386, 2-9525 and 1220420040 for the same application. See all 4.
Standard Ignition V386 PCV Valve Overview
The Standard Ignition V386 is a screw-in PCV valve for crankcase ventilation service on select Toyota and Lexus applications. It uses a metal body with a straight nipple and a single 3/8 in. hose connection for a direct replacement style installation.
Compatible with 2002-2006 Lexus ES300, ES330, RX300, and RX330, plus 2002-2006 Toyota Avalon, Camry, Highlander, Sienna, and Solara applications listed below.
Key Features
- Part number: V386
- PCV valve for emission control and crankcase ventilation service
- Screw-in attachment method with 3/8 NPT thread size
- Metal construction with gold finish
- Straight nipple orientation
- Single hose connector with 3/8 in. / 10 mm hose size
- Complete assembly, valve only
- No cap, gasket, connector, or mounting bracket included
Detailed Description
Standard Ignition V386 is built as a replacement PCV valve for vehicles that use a screw-in crankcase ventilation design. The valve features a 3/8 NPT thread, 0.21 in. inlet diameter, and 0.16 in. outlet diameter, with a straight hose connection for straightforward routing. This part number V386 is listed for multiple Toyota and Lexus models, making it a practical choice when servicing the PCV system on a 2003-2006 Toyota Camry, 2002-2005 Toyota Highlander, or 2004-2006 Lexus RX330.
This part cross-references 2-9525 and PCV525 for the same application.
What It Helps Address
- Excess crankcase pressure
- Rough idle caused by a restricted PCV valve
- Oil vapor buildup in the crankcase ventilation system
- Vacuum irregularities related to PCV flow
- Emission control service needs on listed Toyota and Lexus vehicles
Installation Notes and Tips
- Verify thread size and hose diameter before installation.
- Inspect the PCV hose for cracks, soft spots, or oil saturation before reassembly.
- Use the listed fitment notes to confirm the correct production date range, including 2006 Camry, Highlander, Sienna, and Solara applications with cutoff dates.
- Because no gasket is included, reuse or replace sealing components as required by the vehicle setup.
- Confirm the valve seats fully and the hose connection is secure after installation.
Quality Assurance
Standard Ignition supplies this PCV valve as a direct-fit service part for the listed Toyota and Lexus applications. The V386 is built with metal construction and application-specific dimensions to support proper crankcase ventilation service.
- Fits 2004-2006 Lexus RX330, N/A
- Fits 2004-2005 Lexus ES330, N/A
- Fits 2002-2003 Lexus ES300, N/A
- Fits 2002-2003 Lexus RX300, N/A
- Fits 2003-2004 Toyota Avalon, N/A
- Fits 2003-2005 Toyota Sienna, N/A
- Fits 2004-2005 Toyota Solara, N/A
- Fits 2002-2005 Toyota Highlander, N/A
- Fits 2004-2006 Toyota Camry, N/A
- Fits 2003 Toyota Camry, N/A
- Fits 2006 Toyota Camry, N/A, to 1/06
- Fits 2006 Toyota Highlander, N/A, to 11/05
- Fits 2006 Toyota Sienna, N/A, to 1/06
- Fits 2006 Toyota Solara, N/A, to 1/06
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Lexus | RX330 | — | — | — | N/A | — |
| 2006 | Toyota | Camry | 3.3L | V6 | — | N/A | To 1/06 |
| 2006 | Toyota | Camry | 3.0L | V6 | — | N/A | — |
| 2006 | Toyota | Highlander | 3.3L | V6 | GAS | N/A | To 11/05 |
| 2006 | Toyota | Sienna | — | — | — | N/A | To 1/06 |
| 2006 | Toyota | Solara | 3.3L | V6 | — | N/A | To 1/06 |
| 2005 | Lexus | ES330 | — | — | — | N/A | — |
| 2005 | Lexus | RX330 | — | — | — | N/A | — |
| 2005 | Toyota | Camry | 3.0L | V6 | — | N/A | — |
| 2005 | Toyota | Camry | 3.3L | V6 | — | N/A | — |
| 2005 | Toyota | Highlander | 3.3L | V6 | — | N/A | — |
| 2005 | Toyota | Sienna | — | — | — | N/A | — |
| 2005 | Toyota | Solara | 3.3L | V6 | — | N/A | — |
| 2004 | Lexus | ES330 | — | — | — | N/A | — |
| 2004 | Lexus | RX330 | — | — | — | N/A | — |
| 2004 | Toyota | Avalon | — | — | — | N/A | — |
| 2004 | Toyota | Camry | 3.0L | V6 | — | N/A | — |
| 2004 | Toyota | Camry | 3.3L | V6 | — | N/A | — |
| 2004 | Toyota | Highlander | 3.3L | V6 | — | N/A | — |
| 2004 | Toyota | Sienna | — | — | — | N/A | — |
| 2004 | Toyota | Solara | 3.3L | V6 | — | N/A | — |
| 2003 | Lexus | ES300 | — | — | — | N/A | — |
| 2003 | Lexus | RX300 | — | — | — | N/A | — |
| 2003 | Toyota | Avalon | — | — | — | N/A | — |
| 2003 | Toyota | Camry | 3.0L | V6 | — | N/A | From 1/03 |
| 2003 | Toyota | Highlander | 3.0L | V6 | — | N/A | — |
| 2003 | Toyota | Sienna | 3.0L | V6 | — | N/A | — |
| 2002 | Lexus | ES300 | — | — | — | N/A | — |
| 2002 | Lexus | RX300 | — | — | — | N/A | — |
| 2002 | Toyota | Highlander | 3.0L | V6 | — | N/A | — |
