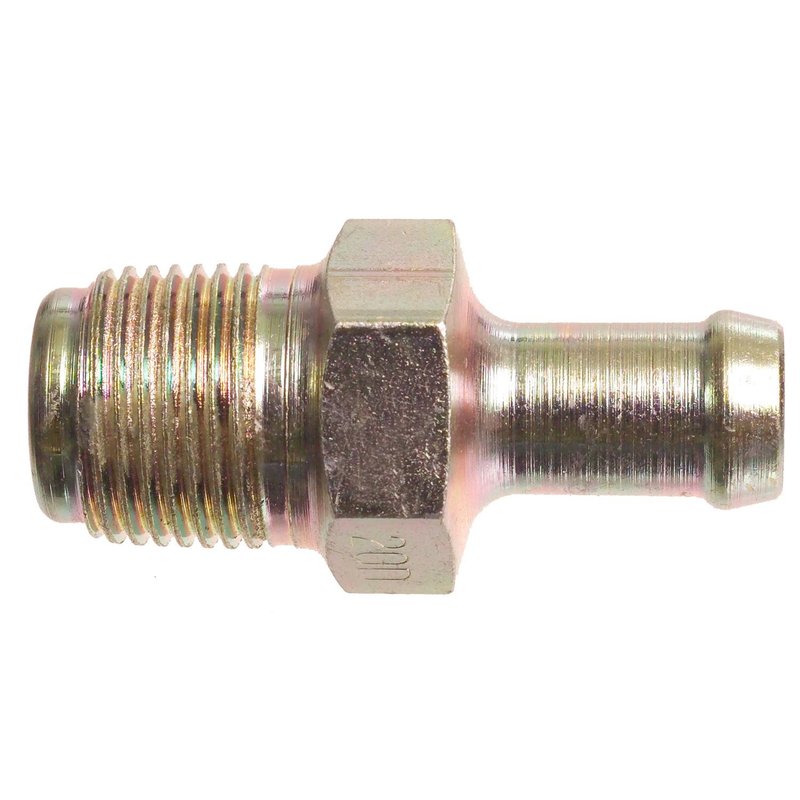

Standard Ignition V405 PCV Valve

PCV Valve for Nissan Sentra

Standard Ignition V405 is a screw-in PCV valve built for crankcase ventilation service on select Nissan Sentra models. It uses a metal body with a straight nipple and 3/8 NPT thread size for a direct replacement style installation.

Compatible With 2003-2006 Nissan Sentra, N/A. This Standard Ignition V405 PCV valve is also referenced by part numbers 2-9547, 1181053J00, and PCV547 for the same application.

Key Features

• Part type: PCV valve for the emission control and crankcase ventilation system
• Brand: Standard Ignition
• Part number: V405
• Screw-in attachment method with 3/8 NPT thread size
• Metal construction with gold finish
• Straight nipple orientation
• Male end design with no connector, cap, gasket, O-ring, or hose connector included
• Hose size: 10 mm
• Inlet diameter: 0.23 in. (5.842 mm)
• Outlet diameter: 0.21 in. (5.334 mm)

Product Details

The Standard Ignition V405 PCV valve regulates crankcase vapors as part of the vehicle’s emission control system. On 2003-2006 Nissan Sentra applications, a properly functioning PCV valve helps maintain crankcase ventilation flow and supports stable engine operation by replacing a worn or restricted valve with the correct screw-in metal design. The V405 is a direct-fit style service part for Nissan Sentra owners searching for a PCV valve replacement, crankcase ventilation valve, or emission control valve by part number V405.

Common Issues This Part May Address

• Excessive crankcase pressure from a restricted PCV valve
• Oil vapor buildup in the crankcase ventilation system
• Rough idle related to a sticking or clogged valve
• Oil leaks caused by poor crankcase ventilation flow
• Check engine concerns tied to PCV system performance

Installation Notes and Tips

Verify the thread size, hose size, and nipple orientation before installation. This valve installs with a screw-in connection and does not include a gasket, O-ring, cap, or hose connector, so reuse or source any required sealing components separately if your application calls for them. Confirm the vehicle is a 2003-2006 Nissan Sentra before ordering, and compare the removed part to Standard Ignition V405 for match-up.

Quality Assurance

Standard Ignition supplies replacement emission control components built to match common service requirements for OE-style fitment and function. The V405 is identified for direct replacement use on listed Nissan Sentra applications and cross-references to 2-9547, 1181053J00, and PCV547.
