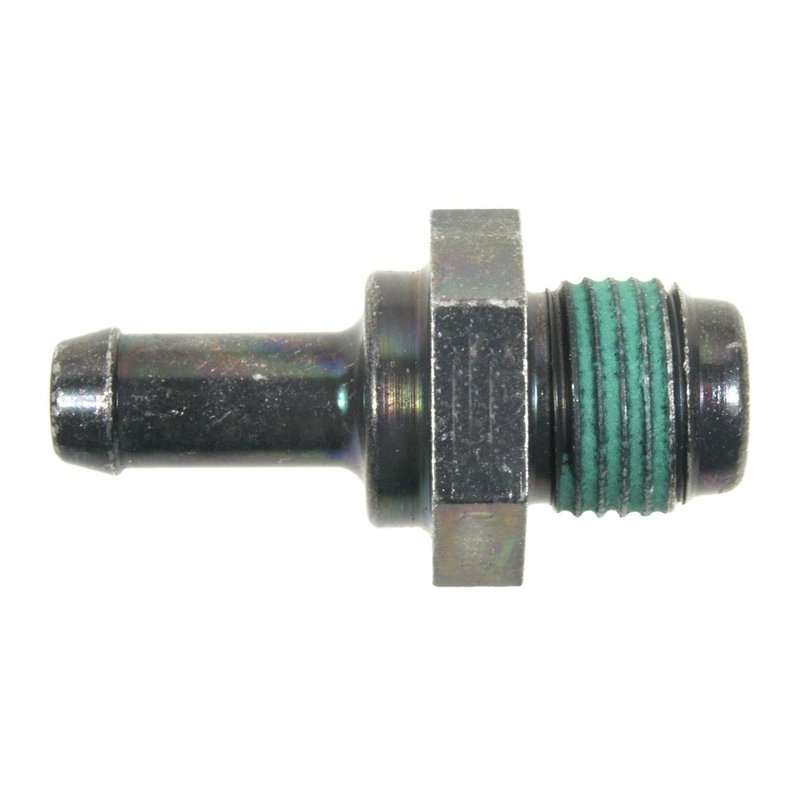

Standard Ignition V411 PCV Valve
| Brand | Standard Ignition V411 |
|---|---|
| Hose Size - Inches | 1 |
| Nipple Orientation | Straight |
| Fits | Pontiac, Toyota, and Chevrolet · 26 vehicles |
Screw-in design. Installs with a 3/8 NPT thread for a secure fit.
Metal construction. Built for dependable crankcase ventilation performance.
Straight hose connection. Uses one hose connector for a simple setup.
Cross-references Anchor 9863, Standard Ignition V411 and T Series V411T for the same application. See all 7.
Standard Ignition V411 PCV Valve Overview
The Standard Ignition V411 is a screw-in PCV valve built for crankcase ventilation service on select Toyota, Pontiac, and Chevrolet applications. It uses a metal body with a straight nipple and a 3/8 NPT thread size, making it a direct-service replacement for vehicles that call for this style of valve.
For shoppers searching for a PCV valve for Toyota Corolla, Toyota Matrix, Pontiac Vibe, or Chevrolet Prizm, the V411 provides the correct threaded design and hose connection layout for the listed applications.
Key Features
- Standard Ignition V411 PCV valve for emission control and crankcase ventilation service
- Screw-in attachment method with 3/8 NPT thread size
- Metal construction with black finish
- Straight nipple orientation
- One hose connector with 1-inch hose size
- No cap, gasket, connector, or mounting bracket included
- Inlet diameter: 0.21 in. (5.334 mm)
- Outlet diameter: 0.17 in. (4.318 mm)
Detailed Description
The Standard Ignition V411 PCV Valve is used in crankcase ventilation systems to service the valve connection specified by the vehicle application. Its screw-in design, metal body, and straight nipple configuration support a secure threaded installation where the original part uses a 3/8 NPT style connection. This part number is commonly searched as Standard Ignition V411 and V411 PCV valve for Toyota Corolla and Toyota Matrix service.
Compatible With: 2003-2008 Pontiac Vibe, N/A; 2006-2008 Toyota Corolla, N/A, exc. Japan built; 2003 Toyota Corolla, N/A, exc. Japan built; 2008 Toyota Matrix, N/A; 2004-2005 Toyota Matrix, N/A; 2006-2007 Toyota Matrix, N/A; 2005 Toyota Corolla, N/A; 2000-2002 Chevrolet Prizm, N/A; 2002 Toyota Corolla, N/A, threaded; 2001 Toyota Corolla, N/A, straight.
This part cross-references Anchor 9863 for the same application.
Common Issues This Part Can Address
- Crankcase ventilation valve replacement on a worn or sticking PCV valve
- Incorrect threaded fitment when the original valve uses a screw-in design
- Vacuum routing concerns at the valve connection point
- Service replacement for emission control maintenance on listed Toyota, Pontiac, and Chevrolet models
- Restoring the specified hose-to-valve connection on the intake side
Installation Notes and Tips
Verify the thread style, inlet and outlet dimensions, and hose connection before installation. This valve uses a screw-in attachment method and a straight nipple orientation, so confirm the engine-side port matches the listed 3/8 NPT specification and the vehicle notes shown for your application. Use the fitment notes to distinguish between Corolla and Matrix applications, including Japan-built exclusions where listed.
Quality Assurance
Standard Ignition supplies this PCV valve as an OE-style service part for the listed applications. The V411 is built with a metal body and application-specific dimensions to support proper replacement selection for crankcase ventilation service.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | Pontiac | Vibe | — | — | — | — | N/A | M16 x 1.5 Thread |
| 2008 | Toyota | Corolla | — | — | 1.8L | L4 | N/A | Exc. Japan Built |
| 2008 | Toyota | Matrix | — | — | 1.8L | L4 | N/A | — |
| 2007 | Pontiac | Vibe | — | — | — | — | N/A | M16 x 1.5 Thread |
| 2007 | Toyota | Corolla | — | — | 1.8L | L4 | N/A | Exc. Japan Built |
| 2007 | Toyota | Matrix | — | — | — | — | N/A | OE No. 12204-22040, 41 |
| 2006 | Pontiac | Vibe | — | — | 1.8L | L4 | N/A | M16 x 1.5 Thread |
| 2006 | Toyota | Corolla | CE | — | — | — | N/A | Exc. Japan Built |
| 2006 | Toyota | Corolla | S | — | — | — | N/A | Exc. Japan Built |
| 2006 | Toyota | Corolla | LE | — | — | — | N/A | Exc. Japan Built |
| 2006 | Toyota | Matrix | Base | — | — | — | N/A | OE No. 12204-22040, 41 |
| 2006 | Toyota | Matrix | XR | — | — | — | N/A | OE No. 12204-22040, 41 |
| 2005 | Pontiac | Vibe | — | — | 1.8L | L4 | N/A | M16 x 1.5 Thread |
| 2005 | Toyota | Corolla | — | — | 1.8L | L4 | N/A | — |
| 2005 | Toyota | Matrix | Base | FWD | — | — | N/A | — |
| 2005 | Toyota | Matrix | XR | FWD | — | — | N/A | — |
| 2004 | Pontiac | Vibe | — | — | 1.8L | L4 | N/A | M16 x 1.5 Thread |
| 2004 | Toyota | Matrix | XR | FWD | — | — | N/A | — |
| 2004 | Toyota | Matrix | Base | FWD | — | — | N/A | — |
| 2003 | Pontiac | Vibe | — | — | 1.8L | L4 | N/A | M16 x 1.5 Thread |
| 2003 | Toyota | Corolla | — | — | — | — | N/A | Exc. Japan Built |
| 2002 | Chevrolet | Prizm | — | — | — | — | N/A | M16 x 1.5 Thread |
| 2002 | Toyota | Corolla | — | — | 1.8L | L4 | N/A | Threaded |
| 2001 | Chevrolet | Prizm | — | — | — | — | N/A | M16 x 1.5 Thread |
| 2001 | Toyota | Corolla | — | — | 1.8L | L4 | N/A | Straight; OE No. 12204-22040, 41 |
| 2000 | Chevrolet | Prizm | — | — | — | — | N/A | M16 x 1.5 Thread |
