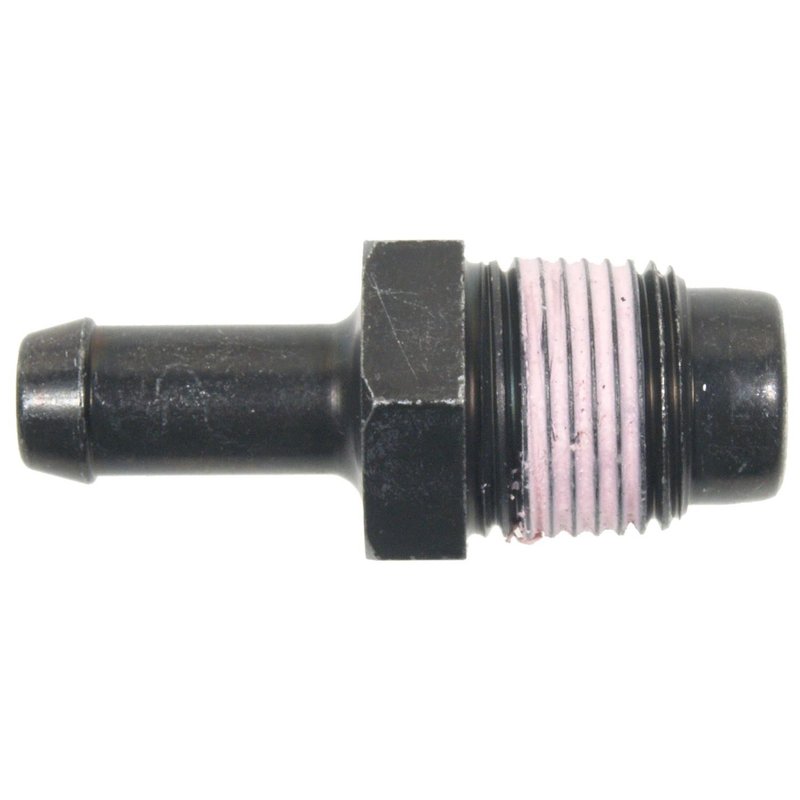

Standard Ignition V428 PCV Valve
| Brand | Standard Ignition V428 |
|---|---|
| Connector Gender | No Connector |
| Contents | Valve |
| Nipple Orientation | Straight |
| Fits | Suzuki and Chevrolet · 12 vehicles |
Screw-in fit. Installs with a 3/8 NPT thread for a secure, straightforward connection.
Metal construction. Durable valve body with a black finish for a clean, corrosion-resistant look.
Dual hose connectors. Straight nipple design with two hose connections for efficient crankcase ventilation.
Cross-references HOLSTEIN 2PCV0089, Standard Ignition V428 and 2-9570 for the same application. See all 13.
PCV Valve for Suzuki and Chevrolet Applications
Standard Ignition V428 is a screw-in PCV valve built for crankcase ventilation service on select Suzuki and Chevrolet vehicles. It uses a metal body with a straight nipple layout and dual hose connectors to support the original ventilation routing on listed applications.
- Screw-in attachment method
- Metal construction with black finish
- Straight nipple orientation
- 2 hose connectors
- 3/8 NPT thread size
- Inlet diameter: 0.22 in. (5.588 mm)
- Outlet diameter: 0.16 in. (4.064 mm)
- No cap, gasket, connector, or mounting bracket included
Detailed Product Overview
Standard Ignition V428 is a replacement PCV valve for crankcase ventilation systems in 2004-2008 Suzuki Grand Vitara, 2004-2006 Suzuki XL-7, 2004 Chevrolet Tracker, 2004 Suzuki Vitara, and 2002-2003 Chevrolet Tracker with thread type noted for those model years. This PCV valve helps maintain proper crankcase ventilation routing by replacing a worn or restricted valve with the correct screw-in design and 3/8 NPT thread specification. The V428 part number is also referenced in aftermarket interchange listings for the same application.
This part cross-references Holstein 2PCV0089 for the same application.
What It Helps Address
- Excess crankcase pressure caused by a sticking or restricted PCV valve
- Rough idle related to ventilation flow issues
- Oil vapor buildup in the crankcase ventilation system
- Unstable air-fuel control from a faulty PCV valve
- Ventilation service needs on Suzuki Grand Vitara, Suzuki XL-7, and Chevrolet Tracker models
Installation Notes and Tips
Verify thread size, hose routing, and inlet/outlet dimensions before installation. The screw-in design and straight nipple orientation should match the original service location on the listed vehicles. Because no gasket is included, inspect the sealing surfaces and replace any worn related components during service. Confirm fitment by year, make, model, and thread type before ordering Standard Ignition V428.
Quality Assurance
Standard Ignition supplies emission control components for crankcase ventilation service, and V428 is built to the listed dimensional and connection specifications for the confirmed applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2007 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2006 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2006 | Suzuki | XL-7 | — | — | N/A | — |
| 2005 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2005 | Suzuki | XL-7 | — | — | N/A | — |
| 2004 | Chevrolet | Tracker | 2.5L | V6 | N/A | — |
| 2004 | Suzuki | Grand Vitara | — | — | N/A | — |
| 2004 | Suzuki | Vitara | — | — | N/A | — |
| 2004 | Suzuki | XL-7 | — | — | N/A | — |
| 2003 | Chevrolet | Tracker | 2.5L | V6 | N/A | Thread Type |
| 2002 | Chevrolet | Tracker | 2.5L | V6 | N/A | Thread Type |
