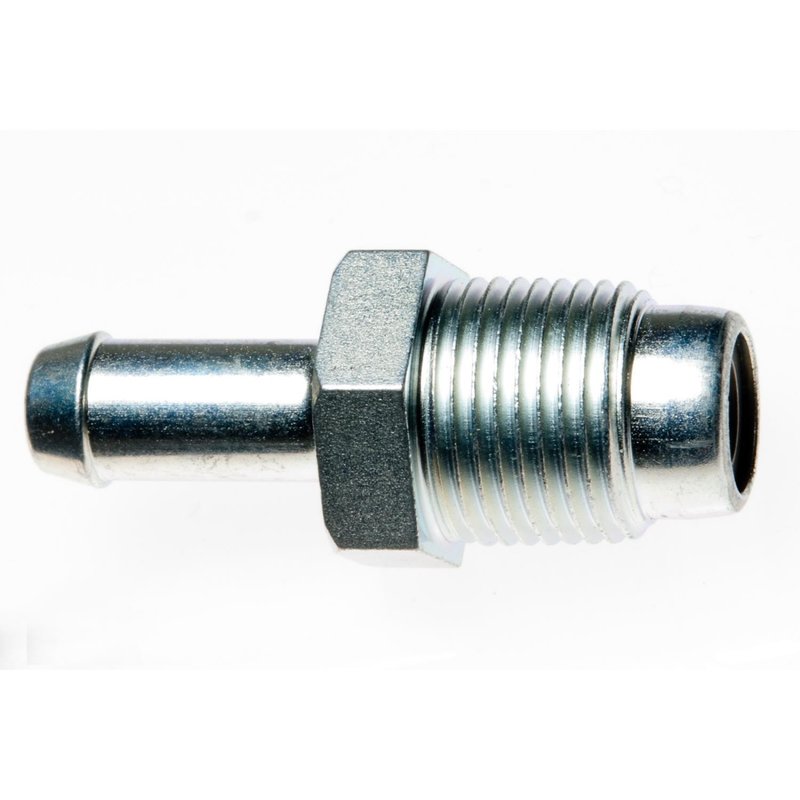

Standard Ignition V505 PCV Valve
| Brand | Standard Ignition V505 |
|---|---|
| Contents | Valve |
| Hose Size - Inches | 1/4 |
| Hose Size - mm | 8 mm |
| Thread Size - Metric | M16 x 1.5 |
| Thread Size - NPT | 5/8 - 18 |
| Fits | Lexus and Toyota · 58 vehicles |
Screw-in design. Installs with a 3/8 NPT thread for a secure, direct fit.
Metal construction. Provides a durable valve body with a silver finish.
PCV valve. Helps regulate crankcase ventilation through a single hose connection.
Cross-references Beck/Arnley 045-0443, Gates EMH9017 and Standard Ignition V505 for the same application. See all 10.
PCV Valve for Toyota and Lexus Applications
Standard Ignition V505 is a metal, screw-in PCV valve for crankcase ventilation service on select Toyota and Lexus vehicles. It is built with a silver finish, one 1/4 in. hose connector, and threaded mounting for direct replacement service on supported applications.
Compatible With 2010-2018 Lexus ES350, 2010-2018 Toyota Avalon, 2010-2017 Toyota Camry, 2010-2016 Toyota Highlander, 2010-2015 Lexus RX350, 2010-2015 Toyota Sienna, 2010-2015 Toyota Venza, and 2010-2012 Toyota RAV4.
- Standard Ignition V505 PCV valve for crankcase ventilation service
- Screw-in attachment method with metal construction
- 1/4 in. hose connector; 8 mm hose size
- Thread sizes: 3/8 NPT, M16 x 1.5, and 5/8-18 NPT listed for application reference
- Silver finish with valve only contents
- No cap, gasket, connector, or mounting bracket included
Detailed Product Overview
The V505 PCV valve regulates crankcase ventilation flow in supported Toyota and Lexus engines, helping maintain proper vacuum balance and vapor routing through the emission control system. Its screw-in, metal design and single hose connection make it a direct-service replacement for vehicles such as the Toyota Camry, Toyota Highlander, and Lexus RX350 within the listed model years. Standard Ignition V505 is also cross-referenced to Beck/Arnley 045-0443 and Gates EMH9017 for the same application.
Common Issues This Part Addresses
- Rough idle caused by a sticking or restricted PCV valve
- Excess crankcase pressure from poor ventilation flow
- Oil vapor buildup in the crankcase ventilation system
- Vacuum irregularities related to worn PCV components
- Emission control service needs on listed Toyota and Lexus models
Installation Notes and Tips
Verify thread size and hose connection before installation. This valve uses a screw-in mounting style and does not include a gasket, cap, connector, or bracket, so reuse or source any required vehicle-specific sealing components separately. Confirm the engine application against the vehicle’s original PCV valve specification before service.
Quality Assurance
Standard Ignition supplies emission control components for service replacement applications, and the V505 is built as a metal PCV valve for the listed fitments. Confirm all dimensions and thread specifications during parts matching to ensure proper installation on the intended Toyota or Lexus vehicle.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2018 | Lexus | ES350 | — | — | — | — | N/A | — |
| 2018 | Toyota | Avalon | — | — | — | — | N/A | — |
| 2017 | Lexus | ES350 | — | — | — | — | N/A | — |
| 2017 | Toyota | Avalon | — | — | — | — | N/A | — |
| 2017 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2016 | Lexus | ES350 | — | — | — | — | N/A | — |
| 2016 | Toyota | Avalon | — | — | — | — | N/A | — |
| 2016 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2016 | Toyota | Highlander | — | 3.5L | V6 | — | N/A | — |
| 2015 | Lexus | ES350 | — | — | — | — | N/A | — |
| 2015 | Lexus | RX350 | — | — | — | — | N/A | — |
| 2015 | Toyota | Avalon | — | — | — | — | N/A | — |
| 2015 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2015 | Toyota | Highlander | — | 3.5L | V6 | — | N/A | — |
| 2015 | Toyota | Sienna | — | — | — | — | N/A | — |
| 2015 | Toyota | Venza | — | 3.5L | V6 | — | N/A | — |
| 2014 | Lexus | ES350 | — | — | — | — | N/A | — |
| 2014 | Lexus | RX350 | — | — | — | — | N/A | — |
| 2014 | Toyota | Avalon | — | 3.5L | V6 | — | N/A | — |
| 2014 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2014 | Toyota | Highlander | — | 3.5L | V6 | — | N/A | — |
| 2014 | Toyota | Sienna | — | — | — | — | N/A | — |
| 2014 | Toyota | Venza | — | 3.5L | V6 | — | N/A | — |
| 2013 | Lexus | ES350 | — | — | — | — | N/A | — |
| 2013 | Lexus | RX350 | — | — | — | — | N/A | — |
| 2013 | Toyota | Avalon | — | 3.5L | V6 | — | N/A | — |
| 2013 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2013 | Toyota | Highlander | — | 3.5L | V6 | GAS | N/A | — |
| 2013 | Toyota | Sienna | — | — | — | — | N/A | — |
| 2013 | Toyota | Venza | — | 3.5L | V6 | — | N/A | — |
| 2012 | Lexus | ES350 | Base | — | — | — | N/A | — |
| 2012 | Lexus | RX350 | — | — | — | — | N/A | — |
| 2012 | Toyota | Avalon | Base | — | — | — | N/A | — |
| 2012 | Toyota | Avalon | Limited | — | — | — | N/A | — |
| 2012 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2012 | Toyota | Highlander | Base | 3.5L | V6 | — | N/A | — |
| 2012 | Toyota | Highlander | Limited | 3.5L | V6 | — | N/A | — |
| 2012 | Toyota | RAV4 | — | 3.5L | V6 | — | N/A | — |
| 2012 | Toyota | Sienna | — | 3.5L | V6 | — | N/A | — |
| 2012 | Toyota | Venza | — | 3.5L | V6 | — | N/A | — |
| 2011 | Lexus | ES350 | Base | — | — | — | N/A | — |
| 2011 | Lexus | RX350 | — | — | — | — | N/A | — |
| 2011 | Toyota | Avalon | Limited | — | — | — | N/A | — |
| 2011 | Toyota | Avalon | XLS | — | — | — | N/A | — |
| 2011 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2011 | Toyota | Highlander | Base | 3.5L | V6 | — | N/A | — |
| 2011 | Toyota | Highlander | Limited | 3.5L | V6 | — | N/A | — |
| 2011 | Toyota | RAV4 | — | 3.5L | V6 | — | N/A | — |
| 2011 | Toyota | Sienna | — | 3.5L | V6 | — | N/A | — |
| 2011 | Toyota | Venza | — | 3.5L | V6 | — | N/A | — |
| 2010 | Lexus | ES350 | — | 3.5L | V6 | — | N/A | — |
| 2010 | Lexus | RX350 | — | 3.5L | V6 | — | N/A | — |
| 2010 | Toyota | Avalon | — | — | — | — | N/A | — |
| 2010 | Toyota | Camry | — | 3.5L | V6 | — | N/A | — |
| 2010 | Toyota | Highlander | — | 3.5L | V6 | — | N/A | — |
| 2010 | Toyota | RAV4 | — | 3.5L | V6 | — | N/A | — |
| 2010 | Toyota | Sienna | — | — | — | — | N/A | — |
| 2010 | Toyota | Venza | — | 3.5L | V6 | — | N/A | — |
