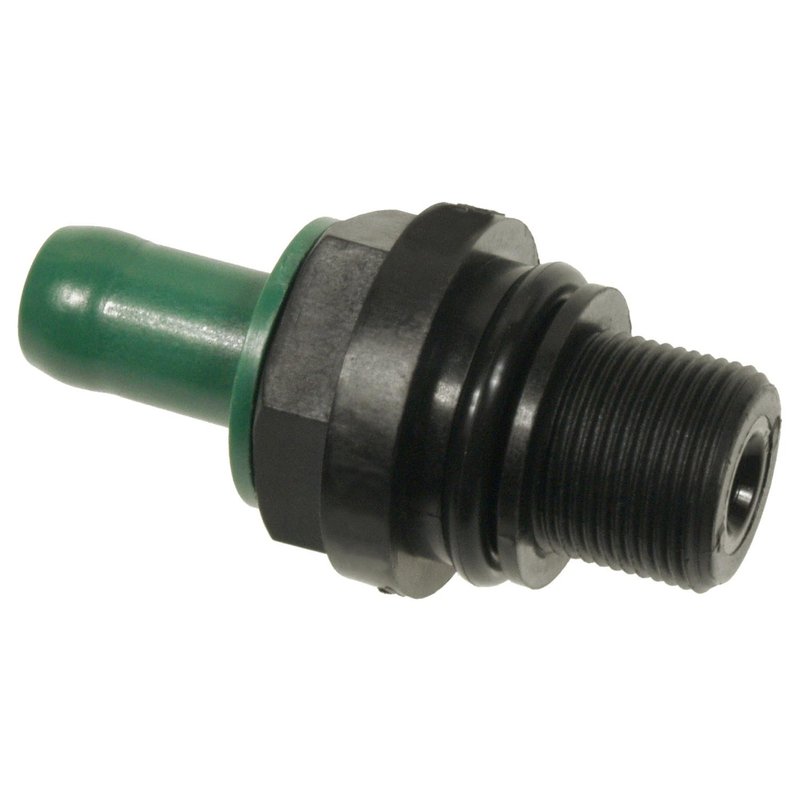

Standard Ignition V515 PCV Valve
| Brand | Standard Ignition V515 |
|---|---|
| Contents | Valve |
| Hose Size - Inches | 7/16 |
| Hose Size - mm | 10 mm |
| Thread Size - Metric | M16 x 1.5 |
| Thread Size - NPT | 5/8"-24 |
| Fits | Toyota · 36 vehicles |
Screw-in design. Installs with a threaded connection for a secure, straightforward fit.
Plastic construction. Lightweight material resists corrosion in crankcase ventilation service.
PCV valve. Helps regulate crankcase vapors in the emission control system.
Cross-references Beck/Arnley 045-0440, Standard Ignition V515 and 2-9657 for the same application. See all 10.
Standard Ignition V515 PCV Valve
Standard Ignition V515 is a screw-in PCV valve for crankcase ventilation service on select Toyota trucks and SUVs. It is built with a plastic body, one hose connector, and M16 x 1.5 thread size for direct replacement applications on Toyota Sequoia and Toyota Tundra.
Key Features
- PCV valve for emission control and crankcase ventilation service
- Screw-in attachment method with M16 x 1.5 thread size
- Plastic construction with black and green finish
- One hose connector with 7/16 in. hose size
- Inlet diameter: 0.22 in. (5.588 mm)
- Outlet diameter: 0.21 in. (5.334 mm)
- Standard Ignition V515 replacement part number
Detailed Description
This Standard Ignition V515 PCV valve is specified for crankcase ventilation service on 2009-2022 Toyota Sequoia and 2010-2021 Toyota Tundra. It uses a screw-in design with M16 x 1.5 metric threads and a 5/8"-24 NPT thread reference, along with a single 7/16 in. hose connection for the outlet side. The valve body is plastic and does not include a cap, gasket, or mounting bracket.
For buyers searching for a Toyota Sequoia PCV valve or Toyota Tundra PCV valve, V515 provides a direct-fit service part reference. Standard Ignition V515 also cross-references Beck/Arnley 045-0440 for the same application.
What It Helps Address
- Excess crankcase pressure
- Oil vapor buildup in the crankcase ventilation system
- Rough idle caused by a restricted PCV valve
- Oil consumption concerns related to ventilation flow issues
- Emission control faults tied to PCV system wear
Installation Notes and Tips
Confirm thread size, hose diameter, and vehicle application before installation. This valve installs by screw-in mounting and connects to a 7/16 in. hose; verify the hose end is in good condition and replace any damaged vacuum hose during service. Because no gasket is included, inspect the sealing surfaces and use the correct service procedure for the engine application.
Quality Assurance
Standard Ignition supplies replacement emission control components for service applications, and V515 is built to match the listed fitment and connection specifications for Toyota Sequoia and Toyota Tundra models.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Toyota | Sequoia | — | — | — | N/A | — |
| 2021 | Toyota | Sequoia | — | — | — | N/A | — |
| 2021 | Toyota | Tundra | — | — | — | N/A | — |
| 2020 | Toyota | Sequoia | — | — | — | N/A | — |
| 2020 | Toyota | Tundra | — | — | — | N/A | — |
| 2019 | Toyota | Sequoia | — | — | — | N/A | — |
| 2019 | Toyota | Tundra | — | — | — | N/A | — |
| 2018 | Toyota | Sequoia | — | — | — | N/A | — |
| 2018 | Toyota | Tundra | — | — | — | N/A | — |
| 2017 | Toyota | Sequoia | — | — | — | N/A | — |
| 2017 | Toyota | Tundra | — | — | — | N/A | — |
| 2016 | Toyota | Sequoia | — | — | — | N/A | — |
| 2016 | Toyota | Tundra | — | — | — | N/A | — |
| 2015 | Toyota | Sequoia | — | — | — | N/A | — |
| 2015 | Toyota | Tundra | — | — | — | N/A | — |
| 2014 | Toyota | Sequoia | — | — | — | N/A | — |
| 2014 | Toyota | Tundra | — | 4.6L | V8 | N/A | — |
| 2014 | Toyota | Tundra | — | 5.7L | V8 | N/A | — |
| 2013 | Toyota | Sequoia | — | — | — | N/A | — |
| 2013 | Toyota | Tundra | — | 4.6L | V8 | N/A | — |
| 2013 | Toyota | Tundra | — | 5.7L | V8 | N/A | — |
| 2012 | Toyota | Sequoia | SR5 | 4.6L | V8 | N/A | — |
| 2012 | Toyota | Sequoia | — | 5.7L | V8 | N/A | — |
| 2012 | Toyota | Tundra | Base | 4.6L | V8 | N/A | — |
| 2012 | Toyota | Tundra | — | 5.7L | V8 | N/A | — |
| 2011 | Toyota | Sequoia | Limited | 4.6L | V8 | N/A | — |
| 2011 | Toyota | Sequoia | SR5 | 4.6L | V8 | N/A | — |
| 2011 | Toyota | Sequoia | — | 5.7L | V8 | N/A | — |
| 2011 | Toyota | Tundra | — | 5.7L | V8 | N/A | — |
| 2011 | Toyota | Tundra | Base | 4.6L | V8 | N/A | — |
| 2011 | Toyota | Tundra | SR5 | 4.6L | V8 | N/A | — |
| 2010 | Toyota | Sequoia | — | 4.6L | V8 | N/A | — |
| 2010 | Toyota | Sequoia | — | 5.7L | V8 | N/A | — |
| 2010 | Toyota | Tundra | — | 5.7L | V8 | N/A | — |
| 2010 | Toyota | Tundra | — | 4.6L | V8 | N/A | — |
| 2009 | Toyota | Sequoia | — | 5.7L | V8 | N/A | — |
