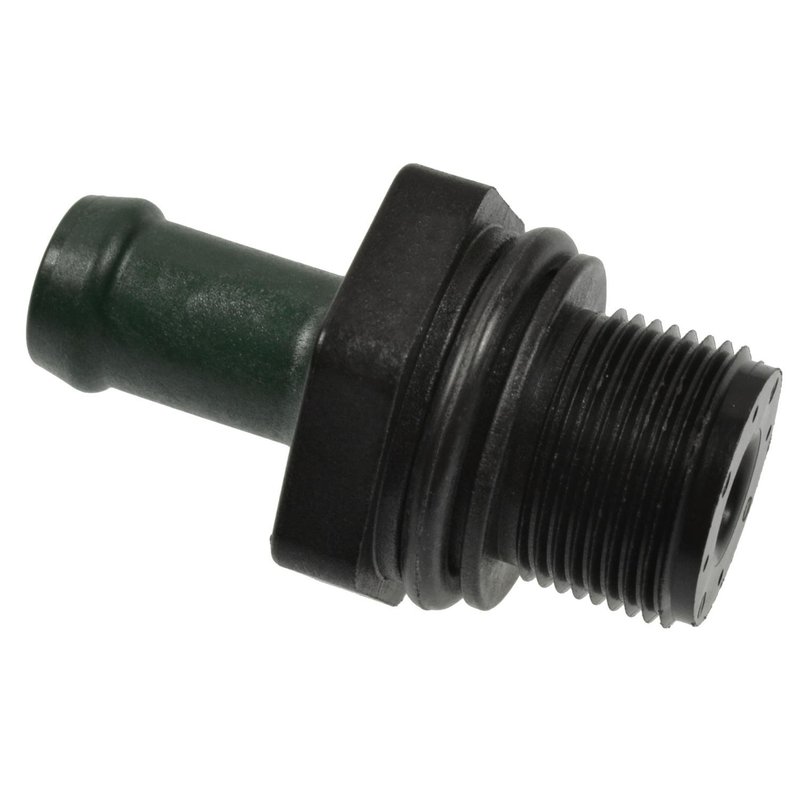

Standard Ignition V541 PCV Valve
| Brand | Standard Ignition V541 |
|---|---|
| Hose Size - Inches | 1.5" |
| Hose Size - mm | Refer to Inches |
| Nipple Orientation | Straight |
| Fits | Suzuki · 14 vehicles |
Screw-in design. Installs securely with a straightforward threaded connection.
Plastic construction. Lightweight material with a black finish for a clean look.
Straight nipple. Simple hose routing with one hose connector.
Cross-references Beck/Arnley 045-0450, Standard Ignition V541 and 2-9683 for the same application. See all 9.
Standard Ignition V541 PCV Valve
The Standard Ignition V541 PCV Valve is a screw-in crankcase ventilation valve built for direct replacement service on select Suzuki applications. It uses a plastic body with a straight nipple and a single hose connection to support proper crankcase ventilation on the 2009-2013 Suzuki Grand Vitara and 2010-2013 Suzuki SX4.
Key Features
- Screw-in PCV valve design for direct mounting
- Plastic construction with black finish
- Straight nipple orientation
- One hose connector with 1.5 in. hose size
- M16 x 1.0 thread size
- No cap, gasket, or mounting bracket included
- Standard Ignition V541 replacement part
Product Details
Standard Ignition V541 is a PCV valve for crankcase ventilation system service on the 2009-2013 Suzuki Grand Vitara and 2010-2013 Suzuki SX4. The screw-in attachment method and M16 x 1.0 thread size support a direct-fit replacement approach, while the 0.19 in. inlet and outlet diameters and straight nipple layout match the listed application requirements. This part cross-references Beck/Arnley 045-0450 for the same application.
What It Helps Address
- Rough idle related to restricted crankcase ventilation
- Excess crankcase pressure buildup
- Oil vapor control concerns in the ventilation system
- Vacuum flow issues caused by a worn PCV valve
- Emission control service needs on Suzuki Grand Vitara and Suzuki SX4 models
Installation Notes
Verify thread size, hose size, and connector layout before installation. The V541 installs with a screw-in attachment and uses one hose connection; no gasket is included, so inspect the sealing surfaces and related hoses during service. Confirm fitment for your exact year and model before replacing the valve.
Quality Assurance
Standard Ignition supplies replacement emission control components for service applications, and the V541 is built to match the listed fitment and dimensional specifications for the specified Suzuki vehicles.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Suzuki | Grand Vitara | — | — | — | N/A | — |
| 2013 | Suzuki | SX4 | — | — | — | N/A | — |
| 2012 | Suzuki | Grand Vitara | Limited | — | — | N/A | — |
| 2012 | Suzuki | Grand Vitara | Premium | — | — | N/A | — |
| 2012 | Suzuki | Grand Vitara | Ultimate Adventure Edition | — | — | N/A | — |
| 2012 | Suzuki | Grand Vitara | Base | 2.4L | L4 | N/A | — |
| 2012 | Suzuki | SX4 | — | — | — | N/A | — |
| 2011 | Suzuki | Grand Vitara | Base | — | — | N/A | — |
| 2011 | Suzuki | Grand Vitara | Limited | — | — | N/A | — |
| 2011 | Suzuki | Grand Vitara | Premium | — | — | N/A | — |
| 2011 | Suzuki | SX4 | — | — | — | N/A | — |
| 2010 | Suzuki | Grand Vitara | — | 2.4L | L4 | N/A | — |
| 2010 | Suzuki | SX4 | — | — | — | N/A | — |
| 2009 | Suzuki | Grand Vitara | — | 2.4L | L4 | N/A | — |
