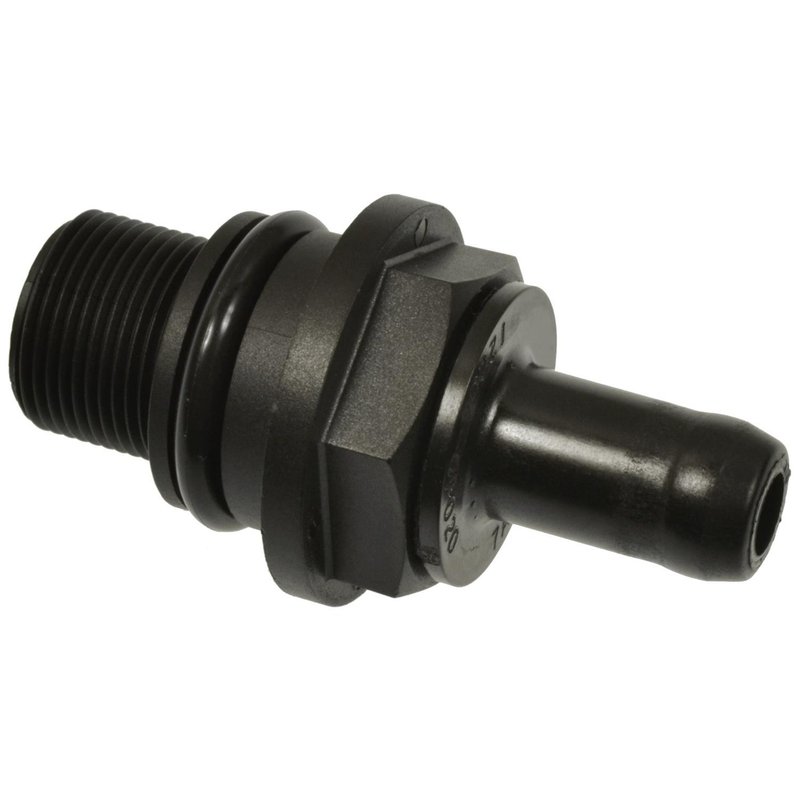

Standard Ignition V594 PCV Valve
| Brand | Standard Ignition V594 |
|---|---|
| Hose Size - Inches | 3/8" |
| Hose Size - mm | 10 mm |
| Nipple Orientation | Straight |
| Fits | Toyota · 23 vehicles |
Screw-in design. Installs securely with a straightforward threaded connection.
Plastic construction. Lightweight material with a black finish for a clean look.
O-ring included. Helps provide a tighter seal during installation.
Cross-references Beck/Arnley 045-0439, Gates EMH9018 and Standard Ignition V594 for the same application. See all 8.
Standard Ignition V594 PCV Valve
Standard Ignition V594 is a screw-in PCV valve for crankcase ventilation service on select Toyota applications. It uses a plastic body with a straight nipple, M16 x 1.0 thread size, and a 3/8 in. hose connection to support a direct replacement-style repair.
Compatible With Toyota Camry, Tacoma, Sienna, and Highlander applications, this PCV valve is built with an included O-ring and no connector, cap, gasket, or hose connector. The V594 part number is also referenced in cross applications for service matching.
Key Features
- Screw-in PCV valve design for crankcase ventilation service
- Standard Ignition V594 replacement part number
- Plastic construction with black finish
- Straight nipple orientation
- 3/8 in. hose size, 10 mm hose size, and M16 x 1.0 thread size
- O-ring included for sealing at installation
- No connector, cap, gasket, hose connector, or mounting bracket included
Detailed Description
The Standard Ignition V594 PCV Valve regulates crankcase ventilation flow in supported Toyota engines by replacing a worn or restricted valve with a screw-in design. It is listed for 2018-2024 Toyota Camry, 2016-2023 Toyota Tacoma, 2016-2020 Toyota Sienna, and 2017-2019 Toyota Highlander, making it a direct-fit service part for those model years. This part cross-references Beck/Arnley 045-0439 and Gates EMH9018 for the same application.
With a 0.22 in. inlet diameter, 0.21 in. outlet diameter, and straight nipple layout, V594 is built for the specified hose and threaded connection points. The included O-ring helps support a proper seal during replacement on Toyota Camry, Tacoma, Sienna, and Highlander crankcase ventilation systems.
What It Helps Fix
- Excess crankcase pressure from a restricted PCV valve
- Rough idle caused by unstable ventilation flow
- Oil vapor buildup in the crankcase ventilation system
- Vacuum-related drivability issues tied to PCV wear
- Service replacement for a leaking or sticking PCV valve
Installation Notes and Tips
Verify the thread size, hose size, and valve orientation before installation. The V594 installs as a screw-in PCV valve and uses an included O-ring for sealing; no separate gasket, cap, or hose connector is provided. Confirm vehicle application by year, make, and model before service, especially on Toyota Camry, Tacoma, Sienna, and Highlander engines.
Quality Assurance
Standard Ignition supplies replacement emission control components for crankcase ventilation service. V594 is built to match the listed fitment and connection specifications for the supported Toyota applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Toyota | Camry | 3.5L | V6 | — | N/A | — |
| 2023 | Toyota | Camry | 3.5L | V6 | — | N/A | — |
| 2023 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
| 2022 | Toyota | Camry | 3.5L | V6 | — | N/A | — |
| 2022 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
| 2021 | Toyota | Camry | 3.5L | V6 | — | N/A | — |
| 2021 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
| 2020 | Toyota | Camry | 3.5L | V6 | — | N/A | — |
| 2020 | Toyota | Sienna | — | — | — | N/A | — |
| 2020 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
| 2019 | Toyota | Camry | 3.5L | V6 | — | N/A | — |
| 2019 | Toyota | Highlander | — | — | — | N/A | — |
| 2019 | Toyota | Sienna | — | — | — | N/A | — |
| 2019 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
| 2018 | Toyota | Camry | 3.5L | V6 | — | N/A | — |
| 2018 | Toyota | Highlander | 3.5L | V6 | GAS | N/A | — |
| 2018 | Toyota | Sienna | — | — | — | N/A | — |
| 2018 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
| 2017 | Toyota | Highlander | — | — | — | N/A | — |
| 2017 | Toyota | Sienna | — | — | — | N/A | — |
| 2017 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
| 2016 | Toyota | Sienna | — | — | — | N/A | — |
| 2016 | Toyota | Tacoma | 3.5L | V6 | — | N/A | — |
