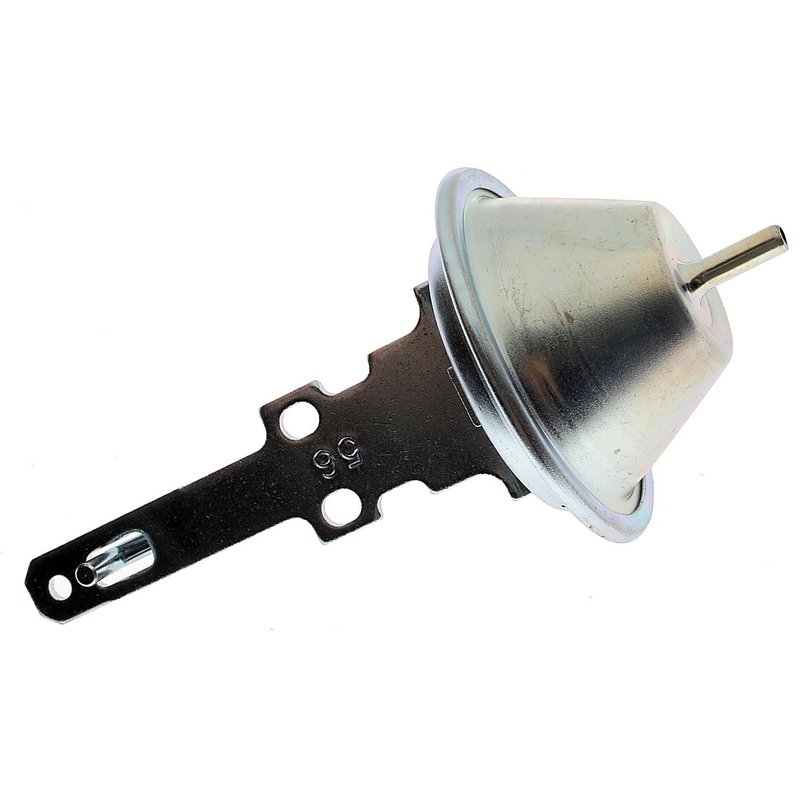

Standard Ignition VC-246 Distributor Vacuum Advance

Distributor Vacuum Advance for OE-Style Timing Control

Standard Ignition VC-246 is a distributor vacuum advance unit built for precise ignition advance calibration and consistent vacuum response. It is tested at up to 30 in-Hg to help verify leak-free operation, making it a direct-fit choice for classic Chevrolet and GMC ignition service.

Key Features

• Precision-calibrated distributor vacuum control for stable ignition advance
• Vacuum-tested at 30 in-Hg maximum to confirm sealing performance
• One hose connector for straightforward vacuum line connection
• Contents: distributor vacuum control
• Standard Ignition VC-246 for OE-style distributor service

Application Details

Compatible with distributor vacuum advance systems on 1975-1979 Chevrolet C10, C10 Suburban, C20, and C30; 1975 and 1977-1979 Chevrolet P30; 1979 Chevrolet P20; 1976-1978 Chevrolet K20 and K5 Blazer; 1977 Chevrolet K30; 1976 Chevrolet C20 Suburban, Caprice, G20, Impala, and K10; 1975-1976 Chevrolet G30; 1975 Chevrolet Bel Air, C20 Suburban, and El Camino; 1975-1976 GMC G25; 1976 GMC G35 and Jimmy; and 1979 GMC C1500, C1500 Suburban, C2500, C3500, K3500, P1500, and P3500. Standard Ignition VC-246 also cross-references 4V1055 and 57-7542 for the same application.

What It Helps Address

• Erratic ignition timing caused by a leaking vacuum advance diaphragm
• Slow or inconsistent timing response under engine vacuum
• Driveability issues tied to worn distributor vacuum control
• Vacuum loss that can affect throttle response and cruise performance
• Restoration or repair needs on OE-style Chevrolet and GMC distributors

Installation Notes and Tips

Verify distributor number and OE reference before installation, especially on 1975-1979 Chevrolet C10 and GMC C1500 applications. Inspect the vacuum hose, distributor canister linkage, and timing settings during service, then confirm advance operation with a vacuum source after installation. Use the vehicle’s service specifications for final ignition timing adjustment.

Quality Assurance

Standard Ignition has supplied ignition components to the automotive aftermarket since 1919 and maintains quality control from component manufacturing through finished product testing. VC-246 is vacuum-tested for leak resistance and built to support dependable distributor advance performance.
