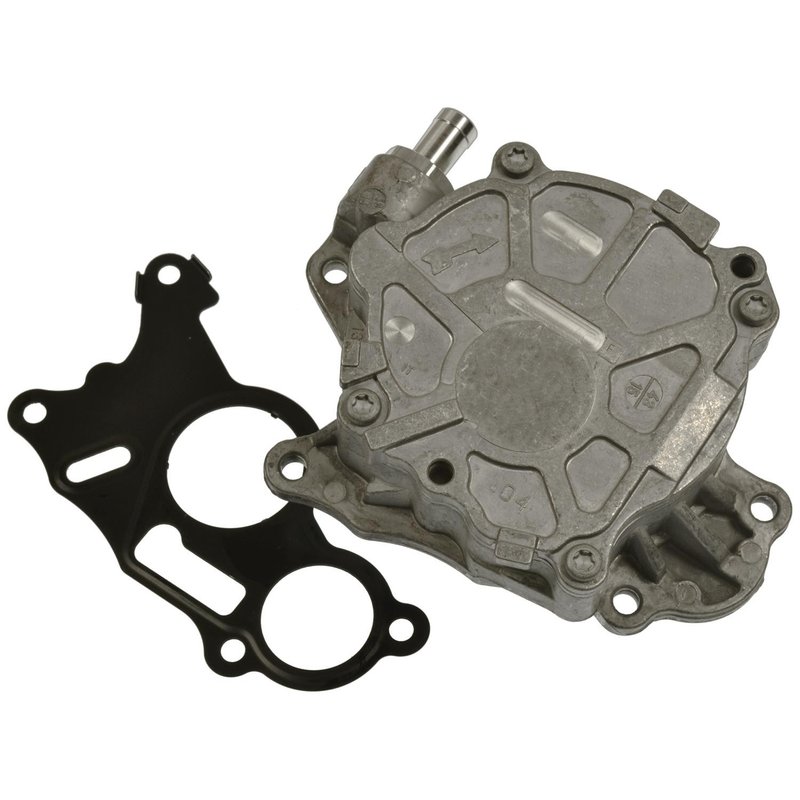

Standard Ignition VCP169 Vacuum Pump

Vacuum Pump for Volkswagen and Audi Applications

Standard Ignition VCP169 is a new mechanical vacuum pump with a belt drive and metal housing for select Volkswagen and Audi diesel applications. It is built with one vacuum port, a mounting bracket included, and gaskets included for service replacement on the listed vehicles.

Key Features

• Standard Ignition VCP169 vacuum pump
• Mechanical vacuum pump with belt drive system
• Metal housing for durable underhood use
• One vacuum port with a 0.23 in. (5.842 mm) inlet size
• Mounting bracket(s) included
• Gaskets included; gasket or seal included: No
• New replacement part with no pulley, relief valve, or hardware included

Detailed Description

The Standard Ignition VCP169 is a mechanical vacuum pump designed for emission control and vacuum system service on select Volkswagen Passat, Beetle, Jetta, and Golf models, as well as Audi A3 applications. This belt-driven pump uses a metal housing and a single vacuum port to support the vacuum supply required by the vehicle system. It cross-references OE-style part numbers such as 03L145100F and 2-41123 for the same application. Fits 2012-2015 Volkswagen Passat, 2013-2014 Volkswagen Beetle, 2009-2014 Volkswagen Jetta, 2010-2013 Audi A3, and 2012-2013 Volkswagen Golf.

Common Issues This Part Can Address

• Loss of vacuum supply in the engine-driven vacuum system
• Vacuum-related drivability concerns on diesel-equipped vehicles
• Brake assist or control-system issues tied to low vacuum output
• Oil seepage or wear-related failure in the original mechanical pump
• Replacement needs after pump noise, reduced output, or housing damage

Installation Notes and Tips

Verify the inlet size, mounting bracket configuration, and vehicle application before installation. This pump is belt driven and does not include a pulley, so reuse or confirm the existing drive components as needed. Gaskets are included, while hardware, O-rings, and a relief valve are not included.

Quality Assurance

Standard Ignition supplies replacement components for emission control and vacuum system service, and VCP169 is a new part built for the listed Volkswagen and Audi applications.
