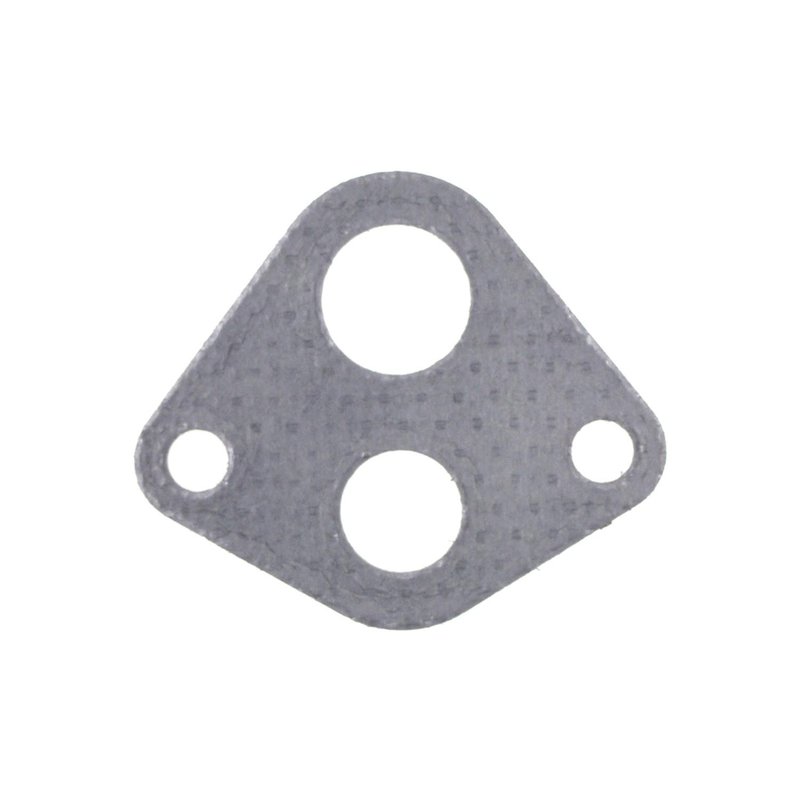

Standard Ignition VG163 EGR Valve Gasket

Overview of Standard Ignition VG163 EGR Valve Gasket

The Standard Ignition VG163 Exhaust Gas Recirculation (EGR) Valve Gasket is designed specifically for Isuzu I-Mark and Impulse models. This metal gasket ensures a reliable seal in the emission control system, helping maintain proper exhaust gas recirculation and engine performance.

• Gasket quantity: 1
• Inner diameters: 0.60 and 0.51 inches (15.48 and 13.19 mm)
• Length: 2.27 inches (57.658 mm)
• Width: 1.96 inches (49.784 mm)
• Thickness: 1/16 inch (1.52 mm)
• Material: Metal for durability and heat resistance
• Number of bolt holes: 2
• Port quantity: 2
• Compatible with Isuzu I-Mark and Impulse models

Detailed Product Description

The VG163 EGR valve gasket from Standard Ignition is engineered to provide a precise fit and effective sealing for the exhaust gas recirculation system on select Isuzu vehicles. Constructed from metal, this gasket withstands high temperatures and pressure fluctuations common in the EGR system. The dual inner diameters of 0.60 and 0.51 inches accommodate the specific port sizes, while the 2.27-inch length and 1.96-inch width ensure proper coverage and sealing surface. With two bolt holes and two ports, this gasket aligns accurately with the EGR valve and manifold, preventing exhaust leaks and maintaining emission control efficiency.

Common Applications and Issues Addressed

• Prevents exhaust gas leaks at the EGR valve connection
• Helps reduce engine rough idling caused by faulty seals
• Maintains proper EGR flow to reduce NOx emissions
• Prevents check engine light triggers related to EGR system leaks
• Supports engine performance by ensuring correct exhaust gas recirculation

Installation Notes and Tips

• Ensure mating surfaces are clean and free of old gasket material before installation
• Use the correct torque specifications for the two bolt holes to avoid gasket damage
• Inspect the EGR valve and ports for carbon buildup and clean if necessary
• Verify gasket orientation matches the port layout for proper sealing

Quality Assurance and Warranty

Standard Ignition manufactures the VG163 EGR valve gasket to meet OEM specifications for fit and function. The metal construction provides durability under high-temperature conditions typical of emission control systems. While specific warranty details may vary, Standard Ignition products generally come with a limited warranty against defects in material and workmanship to ensure reliability and customer confidence.
