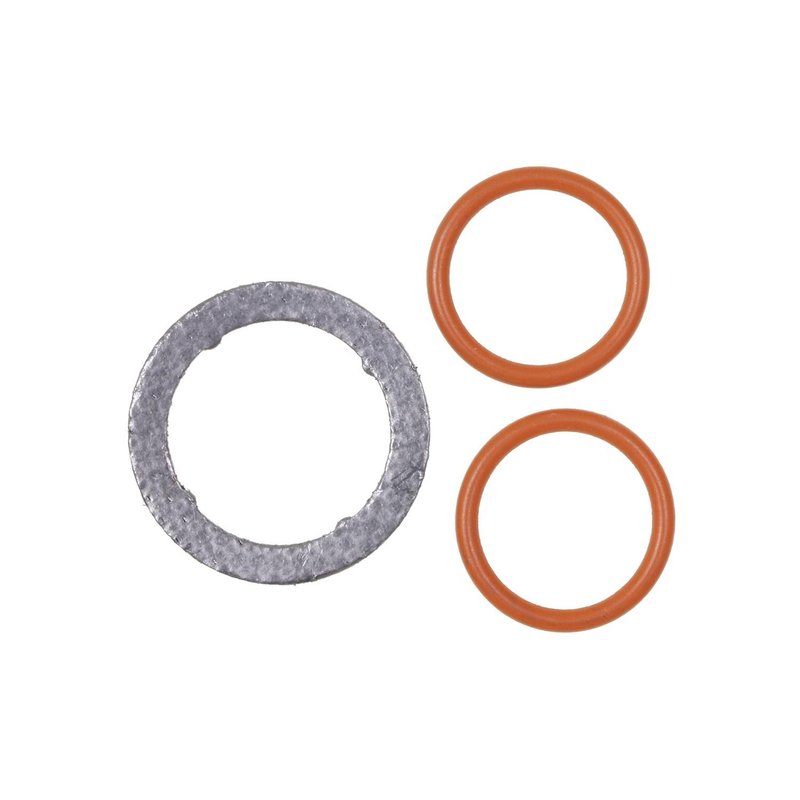

Standard Ignition VG169 EGR Valve Gasket
| Brand | Standard Ignition VG169 |
|---|---|
| Fits | Ford · 20 vehicles |
EGR valve gasket. Seals the exhaust gas recirculation valve for dependable emission-system performance.
Metal-rubber construction. Combines strength and flexibility for a tight, lasting seal.
Pipe gasket included. Adds the sealing piece needed for a complete installation.
Cross-references MAHLE GS33719, 2-25015 and 3C3Z9P455AB for the same application. See all 8.
Standard Ignition VG169 EGR Valve Gasket
Standard Ignition VG169 is an exhaust gas recirculation (EGR) valve gasket built for emission control service on select Ford Super Duty and Excursion applications. It uses a metal and rubber construction with a pipe gasket included to support a secure seal at the EGR connection.
Key Features
- Part number VG169 for EGR valve sealing service
- Metal and rubber construction for emission system use
- Inner diameter: 1.33 in. (33.82 mm)
- Outer diameter: 1.81 in. (46.03 mm)
- Thickness: 3/64 in. (1.27 mm)
- Pipe gasket included
- No bolt holes and no port quantity listed
- Cross-reference: MAHLE GS33719
Product Details
This Standard Ignition VG169 gasket is engineered for EGR valve sealing where a precise fit and stable sealing surface are required. Standard Ignition states that its EGR components are built with feature-rich design and controlled manufacturing processes, from component materials through finished product inspection. Compatible With 2003-2007 Ford F-250 Super Duty, 2003-2007 Ford F-350 Super Duty, 2003-2005 Ford Excursion, 2004-2005 Ford E-350 Club Wagon, and 2004-2007 Ford E-350 Super Duty. This part cross-references MAHLE GS33719 for the same application.
Common Issues This Part Addresses
- EGR valve exhaust leakage at the sealing surface
- Damaged or flattened gasket material during service
- Exhaust odor or soot around the EGR joint
- Unstable EGR sealing after valve removal and reinstallation
- Emission system service on Ford E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, and Excursion models
Installation Notes and Tips
Verify the gasket dimensions against the removed part before installation. Clean the mating surfaces thoroughly so the metal and rubber sealing faces can seat evenly. Confirm the EGR valve and pipe connection are aligned correctly before tightening to avoid distortion of the gasket. Use the vehicle-specific service procedure for the Ford E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, E-350 Club Wagon, or Excursion application.
Quality Assurance
Standard Ignition manufactures emission components with process control from component materials to finished product inspection. VG169 is built to support consistent sealing performance in EGR service applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Ford | E-350 Super Duty | 6.0L | V8 | N/A | — |
| 2007 | Ford | E-350 Super Duty | 6.0L | V8 | N/A | — |
| 2007 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | — |
| 2007 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | — |
| 2006 | Ford | E-350 Super Duty | 6.0L | V8 | N/A | — |
| 2006 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | — |
| 2006 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | — |
| 2005 | Ford | E-350 Club Wagon | 6.0L | V8 | N/A | — |
| 2005 | Ford | E-350 Super Duty | 6.0L | V8 | N/A | — |
| 2005 | Ford | Excursion | 6.0L | V8 | N/A | — |
| 2005 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | — |
| 2005 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | — |
| 2004 | Ford | E-350 Club Wagon | 6.0L | V8 | N/A | — |
| 2004 | Ford | E-350 Super Duty | 6.0L | V8 | N/A | — |
| 2004 | Ford | Excursion | 6.0L | V8 | N/A | — |
| 2004 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | — |
| 2004 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | — |
| 2003 | Ford | Excursion | — | — | N/A | — |
| 2003 | Ford | F-250 Super Duty | — | — | N/A | — |
| 2003 | Ford | F-350 Super Duty | — | — | N/A | — |
