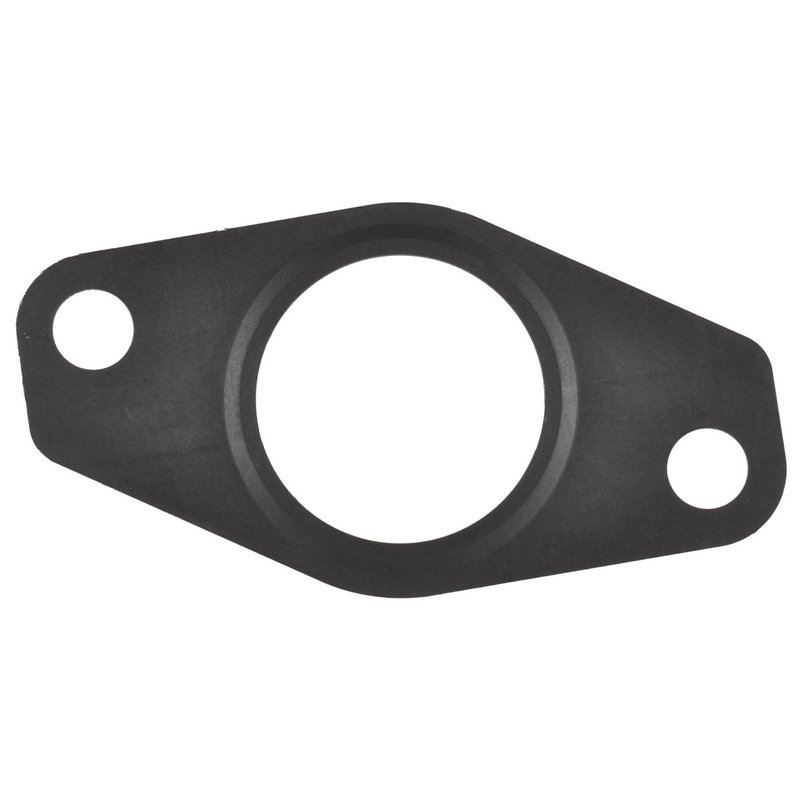

Standard Ignition VG245 Exhaust Gas Recirculation (EGR) Valve Gasket

Exhaust Gas Recirculation Valve Gasket for Toyota and Lexus

Standard Ignition VG245 is an exhaust gas recirculation (EGR) valve gasket built for sealing the EGR valve connection on select Toyota and Lexus hybrid applications. It is a steel gasket with a 1.31 in. inner diameter, 3.43 in. length, and 1/64 in. thickness for a precise sealing surface.

Compatible With 2010-2013 Toyota Prius, outlet; 2011-2017 Lexus CT200h; and 2012-2017 Toyota Prius V. Standard Ignition VG245 is also a direct cross-reference for OE-style replacement needs on the same application.

Key Features

• Steel construction for a durable sealing interface
• Single-port EGR valve gasket design
• 2-bolt-hole layout for the listed applications
• Inner diameter: 1.31 in. (33.43 mm)
• Overall length: 3.43 in. (87.122 mm)
• Thickness: 1/64 in. (0.51 mm)
• Width: 1.8 in. with 45.72 mm overall width
• Pipe gasket not included

Detailed Description

Standard Ignition VG245 is an emission control gasket used at the EGR valve connection to help maintain a tight seal between mating surfaces. The steel construction and thin profile support a stable fit where exhaust gas recirculation flow passes through a single port. This part number, VG245, is listed for 2010-2013 Toyota Prius outlet applications, 2011-2017 Lexus CT200h, and 2012-2017 Toyota Prius V, making it a focused replacement for these hybrid platforms.

This part cross-references OE-style numbers such as 2-25090 and EVG240 for the same application.

What It Is Used For

• Replacing a leaking or damaged EGR valve gasket
• Restoring a proper seal at the EGR valve outlet
• Addressing exhaust gas leakage around the valve flange
• Correcting fitment issues caused by a worn sealing surface
• Supporting emission control service on Toyota Prius, Prius V, and Lexus CT200h models

Installation Notes and Tips

Verify the EGR valve flange shape, bolt-hole count, and port layout before installation. Clean both mating surfaces thoroughly so the steel gasket seats evenly, and inspect the flange for warping or carbon buildup that could affect sealing. Confirm the application by model year and position, especially for 2010-2013 Toyota Prius outlet fitment.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for emission control service parts and sealing components. VG245 is built to match the listed dimensions and application requirements for the specified Toyota and Lexus vehicles.
