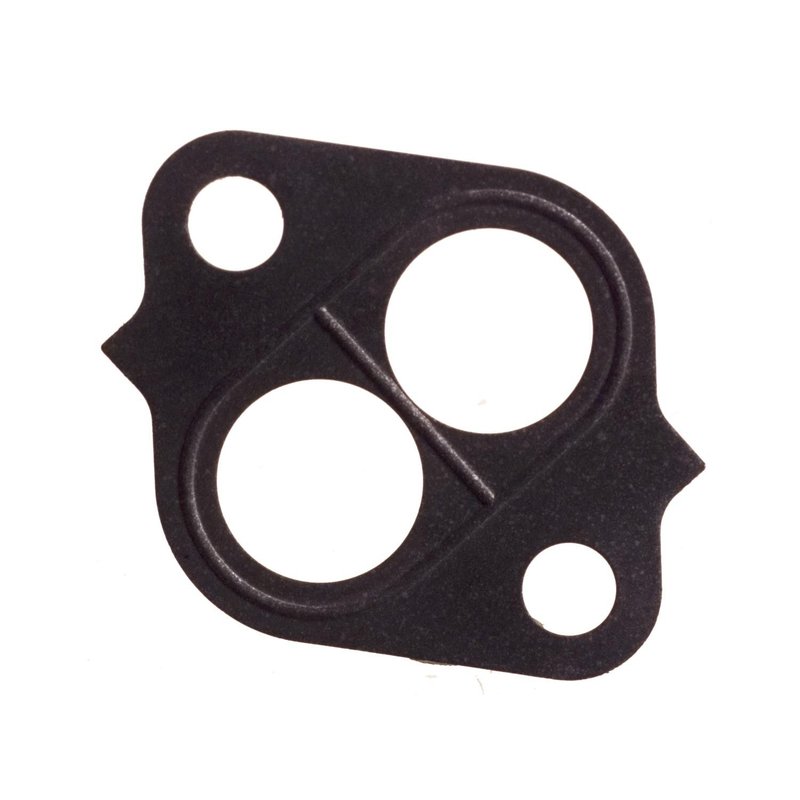

Standard Ignition VG79 EGR Valve Gasket
| Brand | Standard Ignition VG79 |
|---|---|
| Contents | 1 Gasket |
| Fits | Geo and Toyota · 13 vehicles |
Metal construction. Provides a durable sealing surface for the EGR valve gasket.
Two-bolt design. Matches a simple, secure gasket mounting pattern.
Ported gasket. Supports a tight seal between two ports.
Cross-references Standard Ignition VG79, 2-2606 and 3F1089 for the same application. See all 10.
Exhaust Gas Recirculation Valve Gasket for Select Toyota and Geo
Standard Ignition VG79 is a metal EGR valve gasket made for sealing the exhaust gas recirculation valve to the mating surface. It is built with a 1/16-inch thickness, two bolt holes, and dual ports to match the listed applications for a secure, serviceable seal.
Use this Standard Ignition VG79 gasket when replacing an EGR valve on select Toyota Corolla, Toyota Celica, and Geo Prizm applications. The compact metal construction and precise port layout support proper sealing in emission control service.
- Metal EGR valve gasket for emission control repairs
- Inner diameter: 0.79 in. (20.10 mm) at each opening
- Length: 2.59 in. (65.786 mm)
- Width: 2.12 in. (53.848 mm)
- Thickness: 1/16 in. (1.52 mm)
- Two bolt holes and two ports
- Pipe gasket not included
- Standard Ignition VG79 part number for direct reference
Detailed Fitment and Application
Compatible With 1995-1997 Geo Prizm, 1989 Geo Prizm, 1996-1997 Toyota Celica, 1996-1997 Toyota Corolla, and 1994-1995 Toyota Corolla with Federal Emissions. It also matches 1990 Geo Prizm applications with OE No. 25620-16120. Standard Ignition VG79 is a direct-fit EGR valve gasket for these listed vehicles, including Toyota Corolla and Geo Prizm service work where the original seal has worn or been removed.
This part cross-references 2-2606 and 3F1089 for the same application.
What This Gasket Helps Address
- Exhaust leaks at the EGR valve mounting surface
- Damaged or flattened original gasket material
- Improper sealing after EGR valve service
- Emission system fault conditions related to a leaking EGR joint
- Maintenance on select Toyota Corolla, Toyota Celica, and Geo Prizm models
Installation Notes and Quality Assurance
Clean both mating surfaces before installation and verify the bolt pattern, port alignment, and gasket orientation against the removed part. Confirm the vehicle’s emissions configuration, especially on 1994-1995 Toyota Corolla Federal Emissions applications, before ordering. Standard Ignition VG79 is a metal sealing gasket built for the listed EGR valve applications.
Standard Ignition is a recognized aftermarket brand for replacement electrical and engine management components, and this gasket follows the listed dimensional and fitment specifications for service use.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Geo | Prizm | — | — | N/A | — |
| 1997 | Toyota | Celica | 1.8L | L4 | N/A | — |
| 1997 | Toyota | Corolla | — | — | N/A | — |
| 1996 | Geo | Prizm | — | — | N/A | — |
| 1996 | Toyota | Celica | 1.8L | L4 | N/A | — |
| 1996 | Toyota | Corolla | — | — | N/A | — |
| 1995 | Geo | Prizm | 1.8L | L4 | N/A | — |
| 1995 | Toyota | Corolla | 1.6L | L4 | N/A | Compatible with vehicles equipped with Federal Emissions. |
| 1995 | Toyota | Corolla | 1.8L | L4 | N/A | Compatible with vehicles equipped with Federal Emissions. |
| 1994 | Toyota | Corolla | 1.6L | L4 | N/A | Compatible with vehicles equipped with Federal Emissions. |
| 1994 | Toyota | Corolla | 1.8L | L4 | N/A | Compatible with vehicles equipped with Federal Emissions. |
| 1990 | Geo | Prizm | 1.6L | L4 | N/A | OE No. 25620-16120 |
| 1989 | Geo | Prizm | — | — | N/A | — |
