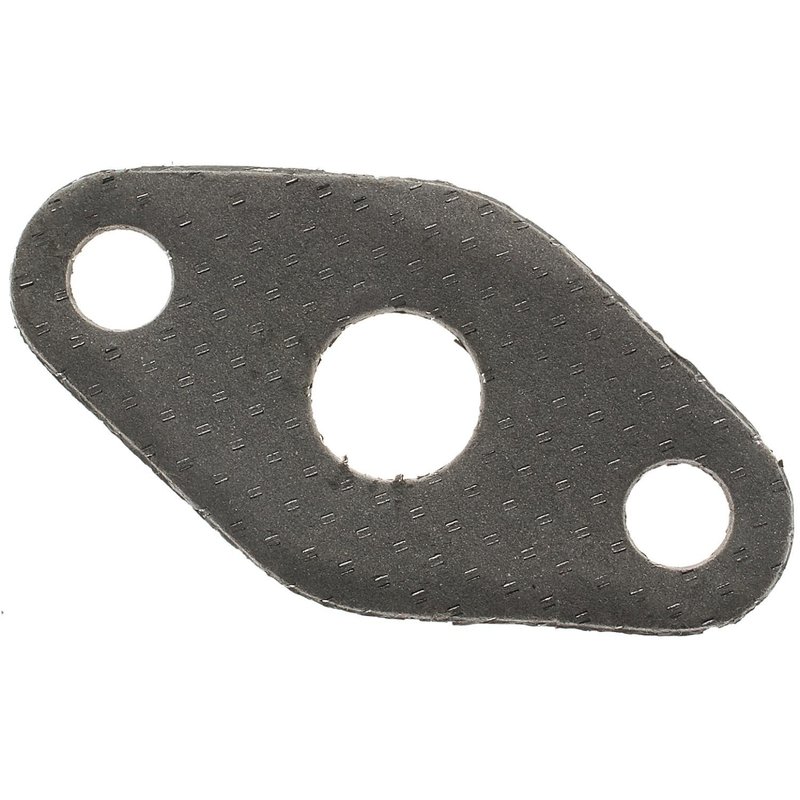

Standard Ignition VG80 EGR Tube Gasket - Inlet

Standard Ignition VG80 EGR Tube Gasket

The Standard Ignition VG80 is an exhaust gas recirculation tube gasket built for sealing EGR connections on a wide range of Chrysler, Dodge, Plymouth, and Ford applications. It is a metal EGR gasket with a 1/16-inch thickness and a single-port, two-bolt design for direct replacement service.

Key Features

• Part number: VG80
• Metal construction for EGR sealing applications
• Two bolt holes with one port
• Inner diameter: 0.56 in. (14.25 mm)
• Length: 2.82 in. (71.628 mm)
• Width: 1.48 in. (37.592 mm)
• Thickness: 1/16 in. (1.78 mm)
• Fits intake manifold to EGR tube and EGR valve gasket applications on select vehicles

Detailed Description

Standard Ignition VG80 is an exhaust gas recirculation tube gasket designed to seal the joint between the EGR tube, intake manifold, or EGR valve where listed in the fitment data. The metal gasket construction and compact two-bolt layout support a secure seal in emission control service, helping maintain proper exhaust gas recirculation flow on vehicles such as the Chrysler Pacifica, Dodge Grand Caravan, and Chrysler Town & Country. This part cross-references Dayco 72520 for the same application.

Fits 2007-2008 Chrysler Pacifica, w/ EGR Valve. Fits 2005-2006 Chrysler Town & Country, Intake Manifold to EGR Tube. Fits 2005-2006 Dodge Grand Caravan, EGR Valve Gasket applications- fits. The VG80 also covers additional Chrysler, Dodge, Plymouth, and Ford Federal Emissions applications across model years 1981-2008.

Common Problems This Part Can Address

• Exhaust leaks at the EGR tube or valve flange
• Failed sealing surface between the intake manifold and EGR tube
• Rough idle or drivability issues related to EGR leakage
• Emission system fault conditions caused by a damaged gasket
• Noise or soot traces around the EGR connection point

Installation Notes and Tips

Confirm the gasket shape, port count, bolt-hole spacing, and thickness before installation. Clean both mating surfaces thoroughly so the metal gasket can seat evenly, and inspect the EGR tube, valve, and manifold flange for warping or corrosion before reassembly. Verify the vehicle’s exact year, make, model, and EGR configuration against the fitment list, especially on Chrysler, Dodge, and Plymouth applications with w/ EGR Valve or Intake Manifold to EGR Tube notes.

Quality Assurance

Standard Ignition states that its EGR components are produced under complete quality control from component selection through finished product inspection. The VG80 is manufactured as an emission control sealing component for consistent service in listed applications.
