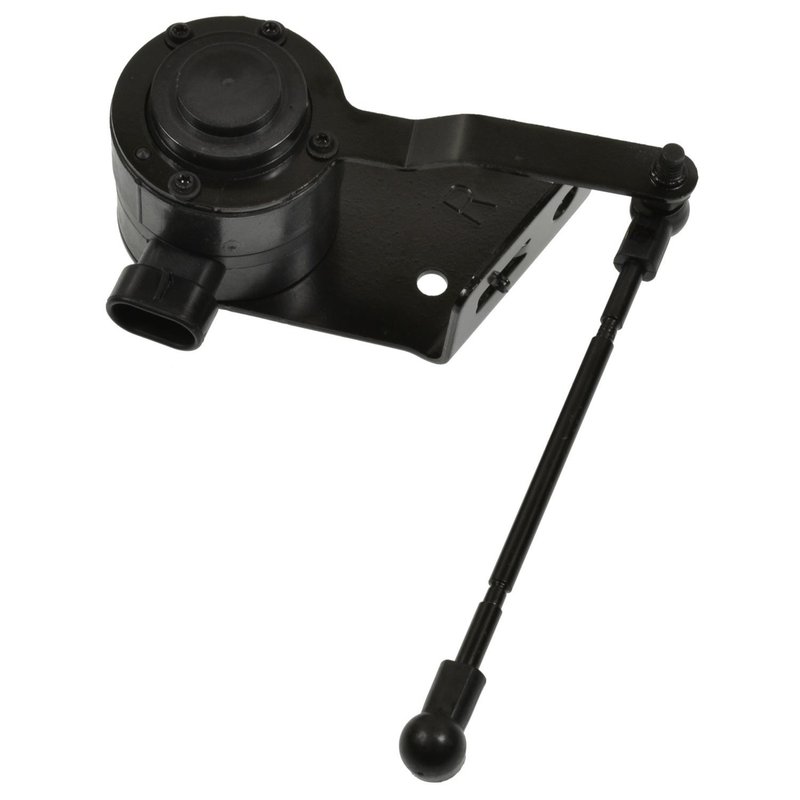

Standard Ignition VHS103 Suspension Ride Height Sensor - Front Right

Overview of Standard Ignition Suspension Ride Height Sensor VHS103

The Standard Ignition Suspension Ride Height Sensor VHS103 is designed to provide accurate suspension height data for select Cadillac, Chevrolet, and GMC vehicles. This sensor features a female rectangular plug-in connector with three male blade terminals, ensuring reliable electrical connections for optimal suspension system performance.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Rectangular
• Connector Type: Plug in
• Terminal Gender: Male
• Terminal Quantity: 3
• Terminal Type: Blade
• Part Number: VHS103

Detailed Product Description

The Standard Ignition Suspension Ride Height Sensor VHS103 is engineered to monitor the ride height of the suspension system accurately. It is compatible with a range of vehicles including Cadillac Escalade, Chevrolet Silverado 1500, and GMC Sierra 2500 HD models. The sensor’s female rectangular connector and three male blade terminals provide a secure and stable connection, minimizing signal loss and ensuring consistent data transmission to the vehicle’s suspension control module.

This sensor is essential for maintaining proper suspension calibration, which affects vehicle handling, ride comfort, and safety systems. The plug-in connector design simplifies replacement and reduces the risk of improper installation.

Applications and Common Issues Addressed

• Corrects inaccurate suspension height readings
• Resolves uneven ride height or vehicle sagging
• Prevents suspension warning lights on compatible Cadillac, Chevrolet, and GMC models
• Improves adaptive suspension system responsiveness
• Supports proper leveling for towing and load management

Installation Notes and Tips

When installing the Standard Ignition Suspension Ride Height Sensor VHS103, ensure the connector is fully seated to avoid intermittent electrical issues. Verify that the sensor is mounted securely in the original sensor location to maintain accurate ride height measurements. It is recommended to inspect the wiring harness for damage before installation to prevent future sensor faults.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The Suspension Ride Height Sensor VHS103 undergoes rigorous quality control testing to ensure proper fit and function. Warranty coverage details should be confirmed with the product documentation or supplier.
