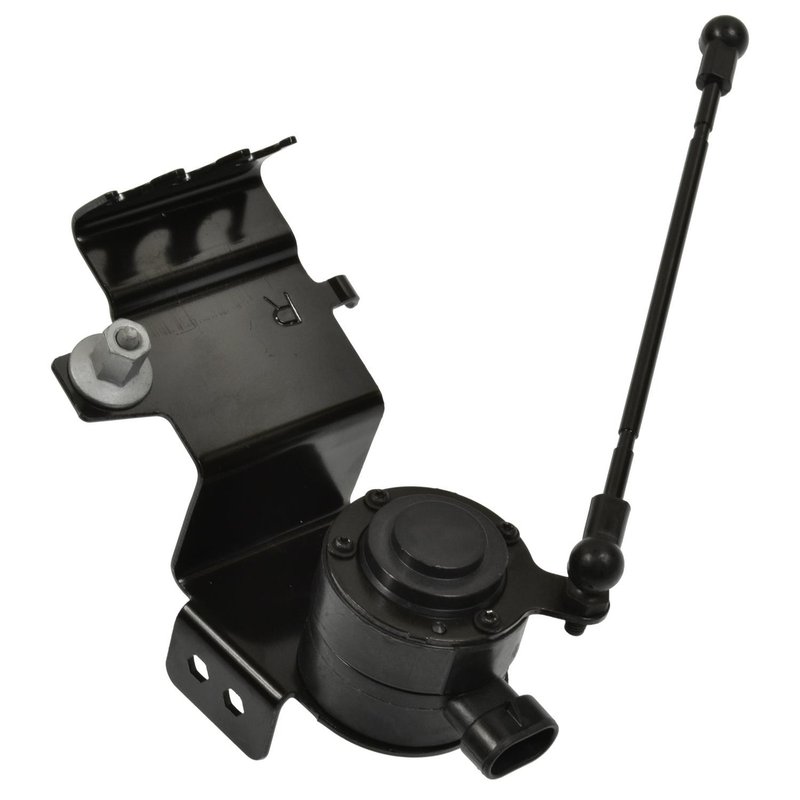

Standard Ignition VHS109 Suspension Ride Height Sensor - Front Right

Overview of Standard Ignition Suspension Ride Height Sensor VHS109

The Standard Ignition Suspension Ride Height Sensor VHS109 is designed to provide accurate suspension height data for select Buick and Cadillac models. This sensor features a female rectangular plug-in connector and a male blade terminal configuration, ensuring reliable electrical connections for optimal suspension performance.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Rectangular
• Connector Type: Plug in
• Terminal Gender: Male
• Terminal Quantity: 3
• Terminal Type: Blade
• Contents: Sensor only

Detailed Product Description

The Standard Ignition VHS109 suspension ride height sensor is engineered to monitor the vertical position of the vehicle’s suspension system. It is compatible with Buick DTS and Cadillac Lucerne models, providing precise ride height measurements that assist the vehicle’s suspension control module in maintaining proper ride quality and handling. The sensor’s female rectangular plug-in connector and three male blade terminals ensure a secure and stable electrical connection, minimizing the risk of signal loss or interference.

Compatible Vehicles and Applications

This suspension ride height sensor is specifically compatible with the following vehicles:

• Buick DTS
• Cadillac Lucerne

It is designed to replace the original equipment sensor, restoring accurate suspension height readings and supporting adaptive suspension systems where applicable.

Common Issues Addressed by the VHS109 Sensor

• Incorrect or fluctuating suspension height readings
• Uneven ride height or vehicle sagging
• Suspension warning lights or error codes
• Reduced suspension system responsiveness
• Compromised vehicle handling and stability

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before sensor replacement
• Disconnect the battery to prevent electrical shorts during installation
• Carefully unplug the female rectangular connector from the old sensor
• Verify the three male blade terminals are clean and undamaged before connecting
• Confirm proper sensor alignment and secure mounting to avoid inaccurate readings

Quality Assurance and Warranty

Standard Ignition parts, including the VHS109 suspension ride height sensor, are manufactured to meet or exceed OEM specifications. This sensor undergoes rigorous quality control testing to ensure durability and reliable performance. Warranty coverage details should be confirmed at the time of purchase, as they may vary by distributor.
