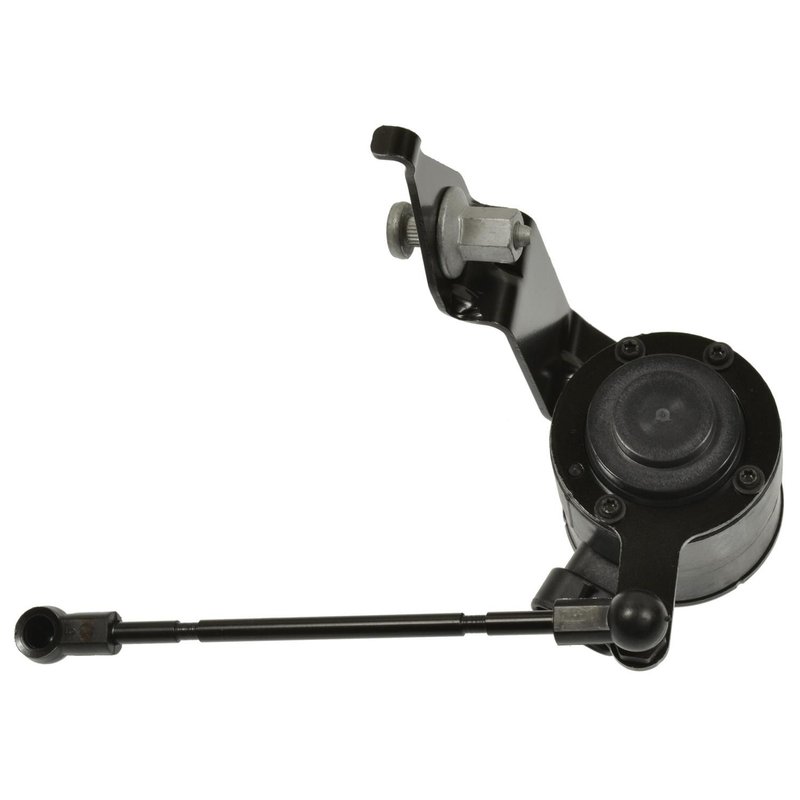

Standard Ignition VHS123 Suspension Ride Height Sensor - Front Left

Overview of Standard Ignition Suspension Ride Height Sensor VHS123

The Standard Ignition Suspension Ride Height Sensor VHS123 is designed to provide accurate suspension height data for Cadillac CTS, SRX, and STS models. This sensor features a female rectangular plug-in connector and a male blade terminal configuration, ensuring reliable electrical connections for optimal suspension performance.

• Connector Gender: Female
• Connector Quantity: 1
• Connector Shape: Rectangular
• Connector Type: Plug in
• Terminal Gender: Male
• Terminal Quantity: 3
• Terminal Type: Blade
• Contents: Sensor only

Detailed Product Description

The Standard Ignition VHS123 suspension ride height sensor is engineered to monitor the vertical position of the vehicle’s suspension system. It uses a single female rectangular plug-in connector with three male blade terminals, which facilitates a secure and stable electrical connection. This sensor is compatible with Cadillac CTS, SRX, and STS models, providing precise ride height data to the vehicle’s suspension control module. The sensor’s blade terminals are designed for durability and consistent signal transmission, which is critical for maintaining proper suspension adjustments and vehicle stability.

Common Applications and Issues Addressed

• Corrects inaccurate suspension height readings
• Resolves uneven ride height or vehicle sagging
• Prevents suspension warning lights on Cadillac CTS, SRX, and STS
• Improves adaptive suspension system responsiveness
• Eliminates sensor-related error codes in suspension diagnostics

Installation Notes and Tips

• Ensure the connector is fully seated to avoid intermittent signals
• Verify the sensor’s orientation matches factory specifications
• Inspect wiring harness for damage before installation
• Use appropriate tools to avoid terminal damage during connection
• Test sensor operation after installation to confirm proper function

Quality Assurance and Warranty

Standard Ignition parts undergo rigorous testing to meet OEM standards for fit, form, and function. The VHS123 suspension ride height sensor is backed by a limited warranty that covers defects in materials and workmanship, providing confidence in its reliability and performance for Cadillac CTS, SRX, and STS vehicles.
