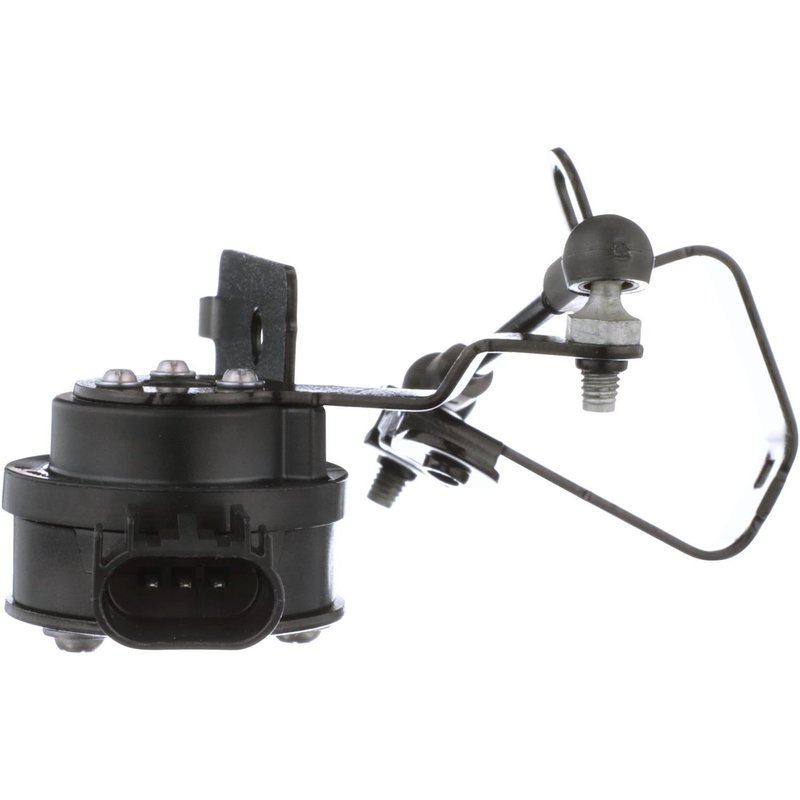

Standard Ignition VHS125 Suspension Ride Height Sensor - Rear Right

Overview of Standard Ignition Suspension Ride Height Sensor VHS125

The Standard Ignition Suspension Ride Height Sensor VHS125 is designed to provide accurate suspension height data for select Cadillac, Chevrolet, and GMC vehicles. This sensor ensures proper suspension system performance by delivering reliable ride height measurements.

• Bolt-on attachment method for secure installation
• Durable black finish for corrosion resistance
• Female oval plug-in connector with one connector
• Includes mounting bracket(s) for proper fitment
• Three male blade terminals for stable electrical connection
• Compatible with Cadillac Escalade, Escalade ESV, Chevrolet Tahoe, GMC Yukon, and Yukon XL

Detailed Product Description

The Standard Ignition VHS125 suspension ride height sensor features a bolt-on attachment method, allowing for straightforward and secure mounting on your vehicle's suspension system. Its black finish provides durability against environmental factors, helping maintain sensor integrity over time. The sensor is equipped with a single female oval plug-in connector, designed to interface seamlessly with the vehicle's wiring harness (note: wiring harness not included). It includes mounting brackets to ensure proper positioning and stability during operation. The sensor terminals are male blade type, with three terminals to facilitate accurate signal transmission.

Compatible Vehicles and Applications

This suspension ride height sensor is compatible with a range of full-size SUVs, including the Cadillac Escalade and Escalade ESV, Chevrolet Tahoe, and GMC Yukon and Yukon XL models. The part number VHS125 is specifically designed to meet the suspension sensor requirements of these vehicles, ensuring proper fit and function.

Common Issues Addressed by the Suspension Ride Height Sensor

• Incorrect suspension height readings causing uneven ride quality
• Faulty sensor signals triggering suspension warning lights
• Improper leveling of vehicle load affecting handling and safety
• Malfunctioning adaptive suspension systems due to sensor failure
• Inaccurate data impacting automatic headlight leveling and braking systems

Installation Notes and Tips

Installation of the Standard Ignition VHS125 sensor requires removal of the old sensor and mounting the new unit using the bolt-on method. Ensure the mounting brackets are properly aligned and securely fastened. Connect the female oval plug-in connector firmly to the vehicle’s wiring harness. Verify that the three male blade terminals are clean and free of corrosion before installation. Since the wiring harness is not included, use the existing harness from the vehicle. It is recommended to consult the vehicle’s service manual for specific torque specifications and sensor calibration procedures.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The VHS125 suspension ride height sensor undergoes rigorous quality control testing to ensure consistent operation. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary by region.
