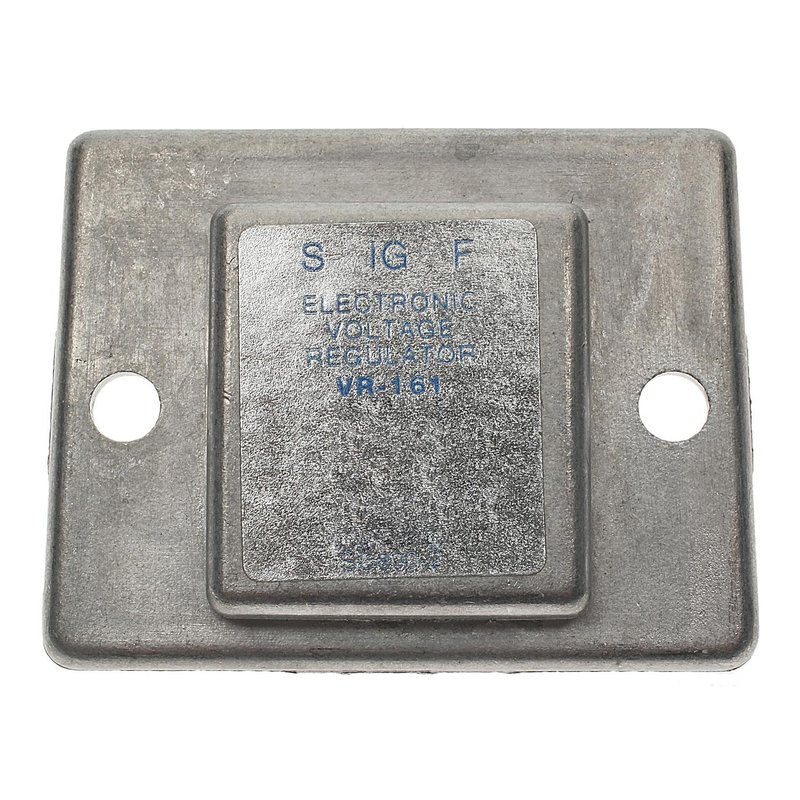

Standard Ignition VR-161 Voltage Regulator
| Brand | Standard Ignition VR-161 |
|---|---|
| Connector Gender | Male |
| Mounting Location | External |
| Terminal Gender | Female |
| Terminal Type | Screw |
| Fits | Toyota · 4 vehicles |
External voltage regulator. Controls charging system voltage with a 12-volt design.
Rectangular connector. Single male connector with three screw terminals for secure electrical connection.
Compact design. Small footprint fits neatly in charging system applications.
Cross-references Standard Ignition VR-161, 89058253 and 2770045020 for the same application. See all 6.
Charging System Voltage Regulator for Toyota Applications
Standard Ignition VR-161 is an external 12-volt charging system voltage regulator built for specific Toyota charging system applications. It uses a rectangular male connector with three female screw terminals and is sized for a direct-fit style replacement where the original regulator mounts externally.
Key Features
- Charging system voltage regulator for 12-volt electrical systems
- External mounting location for the specified Toyota applications
- Rectangular 1-connector design with male connector gender
- Three female screw terminals for secure electrical connection
- Compact housing dimensions: 61.214 x 48.768 x 24.638 mm
- Standard Ignition VR-161 replacement part number
Fitment Details
Fits 1978 Toyota Celica, Voltage Regulator Internal. Fits 1977-1978 Toyota Corona, Voltage Regulator Internal. Fits 1978 Toyota Cressida, Compatible with 60 Amp voltage regulator.
This part cross-references 89058253 and VR1045 for the same application.
Product Description
Standard Ignition VR-161 is a charging system voltage regulator for Toyota vehicles that require an external regulator configuration. It is specified for 12-volt systems and uses a rectangular connector layout with one male connector and three female screw terminals. For Toyota Celica, Toyota Corona, and Toyota Cressida applications, this regulator supports the charging system control needed to maintain proper alternator output and system voltage. The VR-161 part number is also referenced in interchange listings for service matching.
Common Issues This Part Addresses
- Charging voltage that is too high or too low
- Battery overcharging or undercharging conditions
- Charging warning light concerns related to regulator failure
- Unstable electrical output from the charging system
- Regulator-related charging system faults on external regulator setups
Installation Notes and Tips
Verify the vehicle uses an external voltage regulator and confirm connector shape, terminal style, and voltage before installation. Match the existing Toyota charging system layout to the regulator configuration shown here, especially on 1978 Toyota Celica, 1977-1978 Toyota Corona, and 1978 Toyota Cressida applications. No hardware, instructions, or mounting brackets are included.
Quality Assurance
Standard Ignition supplies this regulator as a service replacement component for the listed Toyota applications. Confirm part number VR-161 and compare the original connector and terminal arrangement before installation to ensure the correct match.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1978 | Toyota | Celica | 2.2L | L4 | N/A | Voltage Regulator Internal |
| 1978 | Toyota | Corona | — | — | N/A | Voltage Regulator Internal |
| 1978 | Toyota | Cressida | — | — | N/A | Compatible with 60 Amp voltage regulator. |
| 1977 | Toyota | Corona | — | — | N/A | Voltage Regulator Internal |
