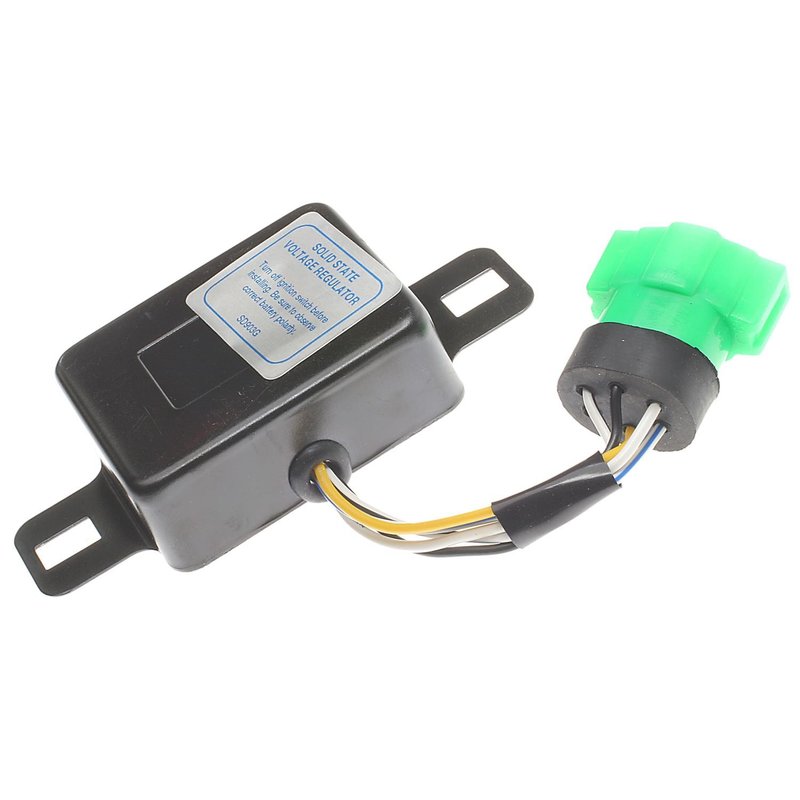

Standard Ignition VR-177 Voltage Regulator

Charging System Voltage Regulator for Toyota

Standard Ignition VR-177 is a 12-volt charging system voltage regulator for alternator-mounted applications. It is built with a flat bracket layout, a round female connector, and a 5-blade male terminal interface to match the specified Toyota charging system configuration.

Use this regulator when servicing a Toyota 4Runner or Toyota Pickup with the listed alternator setup. The VR-177 is a direct-fit electrical replacement for 1984 Toyota 4Runner and 1984 Toyota Pickup, and it also covers 1979-1983 Toyota Pickup models with the 5-blade terminal note for automatic transmission spark control relay applications.

Key Features

• Standard Ignition VR-177 charging system voltage regulator
• 12-volt regulator for alternator mounting
• 55 amp amperage rating
• Round female connector with 1 connector cavity
• 5 male blade terminals for the specified electrical interface
• Flat bracket design
• Compact size: 134.366 x 63.5 x 27.432 mm
• Direct replacement for select Toyota charging system applications

Detailed Description

The Standard Ignition VR-177 is a charging system voltage regulator designed for alternator installation in select Toyota vehicles. It is specified with a 12-volt system, 55 amp rating, a round female connector, and five male blade terminals, making it a focused replacement for the original electrical layout used on the listed applications. This part number, VR-177, is also referenced under interchange listings for related regulator applications, including Dayco 86099.

Compatible With 1984 Toyota 4Runner and 1984 Toyota Pickup, this regulator supports the charging system configuration used on those vehicles. It also applies to 1979-1983 Toyota Pickup models with the 5-blade terminal note for automatic transmission spark control relay. If you are searching for a Toyota Pickup voltage regulator or a Toyota 4Runner alternator regulator by part number VR-177, this listing matches the documented fitment and connector style.

What It Helps Address

• Charging voltage that is too high or too low
• Battery warning light concerns related to regulator failure
• Alternator output instability
• Electrical charging issues on select Toyota Pickup and 4Runner models
• Replacement needs for a worn or failed alternator-mounted regulator

Installation Notes and Tips

Install the VR-177 at the alternator location and verify the connector shape, terminal count, and blade style before replacement. Confirm the vehicle’s year, model, and the 5-blade terminal note on 1979-1983 Toyota Pickup applications before ordering. Because hardware and instructions are not included, reuse the existing mounting arrangement and follow the vehicle service manual for wiring verification and charging-system testing after installation.

Quality Assurance

Standard Ignition is a recognized aftermarket electrical parts brand with broad coverage in charging and starting components. The VR-177 is built to match the listed electrical specifications and documented Toyota fitment for a straightforward replacement selection.
