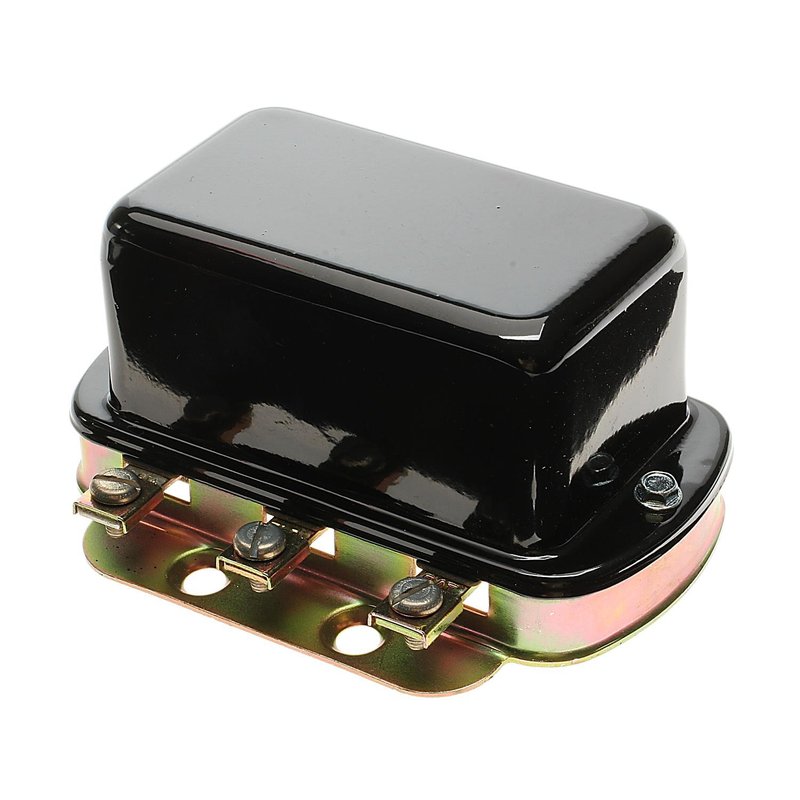

Standard Ignition VR-25 Voltage Regulator

Overview of Standard Ignition VR-25 Voltage Regulator

The Standard Ignition VR-25 Charging System Voltage Regulator is designed to maintain consistent voltage output in 12-volt automotive electrical systems. This external regulator features a female connector and three male terminals with screw and blade types, ensuring reliable connections in various vehicle applications.

• Connector Gender: Female for secure plug-in connection
• Mounting Location: External for easy access and replacement
• Terminal Gender: Male terminals for compatibility with standard wiring
• Terminal Quantity: 3 terminals to support proper voltage regulation
• Terminal Type: Combination of screw and blade terminals for versatile installation
• Voltage: 12 volts, suitable for most passenger vehicles

Detailed Product Description

The VR-25 voltage regulator by Standard Ignition is engineered to control the alternator's output voltage, preventing overcharging or undercharging of the vehicle's battery. Its external mounting location allows for straightforward inspection and replacement without disassembling the alternator. The female connector design ensures a secure and stable electrical connection, while the three male terminals with screw and blade types provide flexibility during installation. This 12-volt regulator is compatible with a range of automotive charging systems, making it a practical choice for maintaining electrical system stability in vehicles such as Chevrolet, Ford, and Dodge models that require external voltage regulation.

Common Applications and Issues Addressed

• Prevents battery overcharging that can damage battery life
• Eliminates undercharging issues that cause starting problems
• Resolves fluctuating dashboard voltage readings
• Corrects dim or flickering headlights due to voltage irregularities
• Addresses alternator output inconsistencies in external regulator systems

Installation Notes and Tips

• Ensure the vehicle’s ignition is off before installation
• Locate the external mounting point on the alternator or engine bay
• Disconnect the battery to avoid electrical shorts
• Match the female connector and male terminals carefully to avoid damage
• Tighten screw terminals securely but avoid over-tightening to prevent terminal damage

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The VR-25 voltage regulator undergoes rigorous quality control to ensure consistent voltage regulation. Warranty coverage details vary by distributor but typically include protection against defects in materials and workmanship for a specified period.
