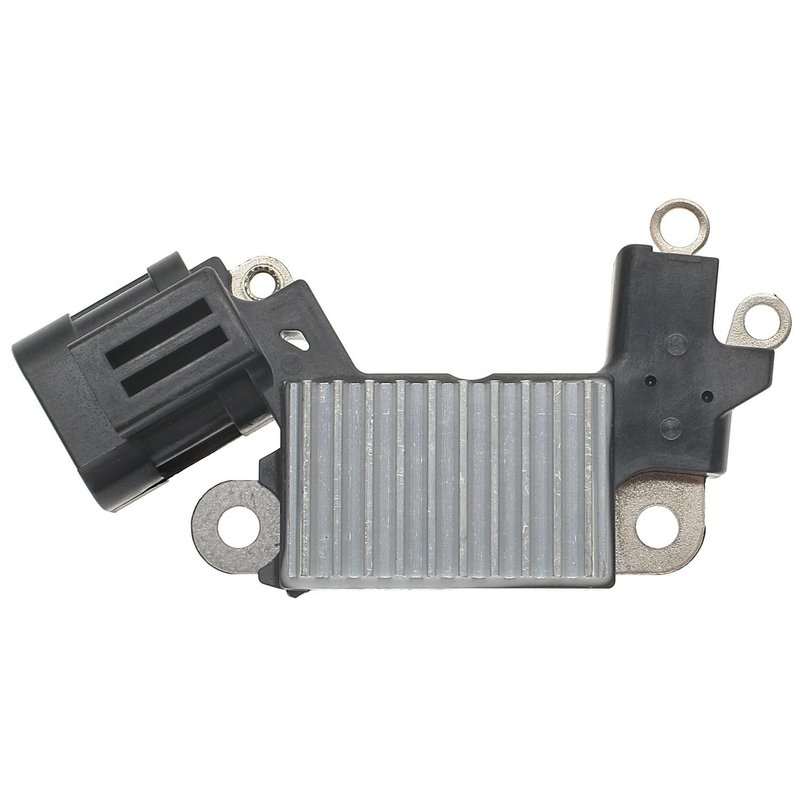

Standard Ignition VR-536 Voltage Regulator

Reliable Charging System Voltage Regulator for Nissan 200SX and Sentra

The Standard Ignition VR-536 Charging System Voltage Regulator is designed to maintain optimal voltage levels in your vehicle's charging system. Specifically engineered for Nissan 200SX and Sentra models, this regulator ensures consistent alternator performance and electrical system stability.

Key Features of the Standard Ignition VR-536 Voltage Regulator

• Connector Gender: Female with a single rectangular connector
• Compact dimensions: 96.52 x 45.212 x 25.654 mm (3.8 x 1.78 x 1.01 inches)
• Terminal configuration: 5 terminals with blade and eye ring types, male gender
• Mounting location directly on the alternator for precise fitment
• Designed for 12-volt electrical systems
• No additional hardware, mounting brackets, or instructions included

Detailed Description of the VR-536 Voltage Regulator

The VR-536 voltage regulator from Standard Ignition is a critical component in the electrical charging system of Nissan 200SX and Sentra vehicles. It controls the alternator output voltage to prevent overcharging or undercharging the battery, protecting sensitive electrical components. The regulator features a female rectangular connector and five male terminals, combining blade and eye ring types for secure electrical connections. Its compact size allows for easy installation directly on the alternator, matching OEM specifications for reliable performance.

Common Issues Addressed by the VR-536 Voltage Regulator

• Fluctuating or inconsistent battery voltage readings
• Battery not charging properly or draining quickly
• Dim or flickering dashboard lights and electrical accessories
• Alternator overcharging causing battery damage
• Electrical system malfunctions related to voltage regulation

Installation Notes and Tips

• Ensure the vehicle is turned off and battery disconnected before installation
• Locate the alternator mounting point for the voltage regulator on Nissan 200SX or Sentra
• Verify connector orientation: female rectangular connector with five male terminals
• Securely attach the regulator without additional hardware as none is included
• Test the charging system voltage after installation to confirm proper operation

Quality Assurance and Warranty Information

Standard Ignition manufactures the VR-536 voltage regulator to meet or exceed OEM standards for Nissan vehicles. While no specific hardware or mounting brackets are included, the part is engineered for direct alternator installation. Warranty coverage details should be confirmed with the point of purchase or manufacturer, ensuring confidence in product reliability and performance.
