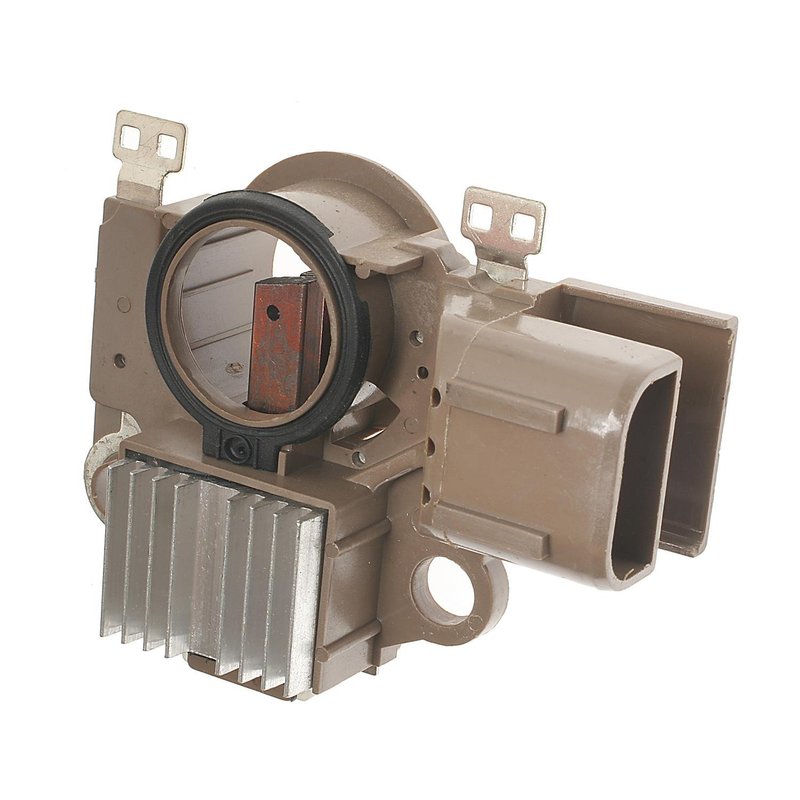

Standard Ignition VR-543 Voltage Regulator

Overview of Standard Ignition VR-543 Voltage Regulator

The Standard Ignition VR-543 is a charging system voltage regulator designed specifically for Ford and Lincoln vehicles, including the Mark VIII and Taurus models. This component ensures proper voltage control within the alternator, maintaining optimal electrical system performance.

• Connector Gender: Female
• Mounting Location: Alternator
• Terminal Gender: Male
• Terminal Quantity: 3
• Terminal Type: Blade terminals

Technical Details and Features

The VR-543 voltage regulator mounts directly on the alternator, providing precise voltage regulation to protect your vehicle's electrical components. It features a female connector and three male blade terminals, which facilitate secure and reliable electrical connections. The blade terminal design supports easy installation and ensures consistent contact under various operating conditions.

Compatible Vehicles and Applications

This voltage regulator is compatible with select Ford and Lincoln vehicles, specifically the Mark VIII and Taurus models. It is engineered to meet the electrical demands of these vehicles, helping to maintain battery health and prevent overcharging or undercharging issues.

• Regulates alternator output voltage
• Prevents battery overcharging
• Maintains stable electrical system voltage
• Reduces risk of alternator damage
• Supports consistent vehicle starting and operation

Installation Notes and Tips

When installing the Standard Ignition VR-543, ensure the alternator is clean and free of corrosion before mounting the regulator. The female connector and male blade terminals should be checked for secure fitment to avoid electrical faults. It is recommended to disconnect the battery before installation to prevent electrical shorts. Proper torque specifications should be followed to secure the regulator on the alternator.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications. The VR-543 voltage regulator undergoes rigorous testing to ensure durability and reliable performance in Ford and Lincoln vehicles. Please refer to Standard Ignition's warranty policy for specific coverage details.
