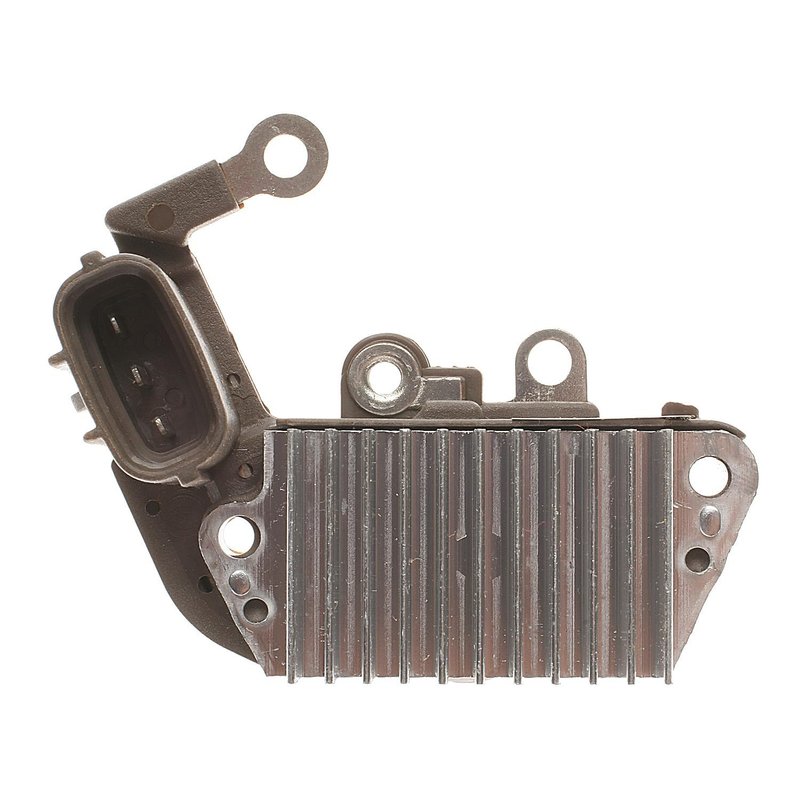

Standard Ignition VR-563 Voltage Regulator

Reliable Charging System Voltage Regulator for Toyota Paseo and Tercel

The Standard Ignition VR-563 Charging System Voltage Regulator is designed to maintain optimal voltage levels in your vehicle's alternator. Specifically engineered for Toyota Paseo and Tercel models, this regulator ensures consistent electrical performance and helps protect your vehicle's charging system.

• Compatible with Toyota Paseo and Tercel alternators
• Connector gender: Female with one rectangular connector
• Three male blade terminals for secure electrical connections
• Compact dimensions: 77.47 x 61.722 x 31.242 mm (3.05 x 2.43 x 1.23 inches)
• Operates at 12 volts, matching factory specifications
• Mounts directly on the alternator for easy installation

Product Details and Specifications

The VR-563 voltage regulator from Standard Ignition is a critical component in the electrical charging system of Toyota Paseo and Tercel vehicles. It features a single female rectangular connector and three male blade terminals, providing reliable and precise voltage regulation. The compact size allows it to fit neatly on the alternator without requiring additional mounting brackets or hardware, which are not included. This part operates at 12 volts, consistent with the original equipment specifications, ensuring proper alternator function and battery charging.

Common Applications and Problem Resolution

• Prevents overcharging or undercharging of the battery
• Eliminates flickering or dimming dashboard lights
• Resolves battery drain issues related to voltage irregularities
• Stops alternator warning lights caused by faulty voltage regulation
• Improves overall electrical system stability in Toyota Paseo and Tercel

Installation Notes and Tips

Installation of the Standard Ignition VR-563 voltage regulator is straightforward, as it mounts directly on the alternator. Ensure the vehicle's battery is disconnected before beginning installation to avoid electrical shorts. The part does not include hardware or instructions, so refer to the vehicle’s service manual for detailed guidance. Verify the connector orientation and terminal connections to match the original regulator for proper fit and function.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The VR-563 voltage regulator undergoes rigorous quality control to ensure durability and reliable performance in Toyota Paseo and Tercel vehicles. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in materials and workmanship.
