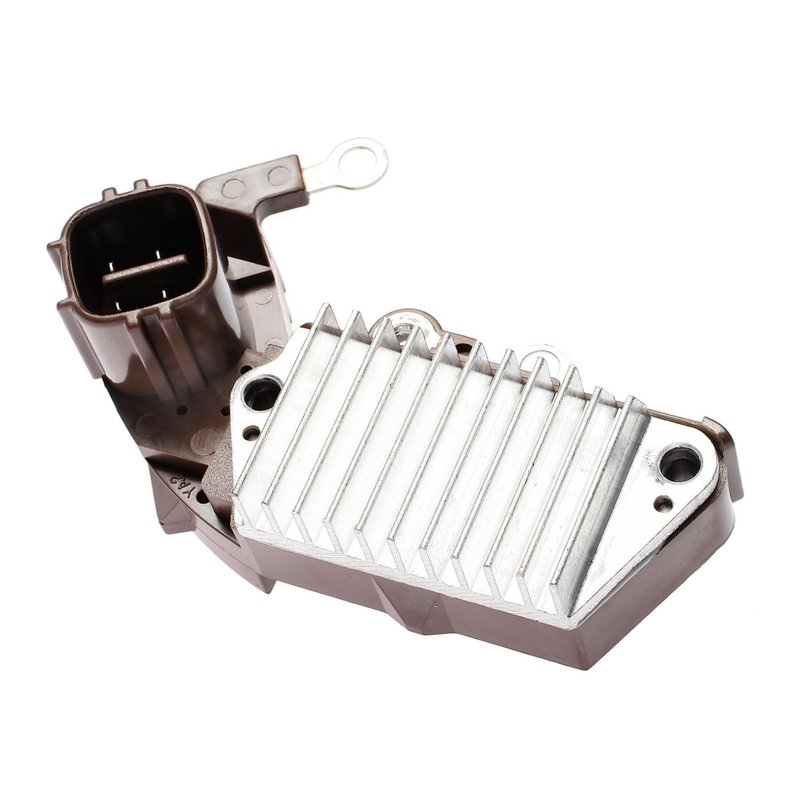

Standard Ignition VR-766 Voltage Regulator
| Brand | Standard Ignition VR-766 |
|---|---|
| Connector Gender | Female |
| Contents | Regulator |
| Mounting Location | Alternator |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Voltage | 12 |
| Fits | Acura · 5 vehicles |
Voltage regulator. Controls charging system output for steady 12-volt operation.
Square connector. Single female connector with four male blade terminals.
Compact regulator. Fits the alternator with a small 3.36 x 2.25 x 1.29 in. profile.
Cross-references Standard Ignition VR-766, 31150PRB003 and R2014 for the same application. See all 5.
Charging System Voltage Regulator for Acura RSX
Standard Ignition VR-766 is a 12-volt charging system voltage regulator that mounts on the alternator and uses a female square connector with four male blade terminals. It is built for 2002-2006 Acura RSX applications and supports direct replacement service for charging system repair.
Key Features
- 12-volt charging system voltage regulator
- Mounts on the alternator
- Female square connector with 1 connector interface
- 4 male blade terminals for electrical connection
- Compact regulator dimensions: 85.344 x 57.15 x 32.766 mm
- Standard Ignition VR-766 replacement part number
Detailed Description
Standard Ignition VR-766 is a charging system voltage regulator for the alternator assembly on 2002-2006 Acura RSX models. It is designed around the listed connector and terminal configuration, including a female square connector and four male blade terminals, to match the electrical interface used in the application. If you are servicing an Acura RSX charging system and need a replacement voltage regulator, VR-766 provides the specified 12-volt regulator format for this fitment.
This part cross-references Honda OE-style replacement numbers such as 31150PRB003 and R2014 for the same application. Standard Ignition VR-766 is also referenced by VR1074 and VR1163.
Common Repair Uses
- Charging voltage that is too high or too low
- Battery warning light related to regulator failure
- Alternator output instability
- Electrical system performance issues tied to voltage control
- Replacement of a worn alternator-mounted regulator on Acura RSX models
Installation Notes and Tips
Verify the alternator connector shape, terminal count, and mounting location before installation. This regulator does not include hardware, instructions, or mounting brackets, so reuse or source the required service components as needed. Confirm the vehicle is a 2002-2006 Acura RSX and match the electrical connector layout to the original part before replacing the regulator.
Quality Assurance
Standard Ignition supplies this voltage regulator as a cataloged replacement component for the specified Acura RSX application. Confirm part number VR-766 and the alternator-mounted configuration against the original unit before installation.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Acura | RSX | Type-S | N/A | — |
| 2005 | Acura | RSX | Type-S | N/A | — |
| 2004 | Acura | RSX | Type-S | N/A | — |
| 2003 | Acura | RSX | Type-S | N/A | — |
| 2002 | Acura | RSX | Type-S | N/A | — |
