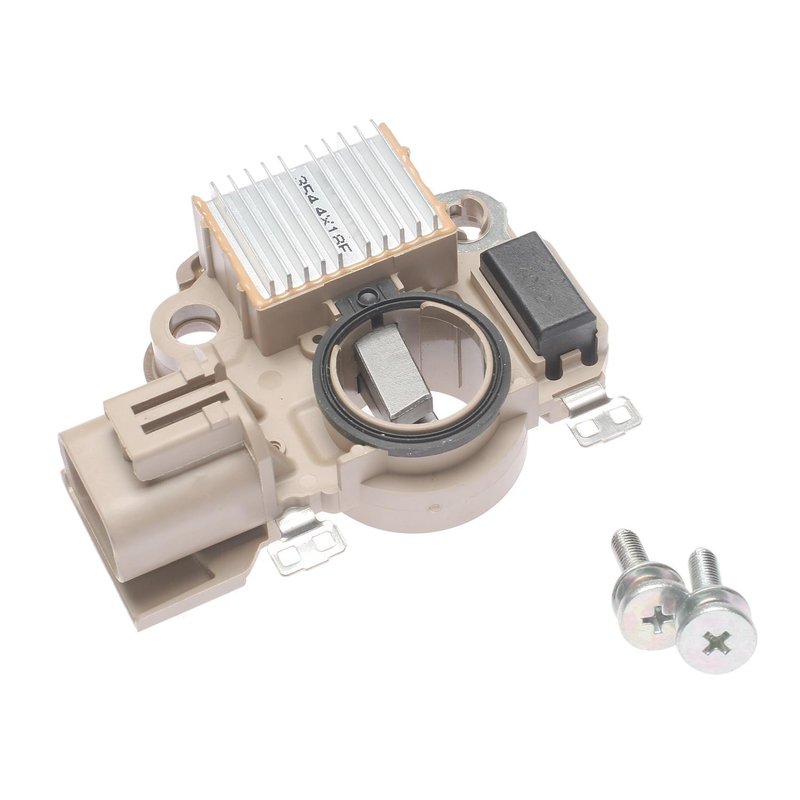

Standard Ignition VR-771 Voltage Regulator

Overview of Standard Ignition VR-771 Voltage Regulator

The Standard Ignition VR-771 is a charging system voltage regulator designed specifically for select Mazda vehicles. Engineered to maintain consistent 12-volt output, this regulator ensures reliable alternator performance for models including the Mazda 3, Mazda 5, Protege, Protege5, and RX-8.

• Compatible with Mazda 3, 5, Protege, Protege5, and RX-8 models
• 12-volt charging system voltage regulator
• Rectangular female connector with one connector quantity
• Two male blade terminals for secure electrical connection
• Compact dimensions: 88.392 x 72.898 x 29.718 mm (3.48 x 2.87 x 1.17 inches)
• Includes necessary hardware for installation
• Mounts directly on the alternator for optimal fit

Technical Details and Specifications

The VR-771 voltage regulator from Standard Ignition is designed to regulate the alternator's output voltage, preventing overcharging or undercharging of the vehicle's electrical system. It features a single rectangular female connector and two male blade terminals, ensuring a secure and reliable electrical connection. The compact size allows for easy mounting directly on the alternator, matching the original equipment specifications for Mazda vehicles. Hardware is included to facilitate installation, although mounting brackets and instructions are not provided.

Compatible Mazda Models and Applications

This voltage regulator is compatible with a range of Mazda vehicles, including the Mazda 3, Mazda 5, Protege, Protege5, and RX-8. It is designed to replace the original alternator voltage regulator in these models, maintaining proper charging system function and electrical stability.

• Prevents battery overcharging and electrical system damage
• Resolves issues with fluctuating or low voltage output
• Eliminates alternator warning lights related to voltage irregularities
• Restores proper charging system performance
• Addresses intermittent electrical failures caused by faulty regulators

Installation Notes and Tips

Installation of the Standard Ignition VR-771 voltage regulator requires removal of the alternator cover to access the existing regulator. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shock or damage. The included hardware should be used to secure the regulator firmly in place. Verify the connector orientation matches the original setup, and confirm all electrical connections are tight and corrosion-free. While instructions are not included, following the vehicle’s service manual is recommended for proper installation procedures.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The VR-771 voltage regulator undergoes rigorous quality control to ensure consistent voltage regulation and long service life. This part includes a limited warranty against defects in material and workmanship, offering peace of mind for professional and DIY repairs.
