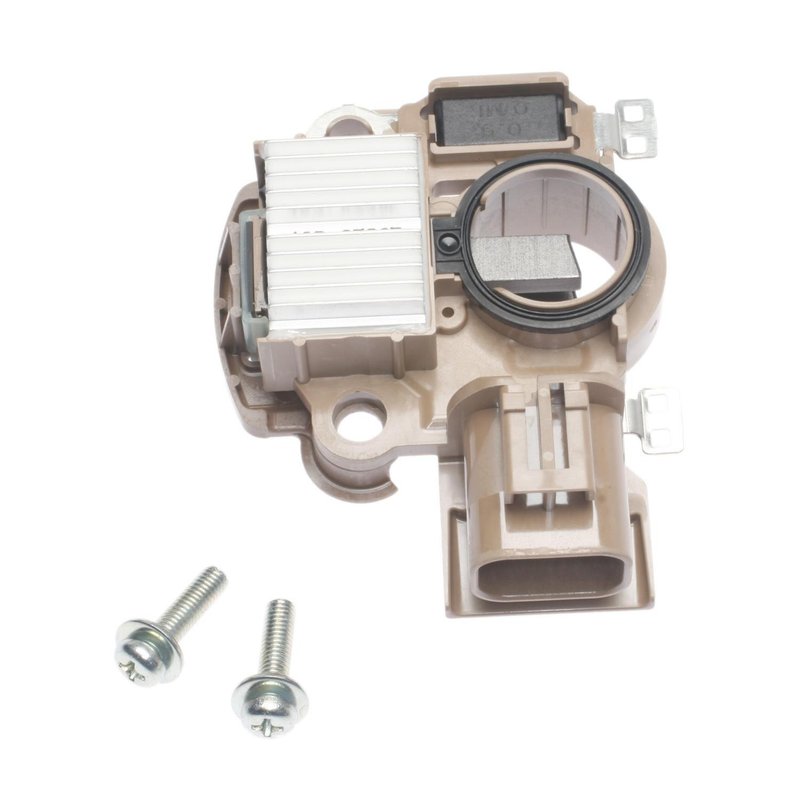

Standard Ignition VR-793 Voltage Regulator

Charging System Voltage Regulator for Mitsubishi

Standard Ignition VR-793 is a 12-volt charging system voltage regulator that mounts at the alternator and uses a rectangular female connector with two male blade terminals. It is built for direct replacement service on select Mitsubishi Diamante and Mitsubishi Montero applications, including 2004 Diamante and 2001-2003 Montero.

Key Features

• Charging system voltage regulator for alternator-mounted applications
• 12-volt design for regulated charging output
• Rectangular female connector with 1 connector interface
• 2 male blade terminals for electrical connection
• Hardware included for installation support
• Compact housing dimensions: 88.646 x 73.152 x 33.528 mm

Detailed Description

Standard Ignition VR-793 is a replacement alternator voltage regulator engineered for Mitsubishi charging system service. It is specified for 2004 Mitsubishi Diamante and 2001-2003 Mitsubishi Montero models, making it a focused solution for owners searching for a Mitsubishi Diamante voltage regulator or a Mitsubishi Montero alternator regulator by part number VR-793. This unit cross-references Mitsubishi MD619821 and aftermarket numbers such as R2041 for the same application.

As a charging system voltage regulator, this component helps control alternator output so the vehicle electrical system receives stable voltage during operation. The alternator-mounted design, rectangular connector shape, and blade-terminal layout support a direct-fit replacement approach when servicing the charging circuit on the listed Mitsubishi vehicles.

What It Helps Address

• Charging voltage that is too high or too low
• Battery warning light concerns related to regulator failure
• Unstable alternator output during driving
• Electrical system performance issues caused by inconsistent charging
• Replacement needs for a worn alternator-mounted regulator

Installation Notes and Tips

Verify connector style, terminal layout, and alternator mounting location before installation. Compare the original regulator dimensions and terminal configuration to Standard Ignition VR-793 to confirm match-up on the vehicle. Because instructions are not included, use the factory service procedure for the specific Mitsubishi Diamante or Mitsubishi Montero application.

Quality Assurance

Standard Ignition supplies electrical replacement components for charging and starting system service. This part is intended for the listed Mitsubishi fitments and should be matched to the vehicle’s alternator and connector configuration before installation.
