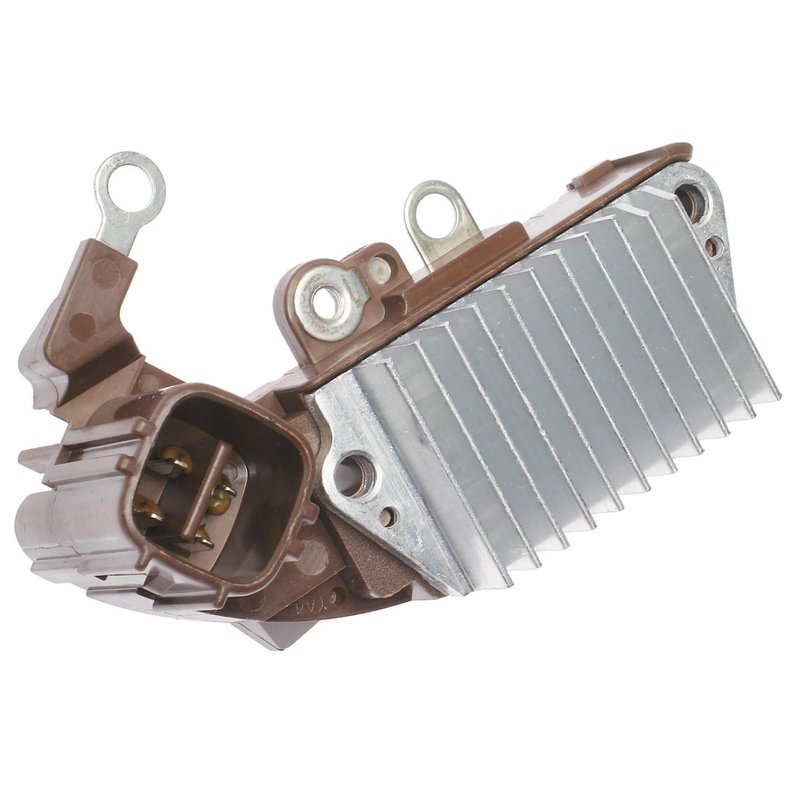

Standard Ignition VR-816 Voltage Regulator

Charging System Voltage Regulator for Toyota Tundra

Standard Ignition VR-816 is a 12-volt charging system voltage regulator that mounts on the alternator and helps control charging output in the vehicle electrical system. It is built with a female square connector and blade and eye ring terminals for the specified application.

Compatible With 2003-2006 Toyota Tundra charging system service needs, this regulator is a direct-fit option for alternator-mounted voltage regulation. Standard Ignition VR-816 is also referenced for Toyota Tundra electrical repair searches where the original regulator has failed.

Key Features

• Charging system voltage regulator for 12-volt applications
• Alternator-mounted design
• Female square connector with 1 connector interface
• Blade and eye ring terminal configuration
• Compact housing dimensions: 85.598 x 59.182 x 32.766 mm
• Contents include regulator only
• Cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application

Detailed Description

Standard Ignition VR-816 is a charging system voltage regulator engineered for 2003-2006 Toyota Tundra models. It is installed at the alternator and is used to manage charging voltage within the vehicle’s electrical system, helping maintain proper alternator output under normal driving conditions. The part number VR-816 is also useful when searching for Toyota Tundra alternator regulator replacement parts or OE-style charging system repair components.

This regulator uses a female square connector and a mixed terminal layout with blade and eye ring connections. Its compact size supports alternator-mounted service where space and connector style must match the original unit. Standard Ignition VR-816 is a practical choice for technicians and owners addressing charging system faults on the Toyota Tundra.

What It Is Used For

• Restoring stable alternator charging voltage
• Replacing a failed charging system voltage regulator
• Addressing battery warning light concerns tied to regulator failure
• Correcting overcharging or undercharging conditions
• Repairing electrical charging issues on 2003-2006 Toyota Tundra models

Installation Notes and Tips

Verify connector shape, terminal style, and alternator mounting location before installation. Standard Ignition VR-816 does not include hardware, instructions, or a mounting bracket, so reuse or source the required service components as needed. Confirm the alternator and charging system condition before replacing the regulator to avoid repeat repairs.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and engine management components. VR-816 is built for the specified 12-volt alternator application and should be matched to the vehicle’s original connector and terminal layout for proper service.
